VFID6362-UGC09661-BOK-20210418-VFID6406
Home
Previous (VFID6355-WISEAJ150138.57+015212.0-MOS-20110404-NGC5846_02)
Next (VFID6362-UGC09661-MOS-20110404-NGC5846_02)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID6362 | UGC09661 | 0.4.1 | 2026-06-30 | BOK | 20210418-VFID6406 | 1.70 | 1.70 | -- | 1.12 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

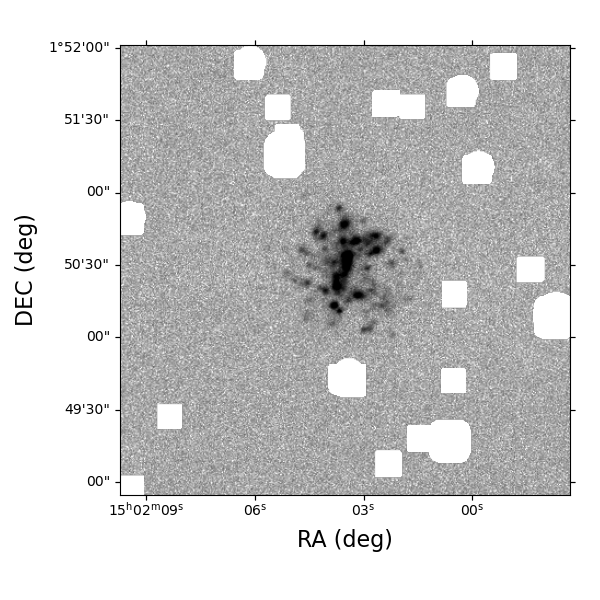

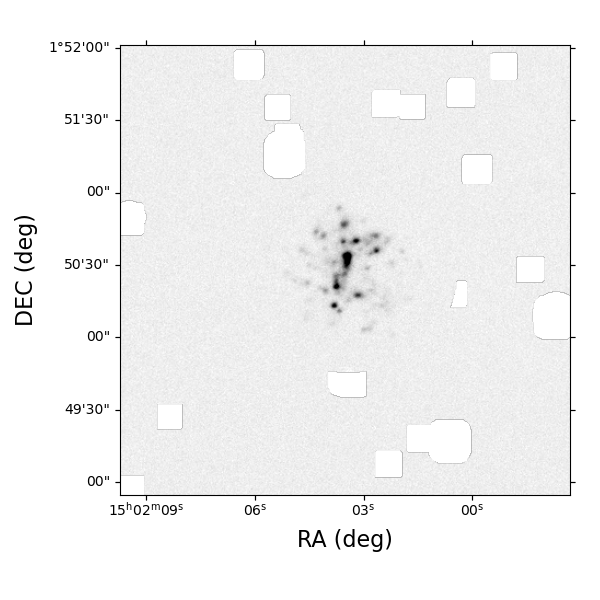

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.92 |
|---|
 |  |  |  | |

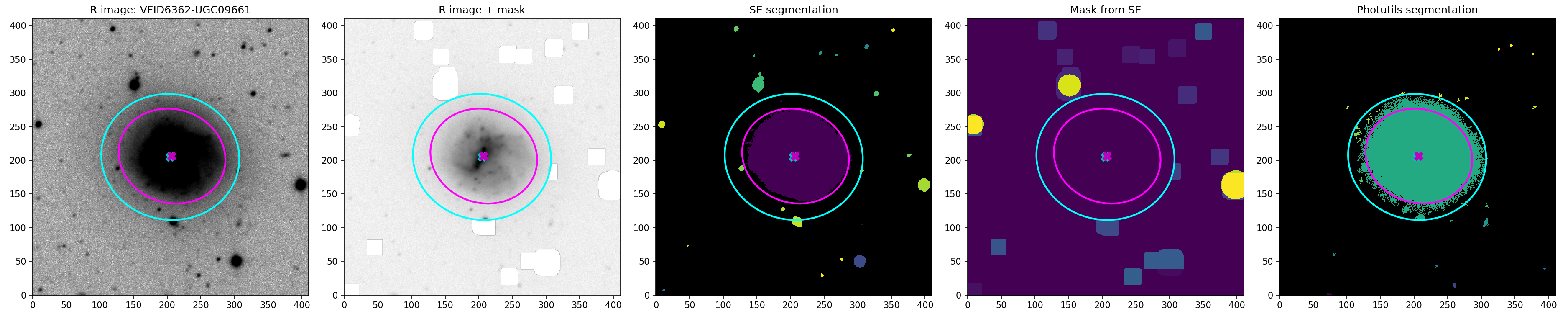

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.00 | 0.00 | ● | ● | ● | -- | -- | -- | 0.09 | 0.09 |
| HAPY Mask |
|---|
 |
Elliptical Photometry

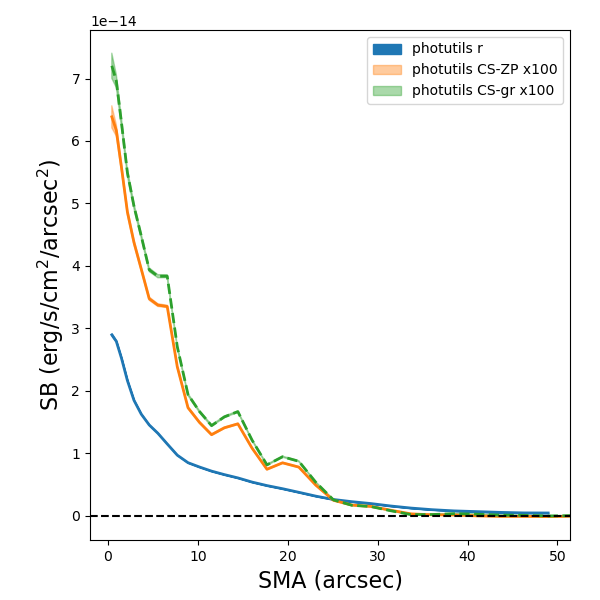

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 13.71 | 13.58 | 13.57 | 13.53 | 13.34 | 13.65 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 2.01e-13 | 1.75e-13 | 1.89e-13 | 2.02e-13 | 0.40 | 36.1 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 40 | 40 | 154 | 71 | ● | 1 | 0.03 | 0.84 | 0.25 | 0.39 | 0.45 | 1.82 | 0.15 | 4.5 | 10.7 | 26.1 | 1.5 |
| CS-GR | ok | 40 | 40 | 140 | 66 | ● | 1 | 0.03 | 0.84 | 0.26 | 0.39 | 0.46 | 1.84 | 0.14 | 4.6 | 10.7 | 26.1 | 1.5 |

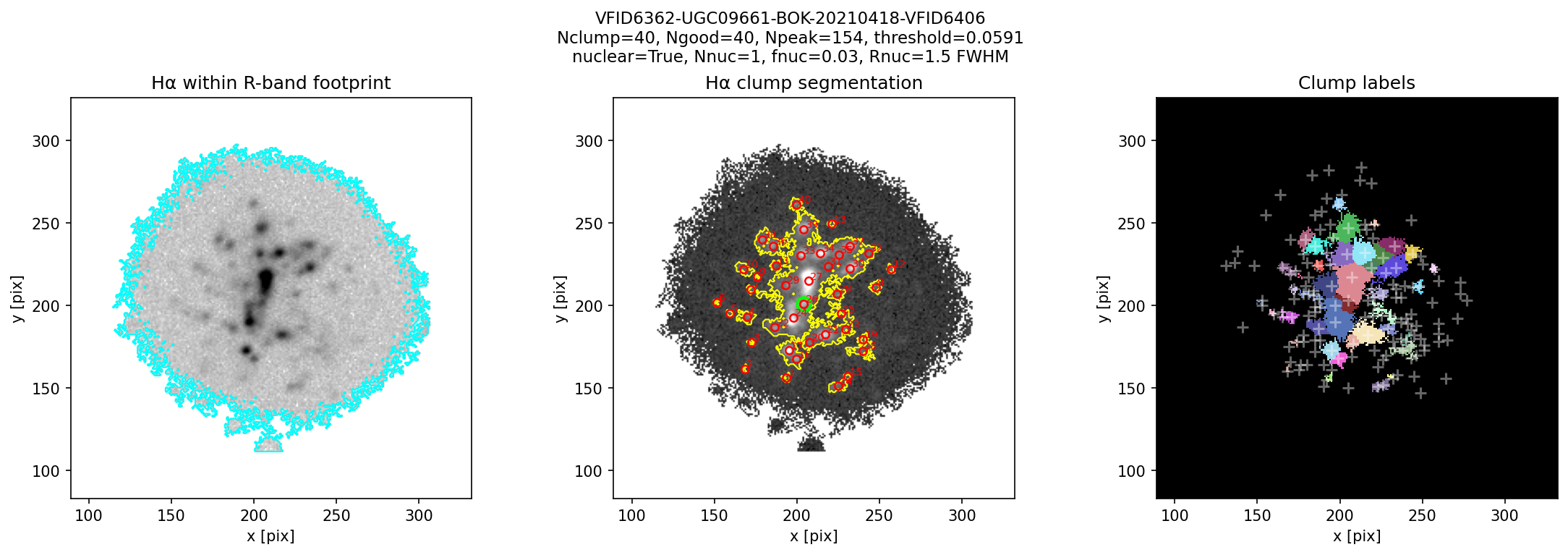

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.48 | -1.47 | 0.38 | -1.62 | 0.31 | 0.29 | 2.20 | ● |
| Hα | 0.51 | -1.31 | 0.92 | -1.16 | 1.59 | 0.40 | 1.73 | ● |
| CS-gr | -- | -1.32 | 0.90 | -1.16 | 1.69 | 0.41 | 1.76 | ● |

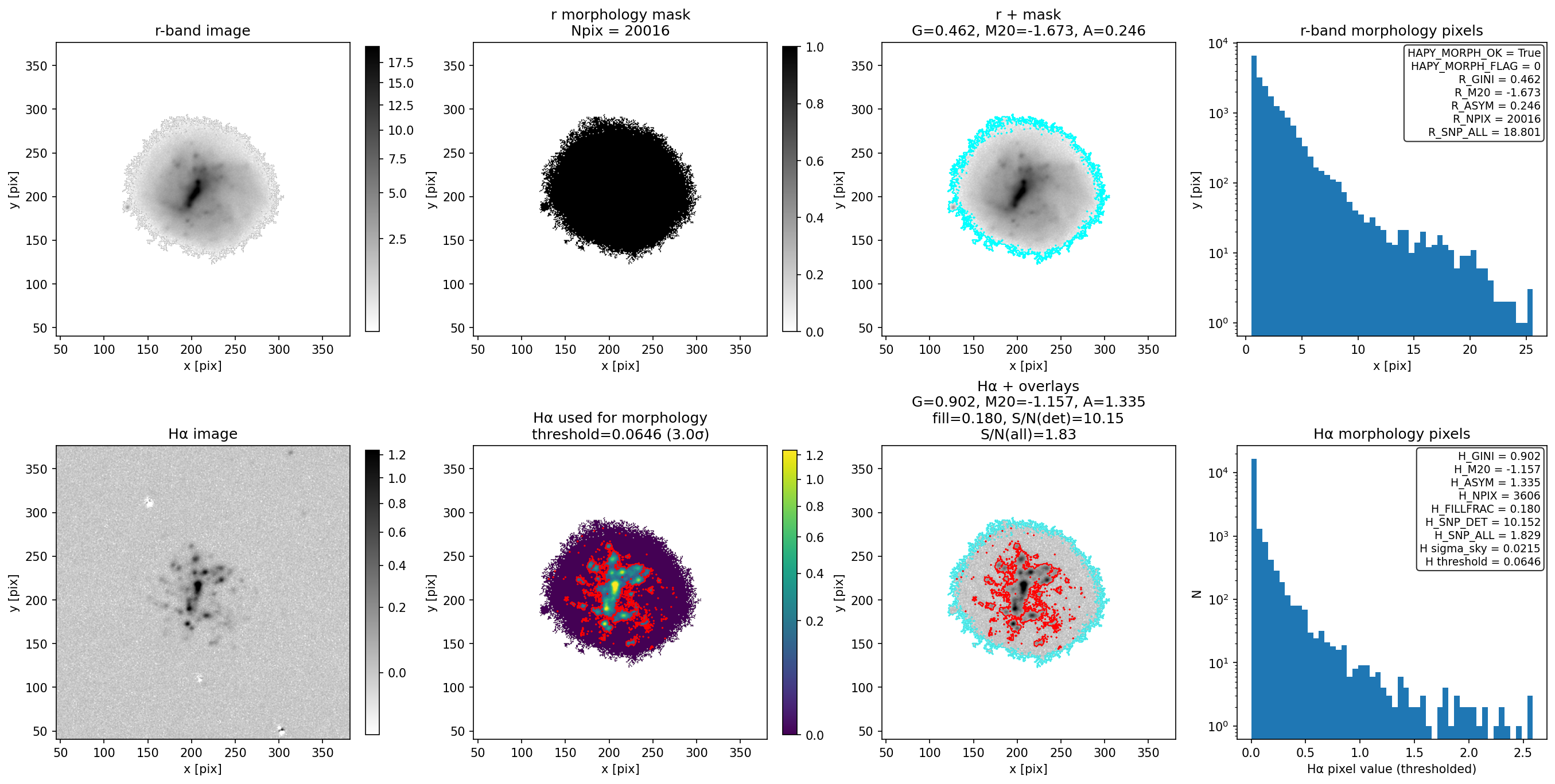

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID6362-UGC09661-BOK-20210418-VFID6406-R-hapy-morphology-diag.png
HAPY Morphology: VFID6362-UGC09661-BOK-20210418-VFID6406-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 209.63 | 205.96 | 0.50 | -1.65 | 2.72 | 0.18 | 0.02 | -- | 0 | 0 |
| Hα | 207.83 | 209.32 | 0.61 | -1.14 | 2.93 | 0.58 | 0.16 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID6362-UGC09661-BOK-20210418-VFID6406-R-statmorph-r.pdf
Hα statmorph: VFID6362-UGC09661-BOK-20210418-VFID6406-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 206.27 | 207.49 | 13.34 | -- | 1.49 | 0.80 | -34.1 | -0.07 | 4.38 | ● OK |
| CV | ● | 206.17 | 207.27 | 13.32 | -- | 1.54 | 0.80 | -34.3 | -0.07 | 4.47 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
