VFID6340-NGC5746-INT-20190209-p149
Home
Previous (VFID6338-SDSSJ150504.39+015751.7-MOS-20110404-NGC5846_01)
Next (VFID6341-WISEAJ150233.11+015608.0-BOK-20210418-VFID6406)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID6340 | NGC5746 | 0.4.1 | 2026-06-30 | INT | 20190209-p149 | 1.43 | 1.37 | -- | 1.06 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

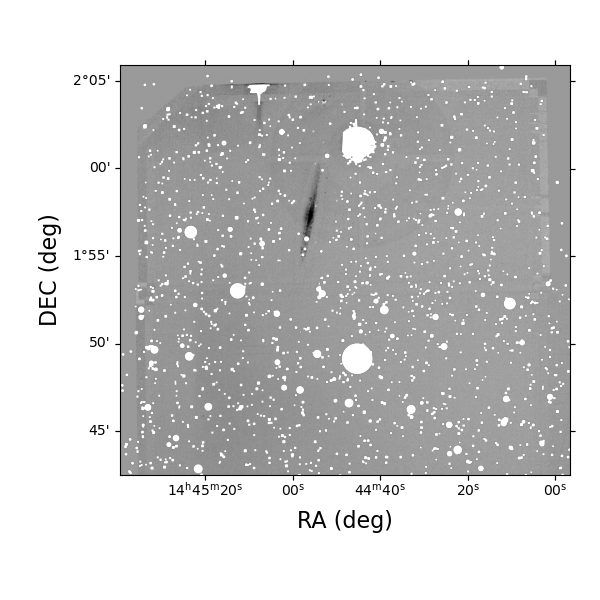

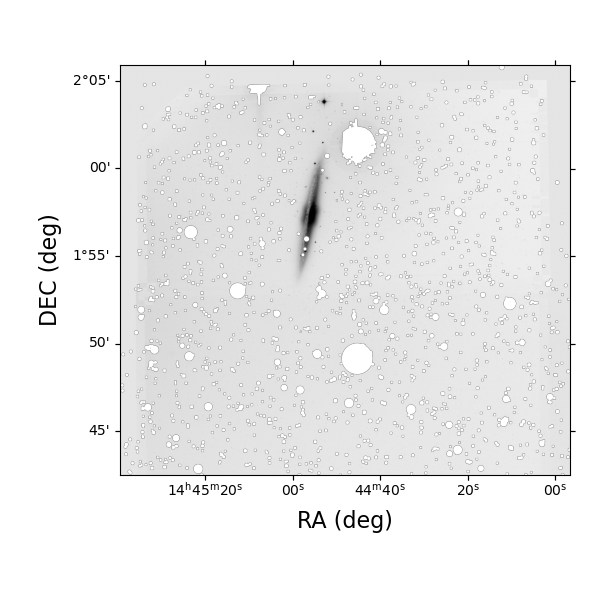

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.93 |
|---|
 |  |  |  | |

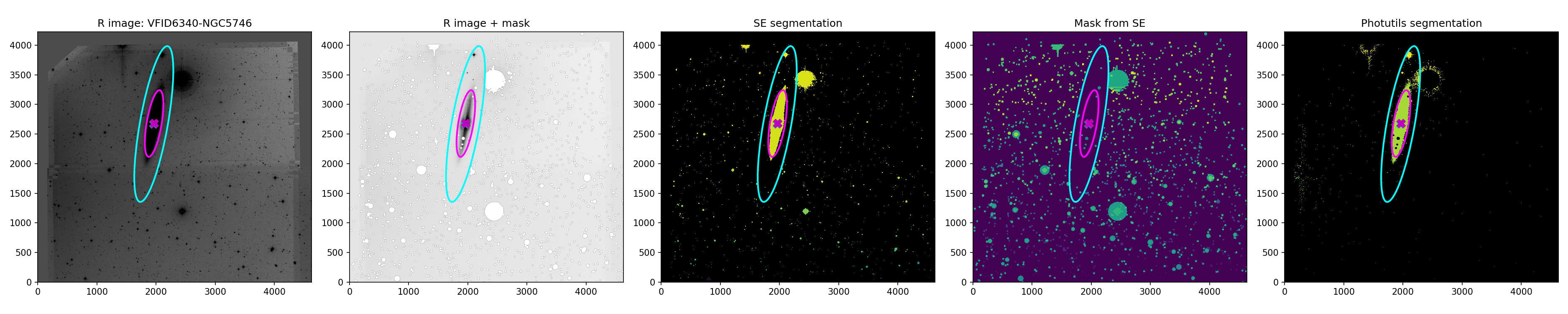

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.02 | 0.03 | ● | ● | ● | -- | -- | -- | 0.04 | 0.04 |

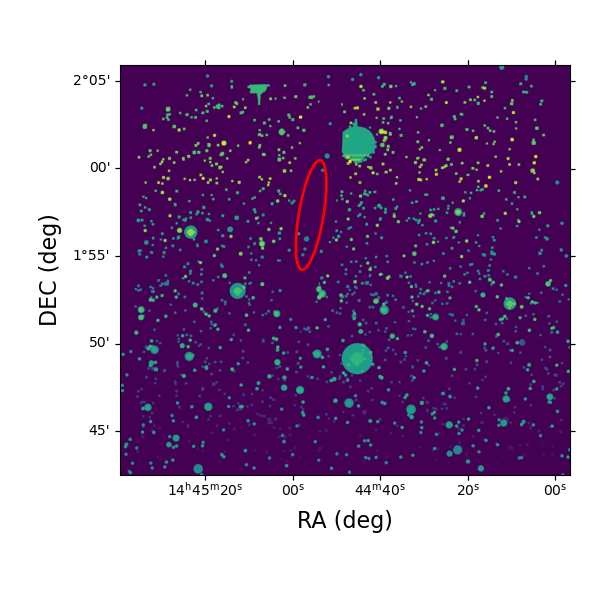

| HAPY Mask |
|---|
 |
Elliptical Photometry

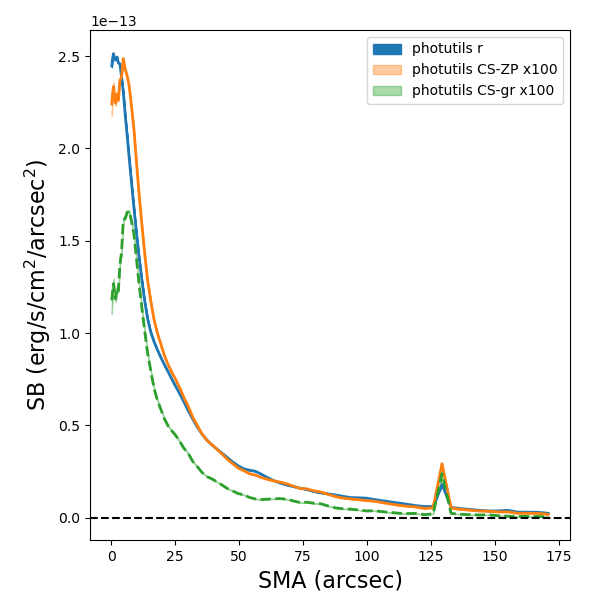

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| -- | -- | -- | -- | 10.07 | 10.27 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 2.54e-12 | 2.32e-12 | -- | -- | -- | 170.9 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 252 | 252 | 1818 | 1150 | ● | 1 | 0.36 | 0.62 | 0.36 | 0.47 | 0.55 | 3.43 | 0.12 | 2.0 | 35.0 | 178.3 | 1.5 |
| CS-GR | ok | 255 | 255 | 1554 | 688 | ● | 1 | 0.40 | 0.65 | 0.40 | 0.59 | 0.62 | 2.04 | 0.06 | 1.8 | 39.7 | 178.4 | 1.5 |

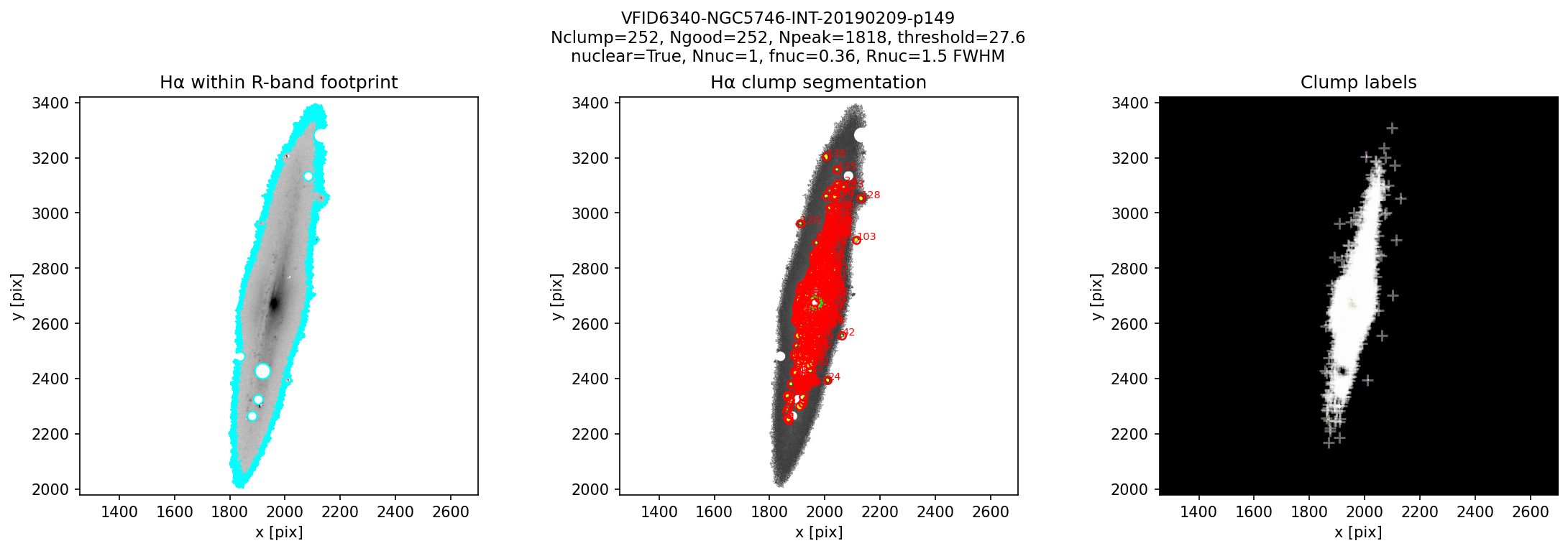

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.63 | -0.81 | 0.62 | -0.81 | 0.47 | -- | -- | ● |
| Hα | 0.49 | -0.74 | 0.68 | -0.71 | 0.94 | -- | -- | ● |
| CS-gr | -- | -0.69 | 0.94 | -0.23 | 2.15 | -- | -- | ● |

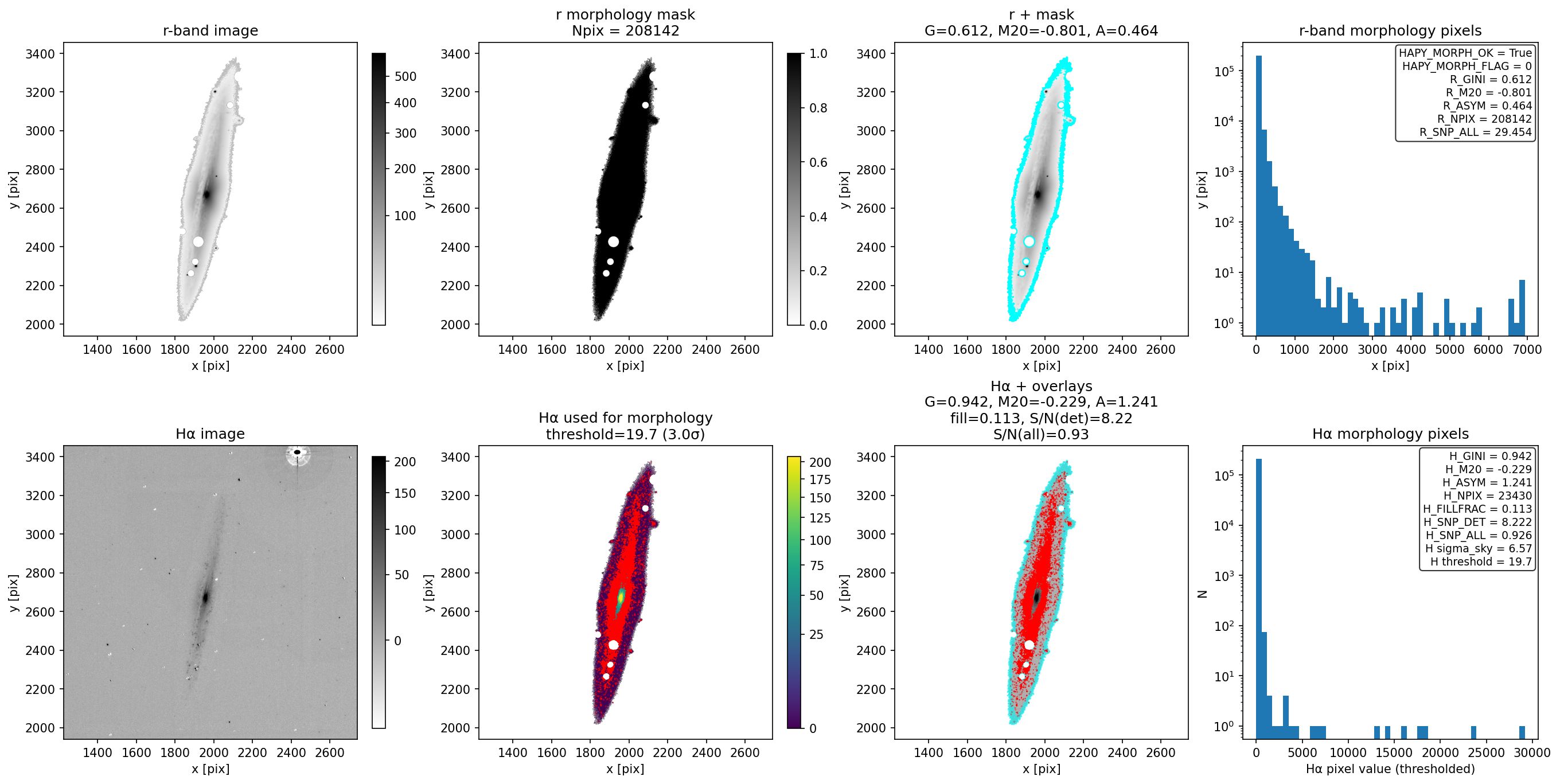

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID6340-NGC5746-INT-20190209-p149-R-hapy-morphology-diag.png
HAPY Morphology: VFID6340-NGC5746-INT-20190209-p149-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 1968.07 | 2680.13 | 0.68 | -2.13 | 3.79 | 0.33 | 0.09 | -- | 2 | 0 |
| Hα | 1962.40 | 2668.22 | 0.62 | -2.34 | 4.01 | 0.06 | 0.05 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID6340-NGC5746-INT-20190209-p149-R-statmorph-r.pdf
Hα statmorph: VFID6340-NGC5746-INT-20190209-p149-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 1966.56 | 2671.16 | 10.07 | -- | 2.20 | 0.30 | -10.2 | 0.03 | 112.60 | ● OK |
| CV | ● | -- | -- | -- | -- | -- | -- | -- | -- | -- | ● OK |
GALFIT r-band Modeling + Convolution
