VFID6175-CGCG047-085-INT-20190210-p140
Home
Previous (VFID6170-UGC09432-BOK-20220428-VFID6115)
Next (VFID6178-SDSSJ150808.43+025416.5-BOK-20210417-VFID6253)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID6175 | CGCG047-085 | 0.4.1 | 2026-06-30 | INT | 20190210-p140 | 1.34 | 1.41 | -- | 1.08 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

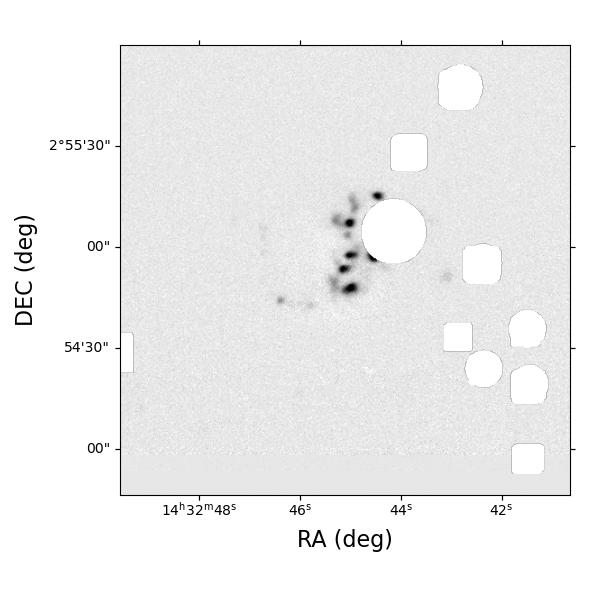

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.86 |
|---|
 |  |  |  | |

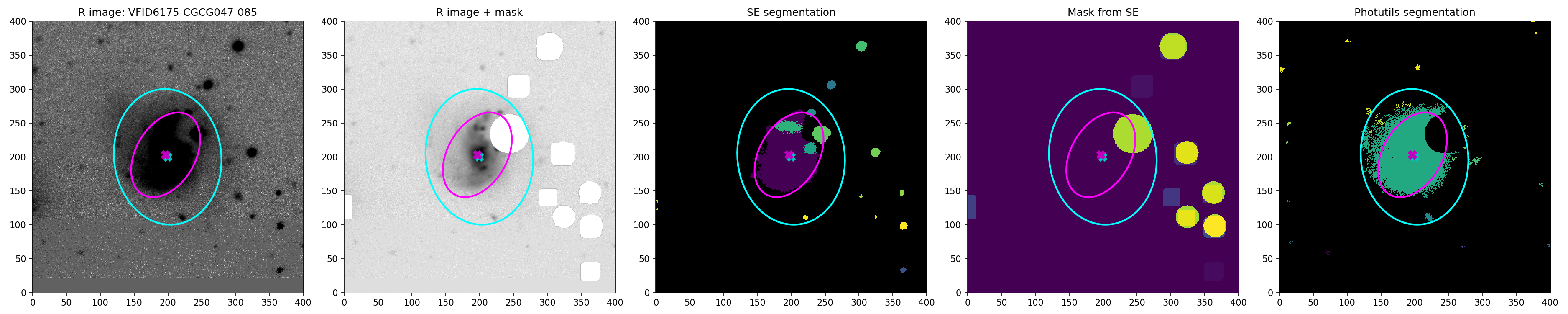

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.11 | 0.10 | ● | ● | ● | -- | -- | -- | 0.11 | 0.11 |
| HAPY Mask |
|---|
 |
Elliptical Photometry

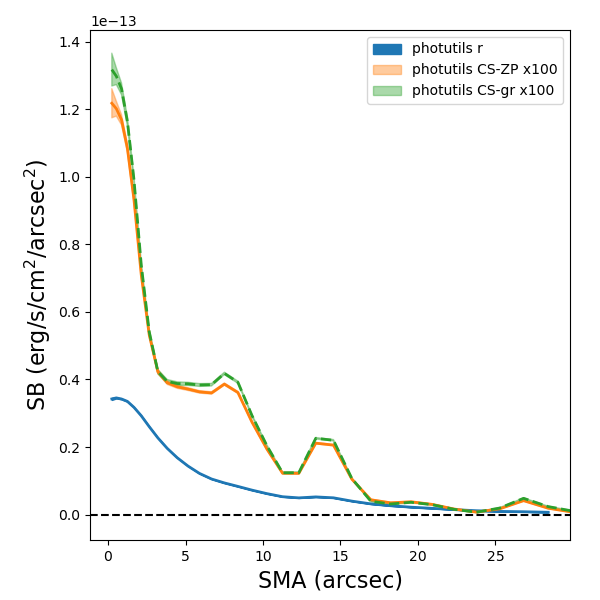

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 14.58 | 14.49 | 14.45 | 14.40 | 14.25 | 14.55 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 1.44e-13 | 1.18e-13 | 1.43e-13 | 1.37e-13 | 0.38 | 30.0 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 17 | 17 | 55 | 30 | ● | 1 | 0.13 | 0.96 | 0.19 | 0.33 | 0.47 | 1.40 | 0.21 | 5.9 | 9.5 | 24.0 | 1.5 |
| CS-GR | ok | 16 | 16 | 52 | 26 | ● | 1 | 0.12 | 0.99 | 0.20 | 0.33 | 0.46 | 1.42 | 0.19 | 5.9 | 9.7 | 24.0 | 1.5 |

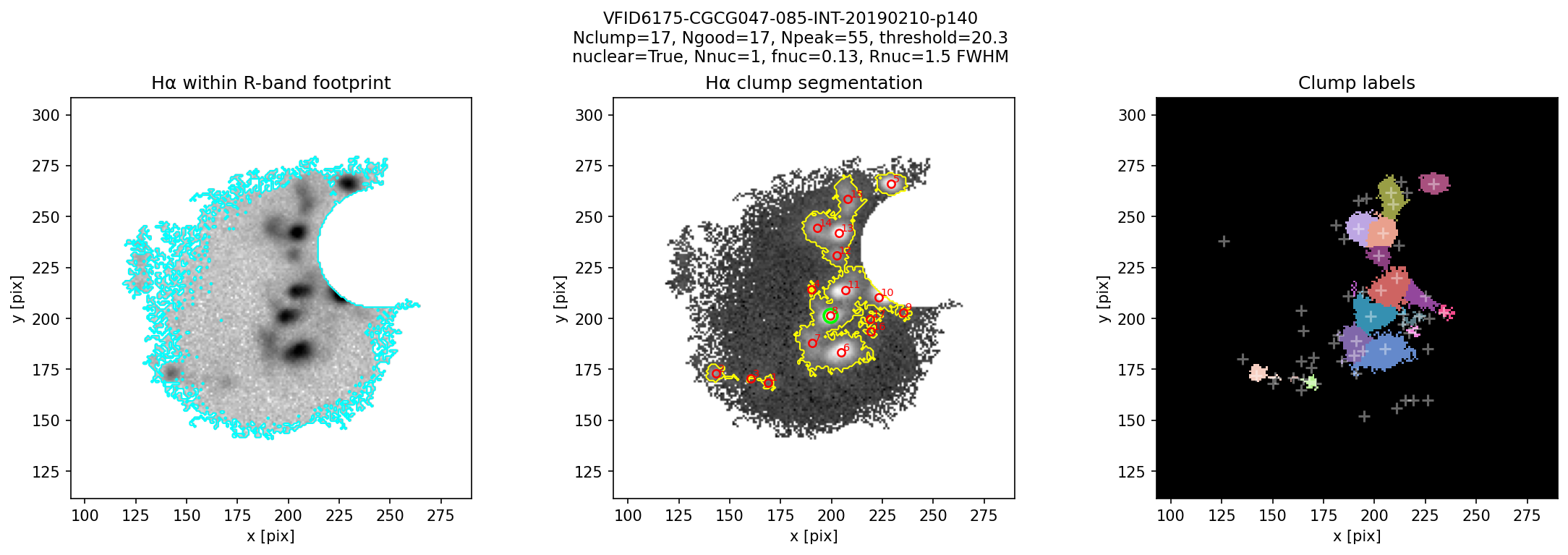

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.48 | -1.80 | 0.44 | -1.80 | 0.44 | 0.37 | 2.48 | ● |
| Hα | 0.50 | -0.84 | 0.77 | -0.77 | 1.89 | 0.38 | 5.27 | ● |
| CS-gr | -- | -0.84 | 0.86 | -0.74 | 2.06 | 0.39 | 2.62 | ● |
HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID6175-CGCG047-085-INT-20190210-p140-R-hapy-morphology-diag.png

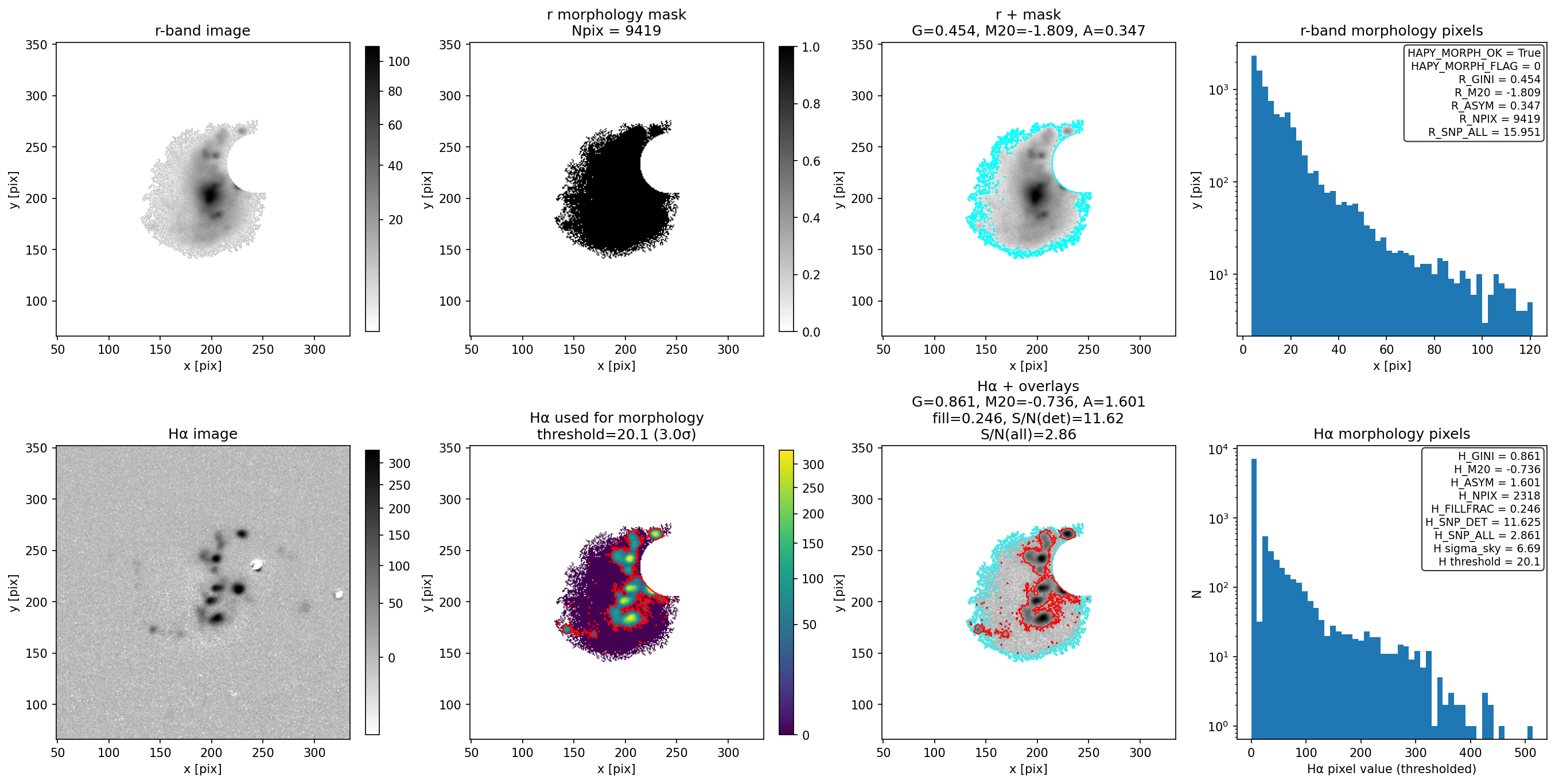

HAPY Morphology: VFID6175-CGCG047-085-INT-20190210-p140-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 196.76 | 203.06 | 0.56 | -1.80 | 3.18 | 0.19 | 0.00 | -- | 0 | 0 |
| Hα | 205.19 | 216.03 | 0.69 | -0.75 | 1.86 | 0.75 | 0.13 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID6175-CGCG047-085-INT-20190210-p140-R-statmorph-r.pdf
Hα statmorph: VFID6175-CGCG047-085-INT-20190210-p140-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 200.07 | 203.78 | 14.25 | -- | 1.48 | 0.64 | -0.3 | -0.09 | 3.30 | ● OK |
| CV | ● | 199.93 | 203.75 | 14.19 | -- | 1.71 | 0.63 | -0.2 | -0.15 | 3.25 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
