VFID6135-UGC09285-INT-20190209-p137
Home
Previous (VFID6130-UGC09310-MOS-20120423-NGC5846_07)
Next (VFID6135-UGC09285-MOS-20120423-NGC5846_07)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID6135 | UGC09285 | 0.4.1 | 2026-06-30 | INT | 20190209-p137 | 1.34 | 1.34 | -- | 1.04 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

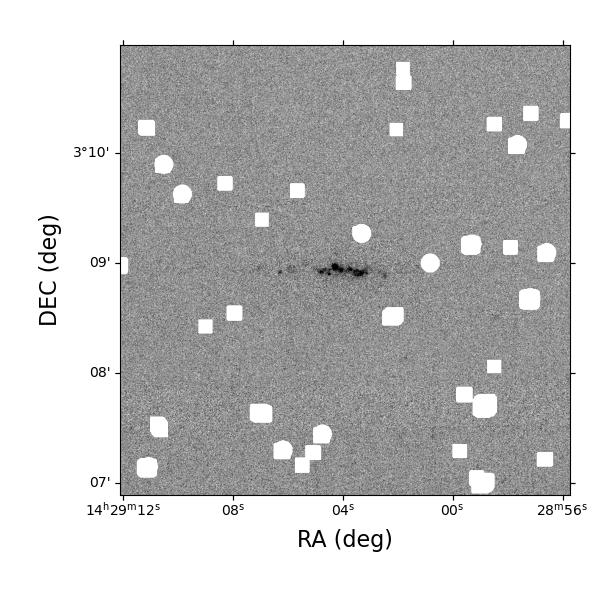

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.89 |
|---|
 |  |  |  | |

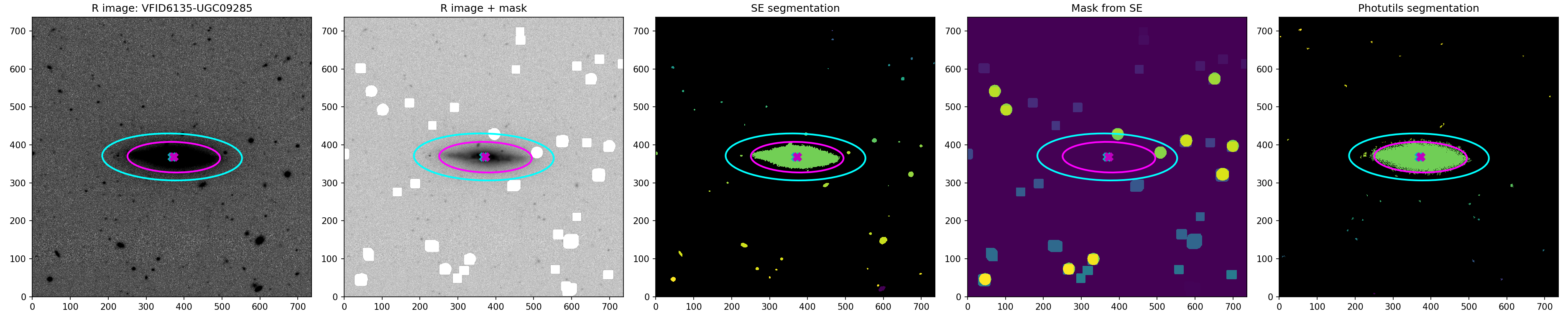

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.03 | 0.00 | ● | ● | ● | -- | -- | -- | 0.06 | 0.06 |
| HAPY Mask |
|---|
 |

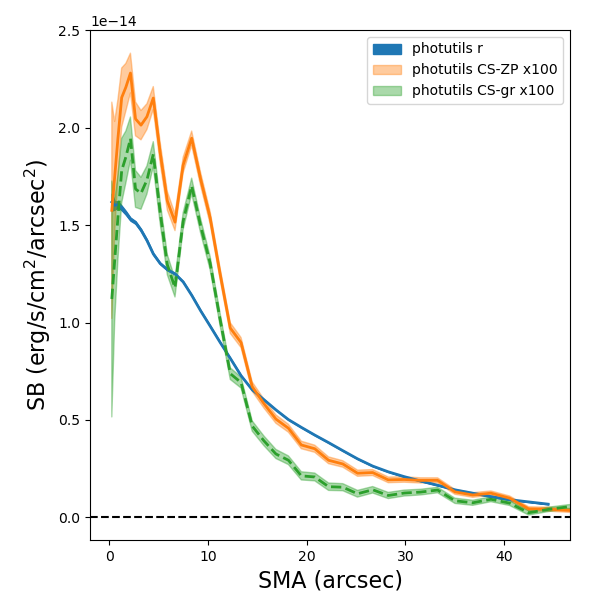

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 14.45 | 14.34 | 14.31 | 14.24 | 14.26 | 14.46 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 8.46e-14 | 3.45e-14 | 5.53e-14 | 6.13e-14 | 0.41 | 111.5 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 13 | 13 | 61 | 20 | ● | 1 | 0.03 | 0.33 | 0.36 | 0.48 | 0.60 | 2.90 | 0.04 | 5.8 | 6.3 | 35.6 | 1.5 |
| CS-GR | ok | 14 | 14 | 51 | 17 | ● | 1 | 0.01 | 0.38 | 0.42 | 0.53 | 0.64 | 3.62 | 0.03 | 5.8 | 6.5 | 35.6 | 1.5 |

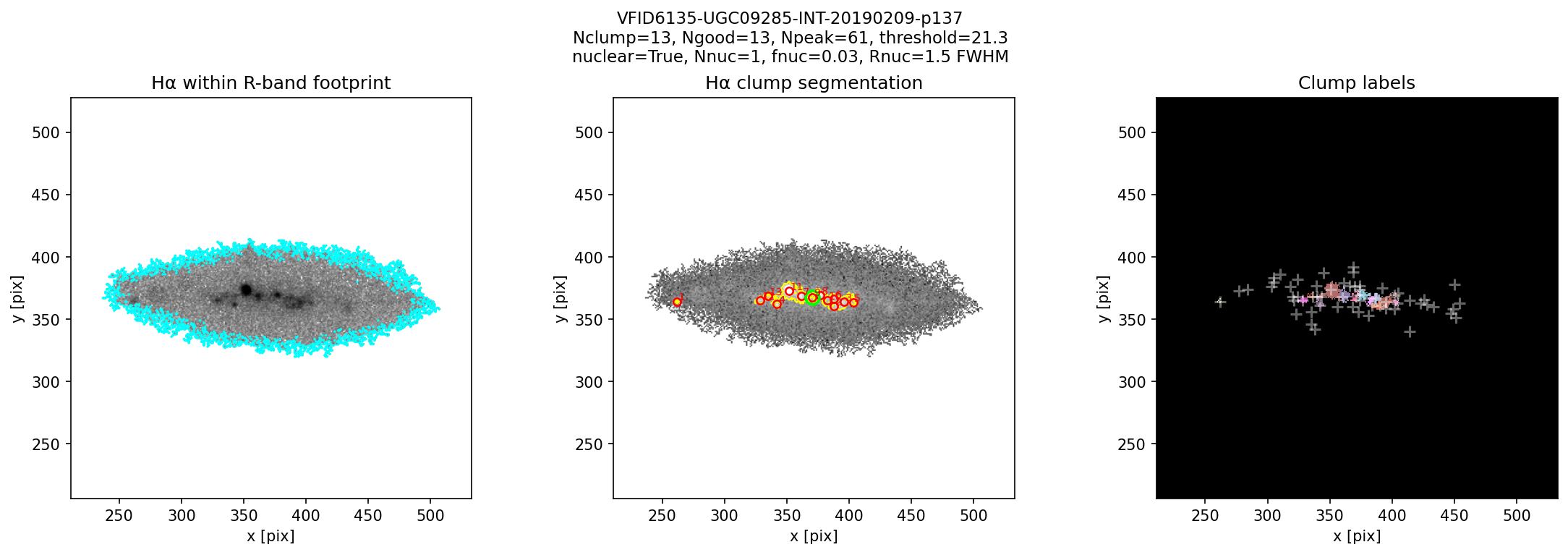

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.43 | -1.66 | 0.38 | -1.65 | 0.18 | 0.31 | 2.39 | ● |
| Hα | 0.30 | -1.44 | 0.62 | -1.38 | 1.83 | 0.41 | -- | ● |
| CS-gr | -- | -1.39 | 0.96 | -1.05 | 3.10 | 0.47 | -- | ● |
HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID6135-UGC09285-INT-20190209-p137-R-hapy-morphology-diag.png

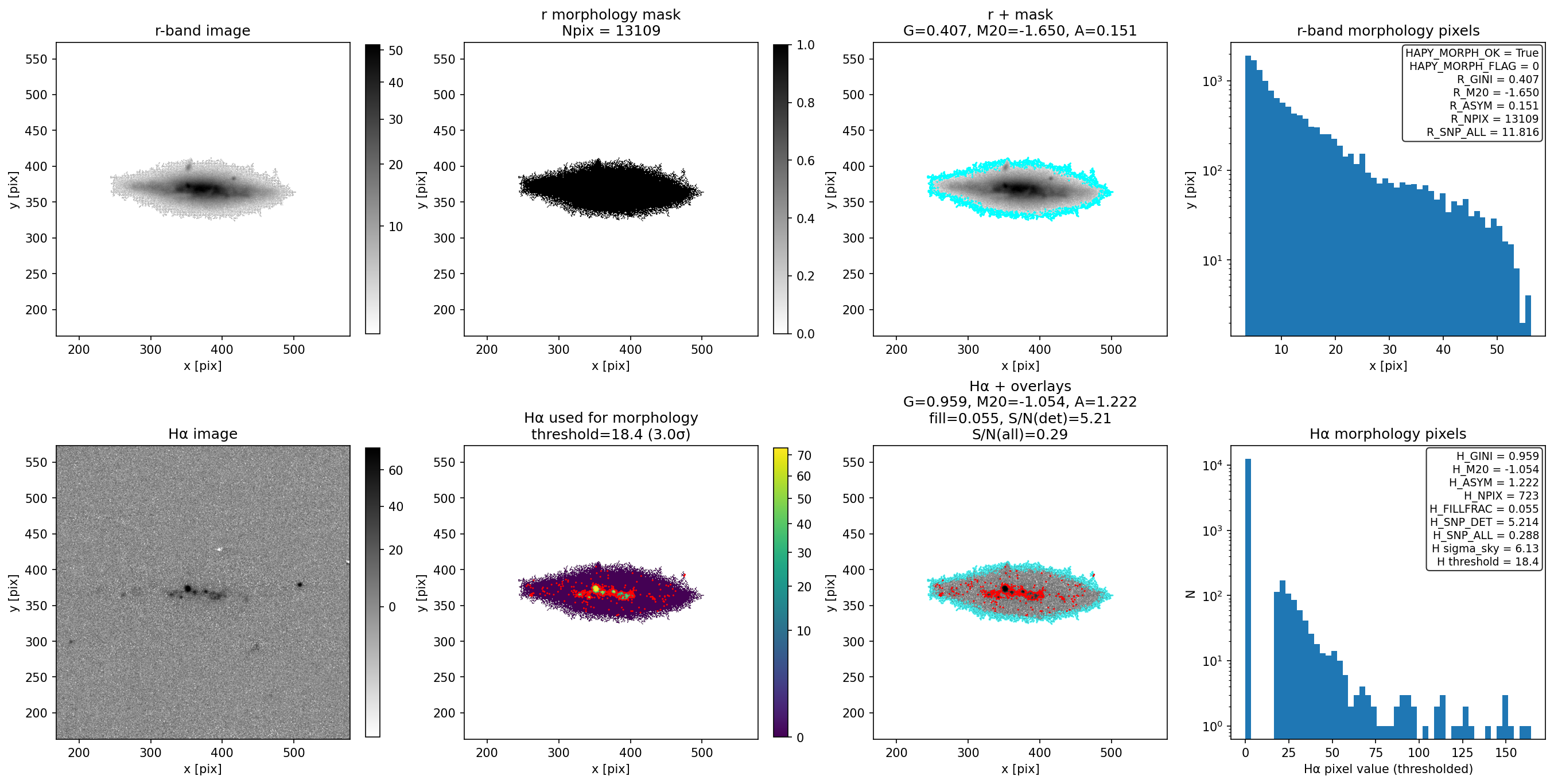

HAPY Morphology: VFID6135-UGC09285-INT-20190209-p137-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 373.75 | 367.91 | 0.54 | -1.63 | 3.10 | -0.08 | -0.01 | -- | 0 | 0 |
| Hα | 369.00 | 367.43 | 0.48 | -1.39 | 2.96 | -0.02 | 0.13 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID6135-UGC09285-INT-20190209-p137-R-statmorph-r.pdf
Hα statmorph: VFID6135-UGC09285-INT-20190209-p137-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 374.60 | 369.06 | 14.26 | -- | 0.93 | 0.26 | 87.0 | -0.01 | 1.38 | ● OK |
| CV | ● | 374.43 | 368.89 | 14.25 | -- | 0.98 | 0.26 | 87.0 | -0.01 | 1.37 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
