Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID5964 | NGC5668 | 0.4.1 | 2026-06-30 | INT | 20220504-VFID5981 | 1.91 | 1.90 | -- | 1.08 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

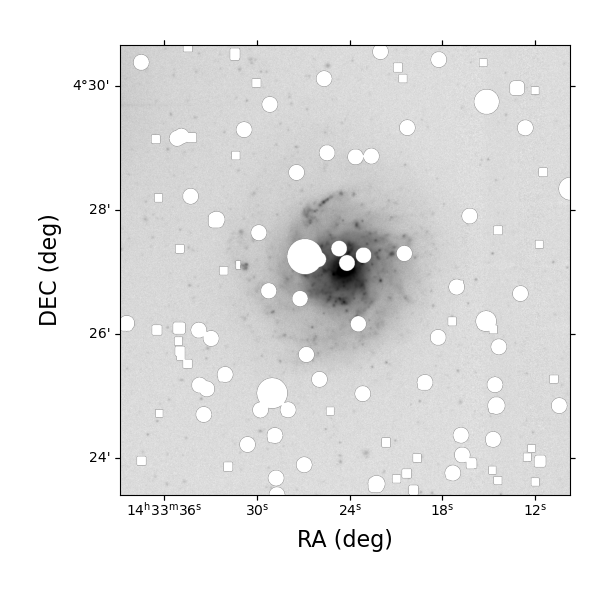

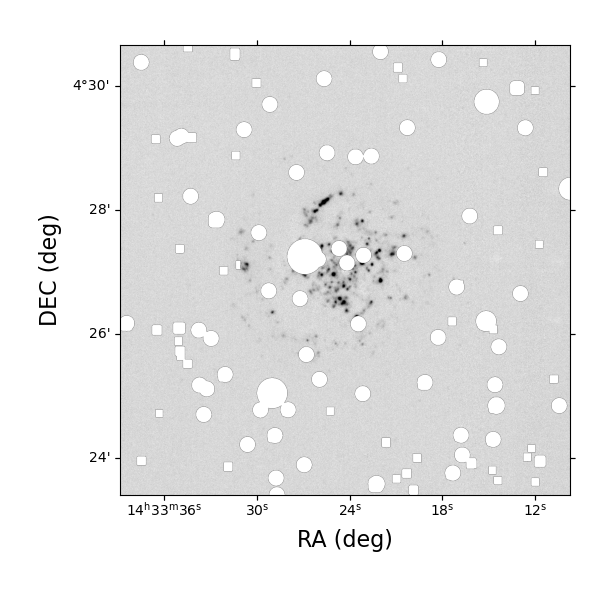

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.91 |
|---|
 |  |  |  | |

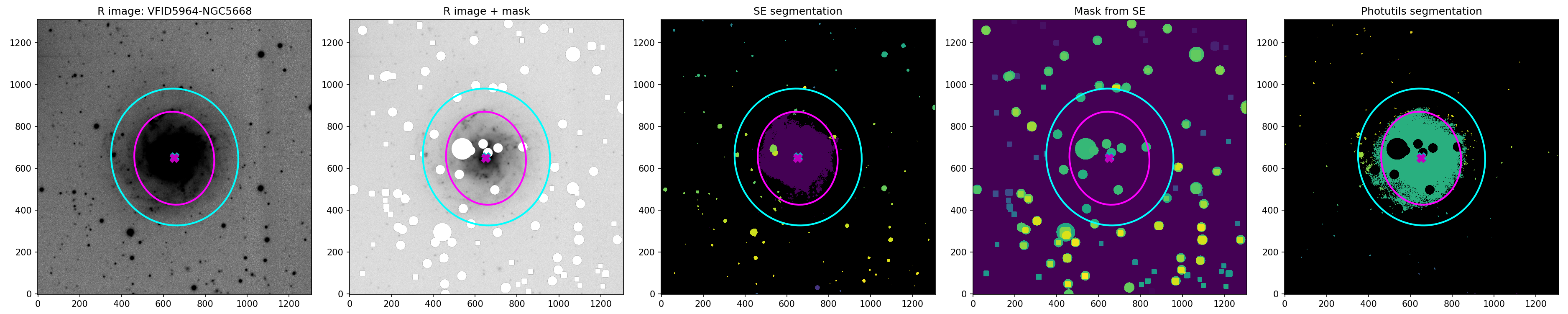

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.08 | 0.13 | ● | ● | ● | -- | -- | -- | 0.31 | 0.31 |

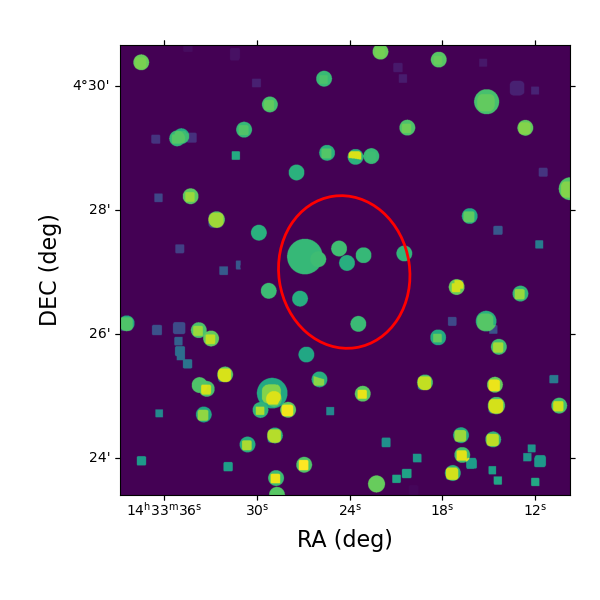

| HAPY Mask |
|---|
 |
Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 11.92 | 11.82 | 11.79 | 11.78 | 11.32 | 11.95 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 1.39e-12 | 1.21e-12 | 1.24e-12 | 1.26e-12 | 0.29 | 129.3 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 168 | 168 | 823 | 389 | ● | 0 | 0.00 | 0.65 | 0.05 | 0.10 | 0.14 | 1.17 | 0.14 | 11.3 | 33.5 | 87.2 | 1.5 |
| CS-GR | ok | 149 | 149 | 753 | 304 | ● | 0 | 0.00 | 0.72 | 0.06 | 0.11 | 0.16 | 1.10 | 0.11 | 68.8 | 37.1 | 87.2 | 1.5 |

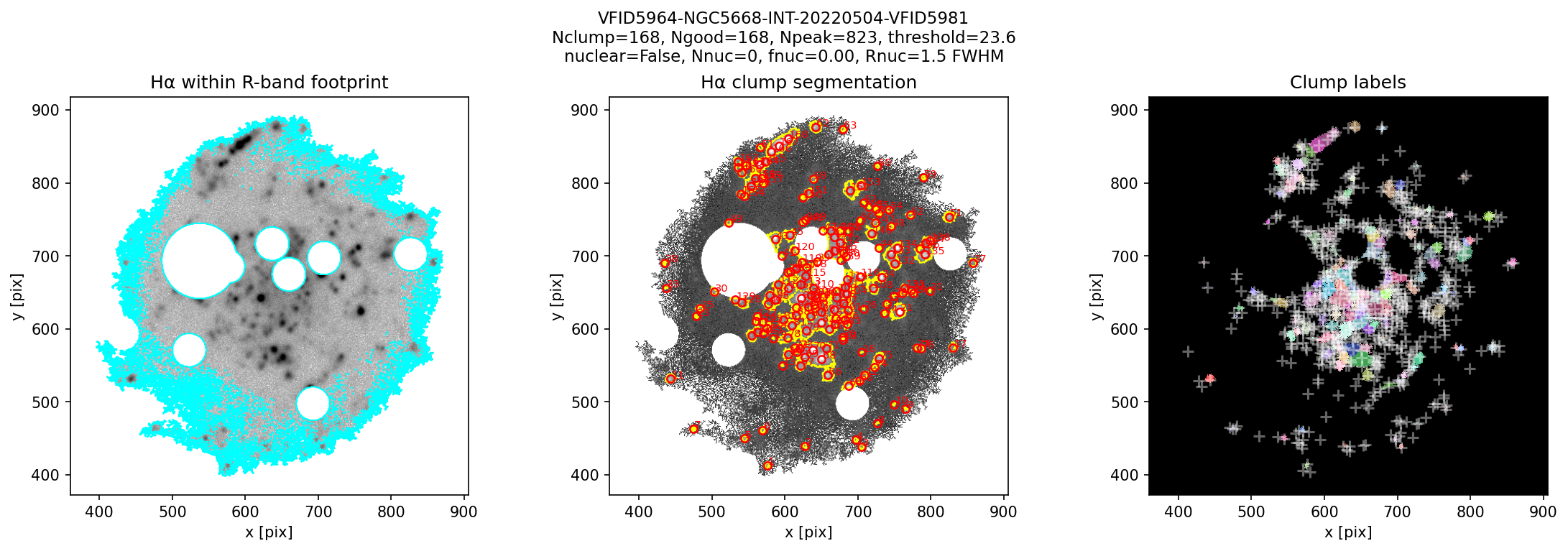

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.45 | -1.85 | 0.44 | -1.84 | 0.22 | 0.33 | 2.17 | ● |
| Hα | 0.40 | -0.73 | 0.67 | -0.69 | 1.19 | 0.29 | 1.90 | ● |
| CS-gr | -- | -0.72 | 0.90 | -0.60 | 1.68 | 0.27 | 1.88 | ● |
HAPY Morphology Diagnostic Plot

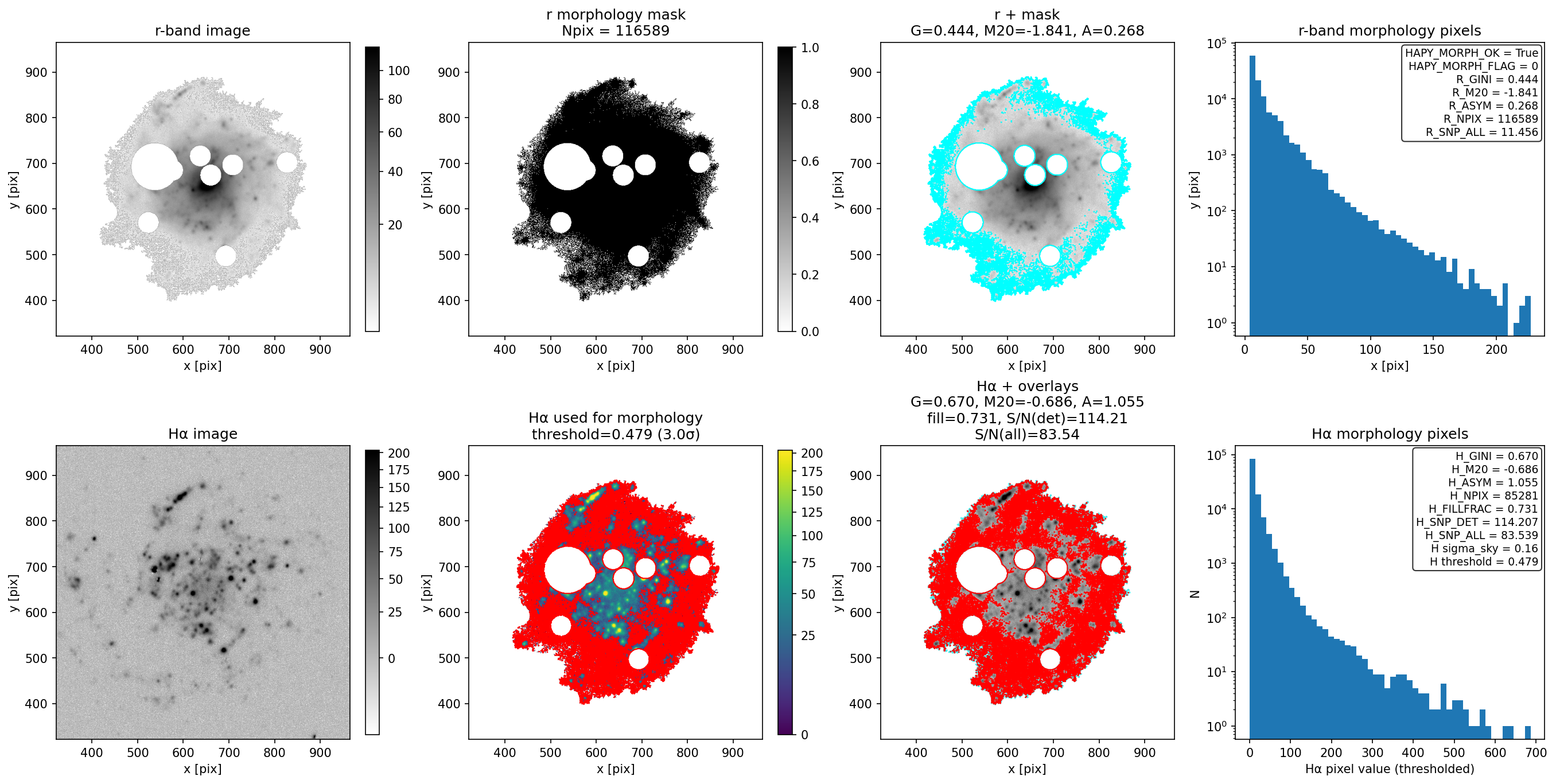

HAPY Morphology: VFID5964-NGC5668-INT-20220504-VFID5981-R-hapy-morphology-diag.png

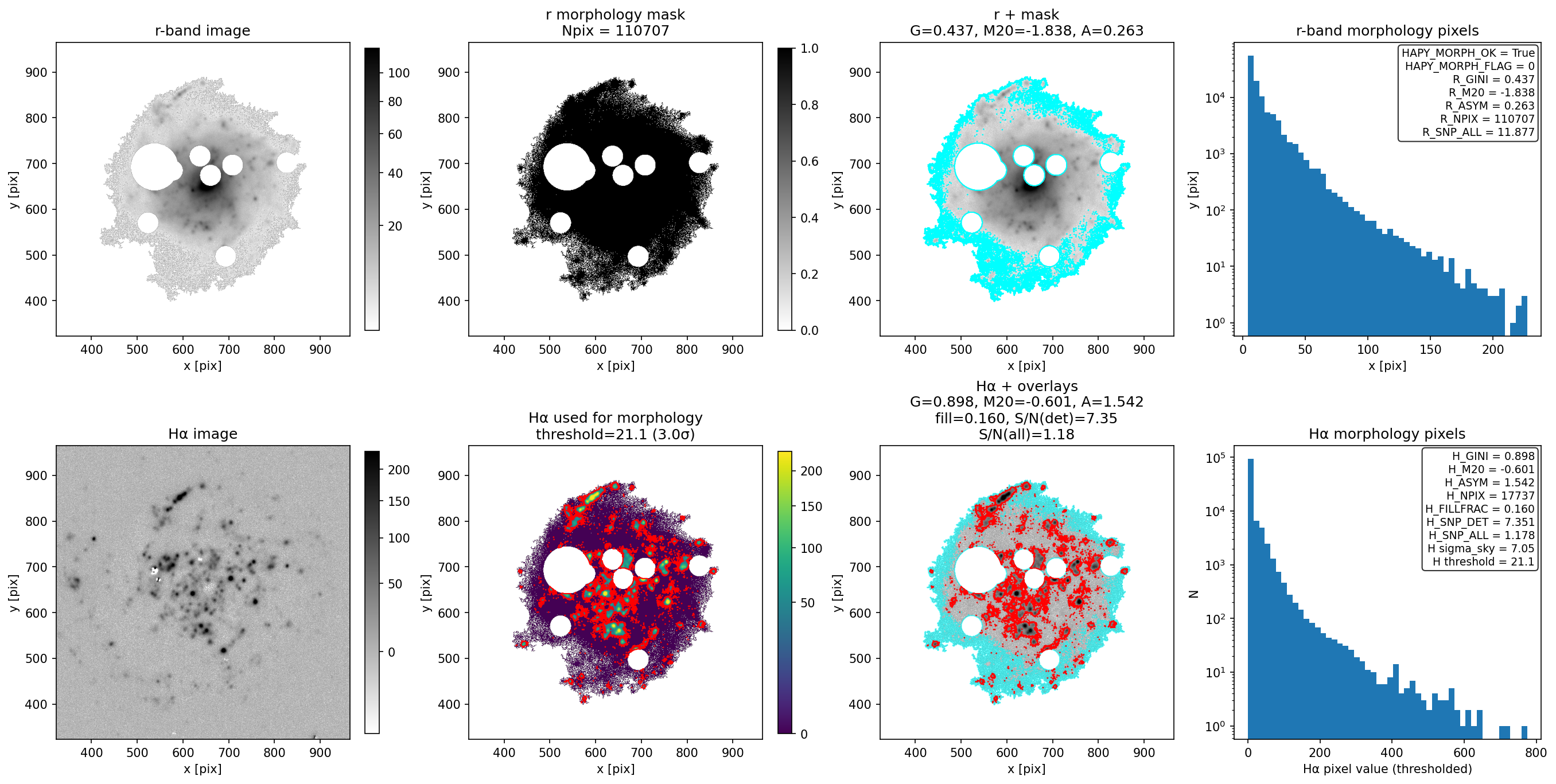

HAPY Morphology: VFID5964-NGC5668-INT-20220504-VFID5981-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 651.99 | 650.44 | 0.58 | -1.87 | 2.97 | 0.16 | 0.07 | -- | 2 | 0 |
| Hα | 654.10 | 667.99 | 0.63 | -1.18 | 0.00 | 100.00 | -99.00 | -- | 2 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID5964-NGC5668-INT-20220504-VFID5981-R-statmorph-r.pdf
Hα statmorph: VFID5964-NGC5668-INT-20220504-VFID5981-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 653.44 | 655.02 | 11.32 | -- | 1.86 | 0.92 | -41.2 | -0.33 | 1.65 | ● OK |
| CV | ● | 653.51 | 655.26 | 11.30 | -- | 1.92 | 0.92 | -40.2 | -0.35 | 1.66 | ● OK |
GALFIT r-band Modeling + Convolution

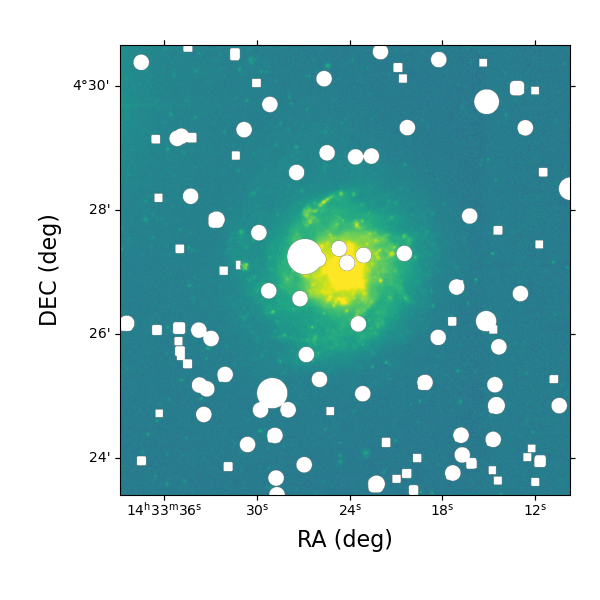

| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
