Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID5842 | NGC5356 | 0.4.1 | 2026-06-30 | HDI | 20180313-p056 | 1.70 | 1.76 | -- | 1.29 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

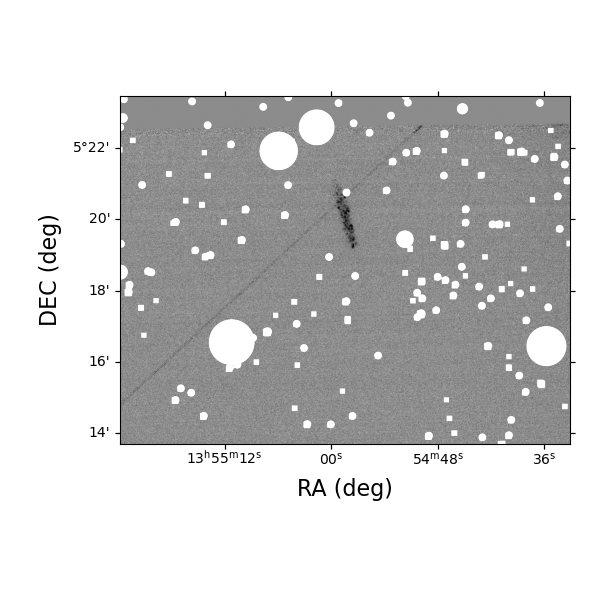

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.93 |
|---|
 |  |  |  | |

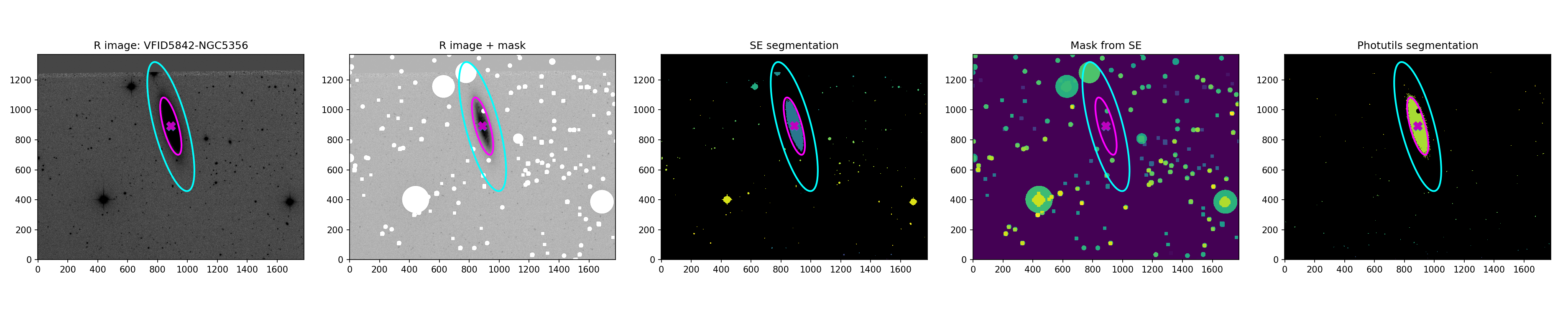

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.10 | 0.03 | ● | ● | ● | -- | -- | -- | 0.10 | 0.10 |

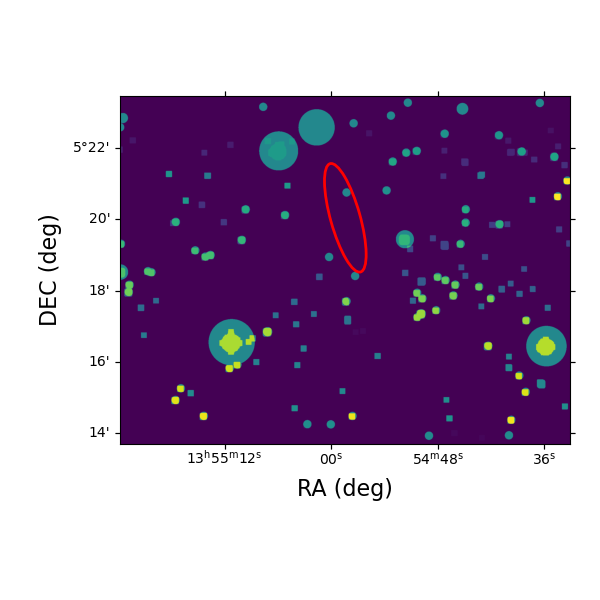

| HAPY Mask |
|---|
 |
Elliptical Photometry

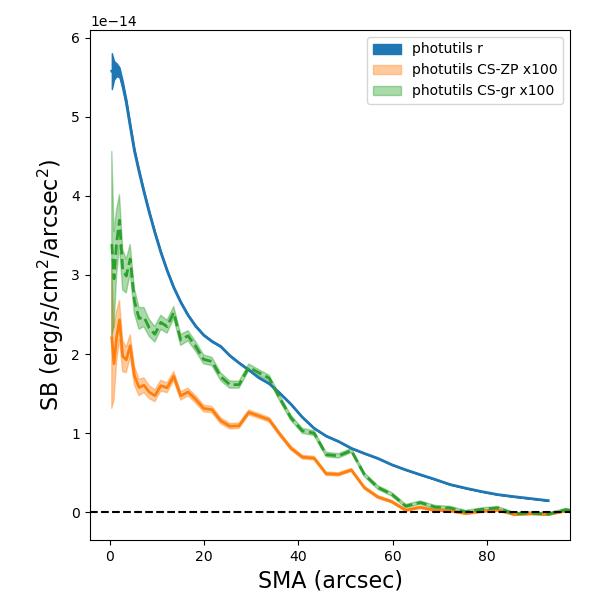

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 12.21 | 12.16 | 12.14 | 12.12 | 12.11 | 12.27 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 2.11e-13 | 2.00e-13 | 2.10e-13 | 2.13e-13 | 0.47 | 59.8 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 47 | 47 | 267 | 78 | ● | 0 | 0.00 | 0.33 | 0.08 | 0.16 | 0.23 | 1.01 | 0.03 | 13.4 | 21.2 | 49.2 | 1.5 |
| CS-GR | ok | 54 | 54 | 278 | 87 | ● | 1 | 0.02 | 0.33 | 0.07 | 0.14 | 0.21 | 1.11 | 0.04 | 13.4 | 20.5 | 49.2 | 1.5 |

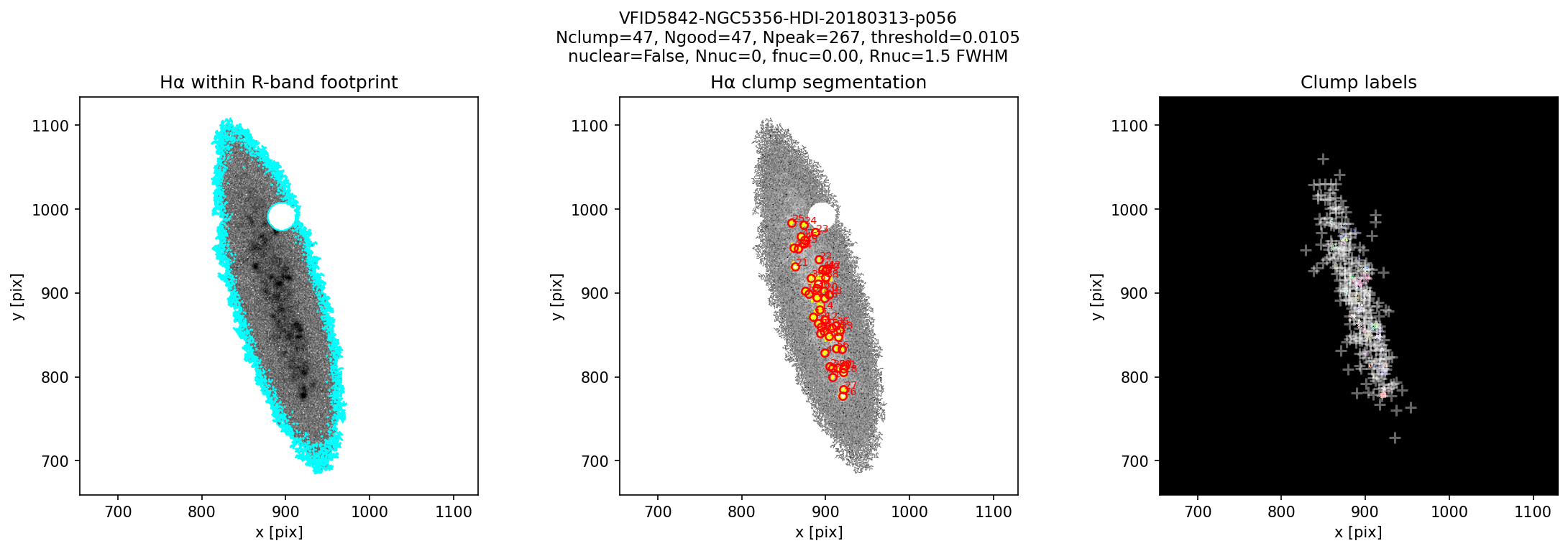

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.45 | -1.72 | 0.43 | -1.73 | 0.24 | 0.35 | 2.23 | ● |
| Hα | 0.23 | -0.99 | 0.79 | -0.89 | 3.01 | 0.47 | 6.03 | ● |
| CS-gr | -- | -1.01 | 0.93 | -0.66 | 2.61 | 0.46 | -- | ● |

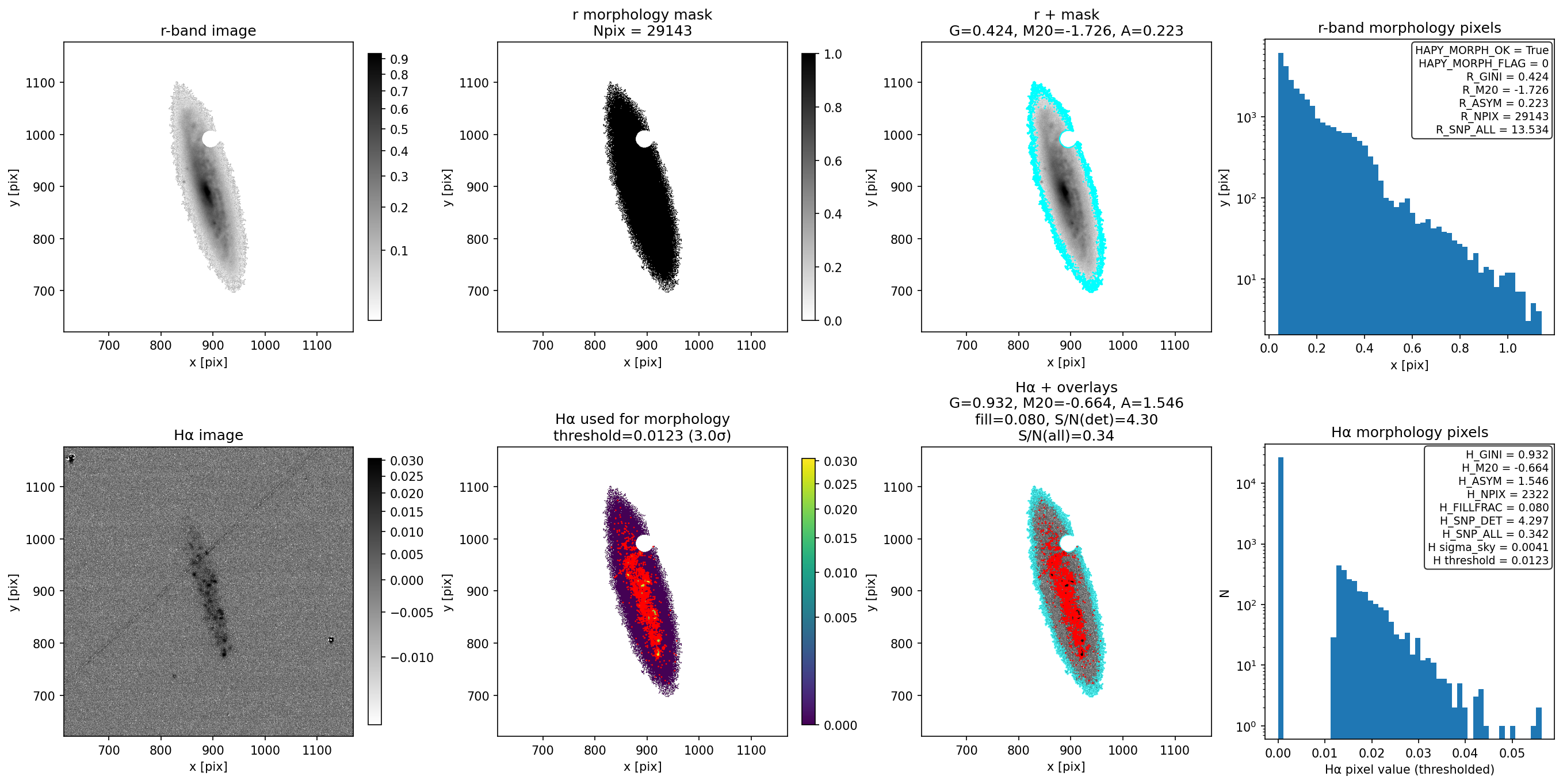

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID5842-NGC5356-HDI-20180313-p056-R-hapy-morphology-diag.png
HAPY Morphology: VFID5842-NGC5356-HDI-20180313-p056-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 890.17 | 892.68 | 0.55 | -1.65 | 3.19 | 0.05 | 0.03 | -- | 0 | 0 |
| Hα | 892.82 | 887.55 | 0.46 | -0.72 | 2.81 | -0.09 | 0.38 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID5842-NGC5356-HDI-20180313-p056-R-statmorph-r.pdf
Hα statmorph: VFID5842-NGC5356-HDI-20180313-p056-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 890.30 | 890.88 | 12.11 | -- | 0.90 | 0.23 | 15.8 | -0.00 | 1.34 | ● OK |
| CV | ● | 890.31 | 890.92 | 12.11 | -- | 0.91 | 0.23 | 15.8 | -0.00 | 1.34 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
