Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID4104 | VCC0030 | 0.4.1 | 2026-06-30 | INT | 20190210-p096 | 1.41 | 1.35 | -- | 1.15 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

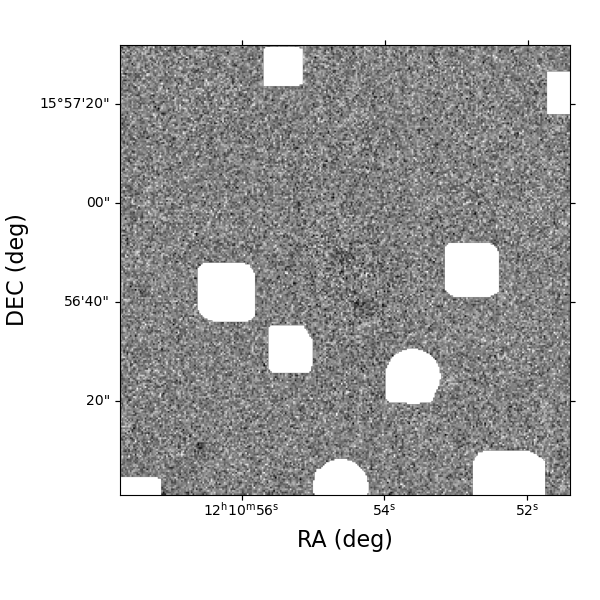

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.82 |
|---|
 |  |  |  | |

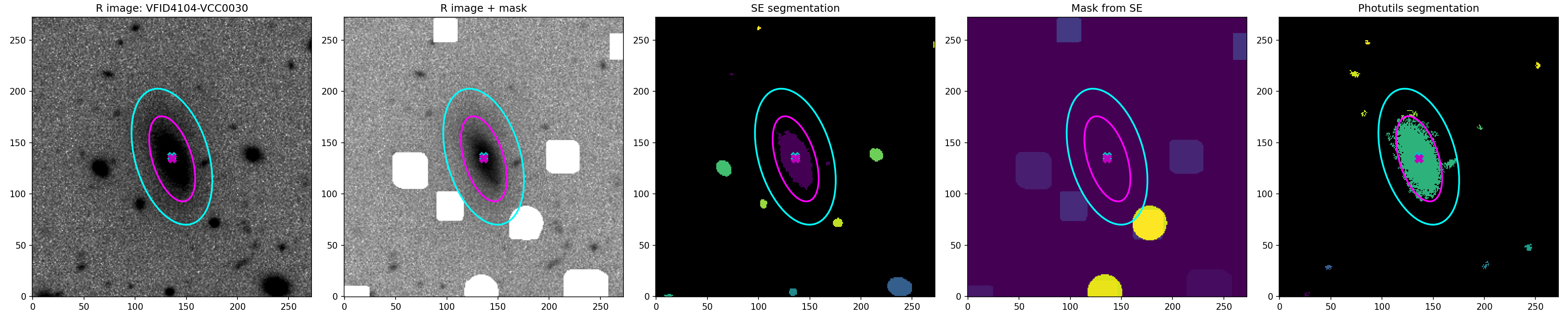

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.01 | 0.00 | ● | ● | ● | -- | -- | -- | 0.09 | 0.09 |
| HAPY Mask |
|---|
 |

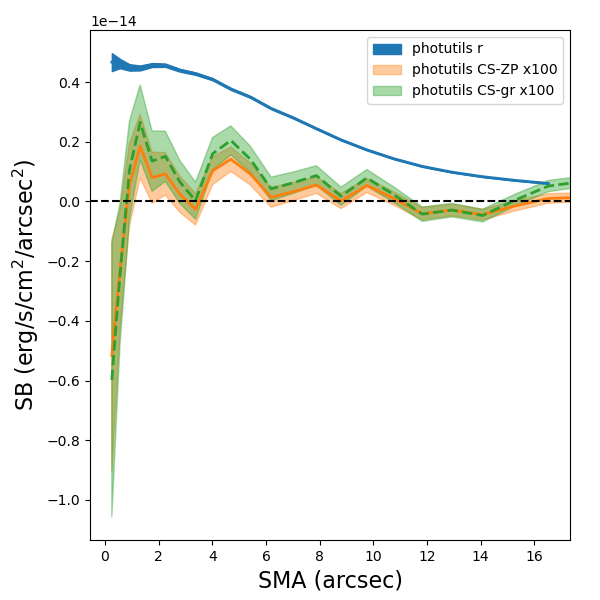

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 17.06 | 16.66 | 16.59 | 16.40 | 16.44 | 16.99 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 3.30e-16 | -- | 2.19e-17 | 3.20e-16 | 0.39 | 5.4 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 0 | 0 | 5 | 0 | ● | 0 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | 1.5 |
| CS-GR | ok | 0 | 0 | 5 | 0 | ● | 0 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | 1.5 |

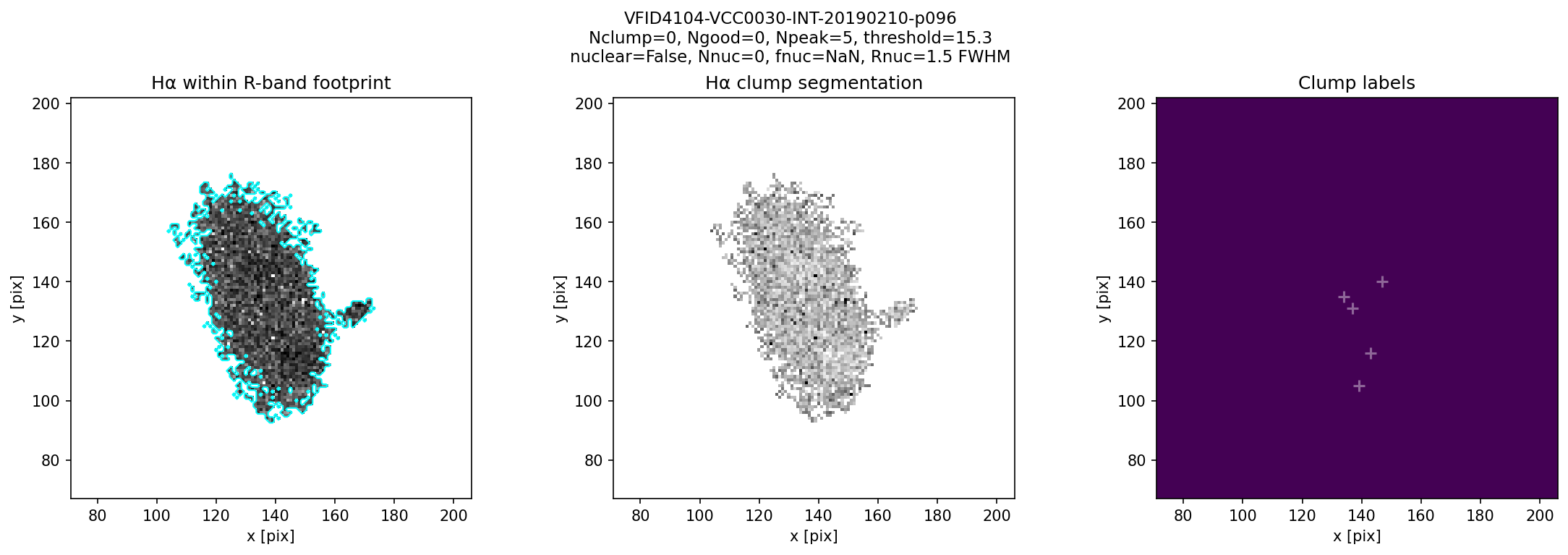

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.30 | -1.57 | 0.23 | -1.45 | 0.20 | 0.19 | 2.56 | ● |
| Hα | 0.14 | -0.83 | 0.71 | -0.76 | -14.19 | 0.39 | 0.33 | ● |
| CS-gr | -- | -0.83 | 0.99 | -2.16 | -25.90 | 0.30 | -- | ● |

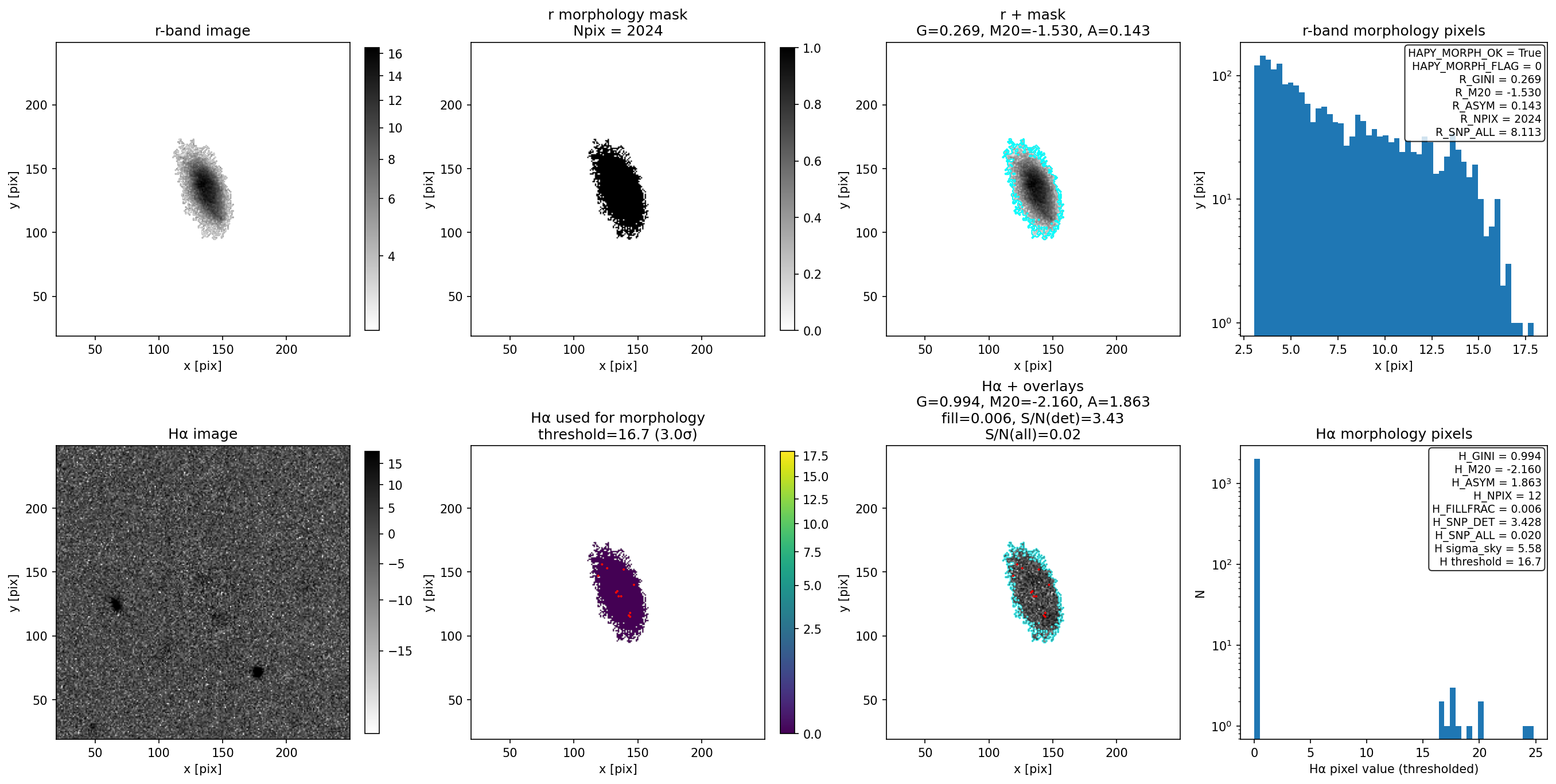

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID4104-VCC0030-INT-20190210-p096-R-hapy-morphology-diag.png
HAPY Morphology: VFID4104-VCC0030-INT-20190210-p096-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | -- | -- | -- | -- | -- | -- | -- | -- | nan | nan |
| Hα | -- | -- | -- | -- | -- | -- | -- | -- | nan | nan |
Statmorph Diagnostic PDFs
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 137.40 | 135.44 | 16.44 | -- | 0.96 | 0.49 | 20.1 | 0.00 | 1.13 | ● OK |
| CV | ● | 137.36 | 135.41 | 16.41 | -- | 1.06 | 0.47 | 20.1 | -0.01 | 1.13 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
