Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID4022 | UGC10086 | 0.4.1 | 2026-06-30 | BOK | 20220426-VFID4025 | 1.51 | 1.50 | -- | 1.02 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

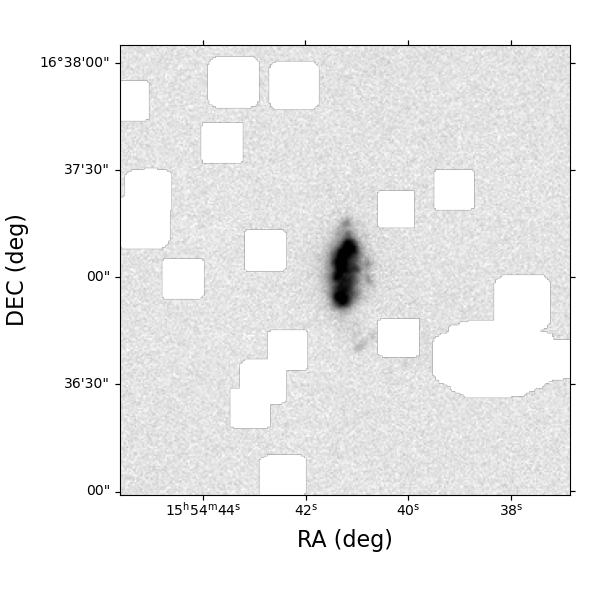

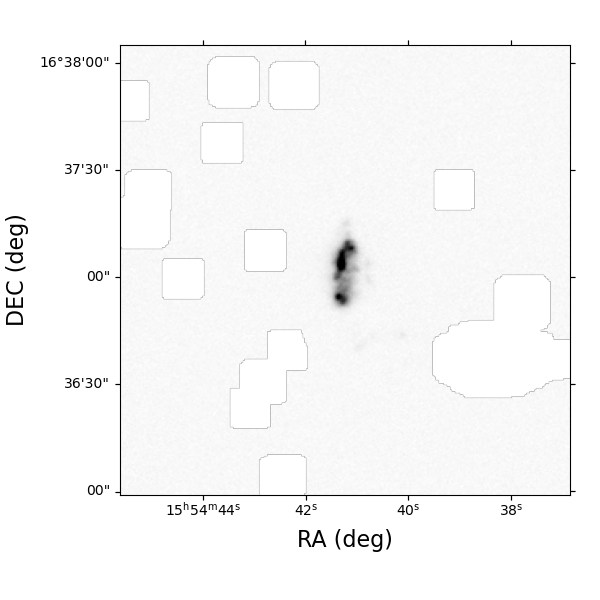

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=1.00 |
|---|
 |  |  |  | |
Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.00 | 0.00 | ● | ● | ● | -- | -- | -- | 0.09 | 0.09 |

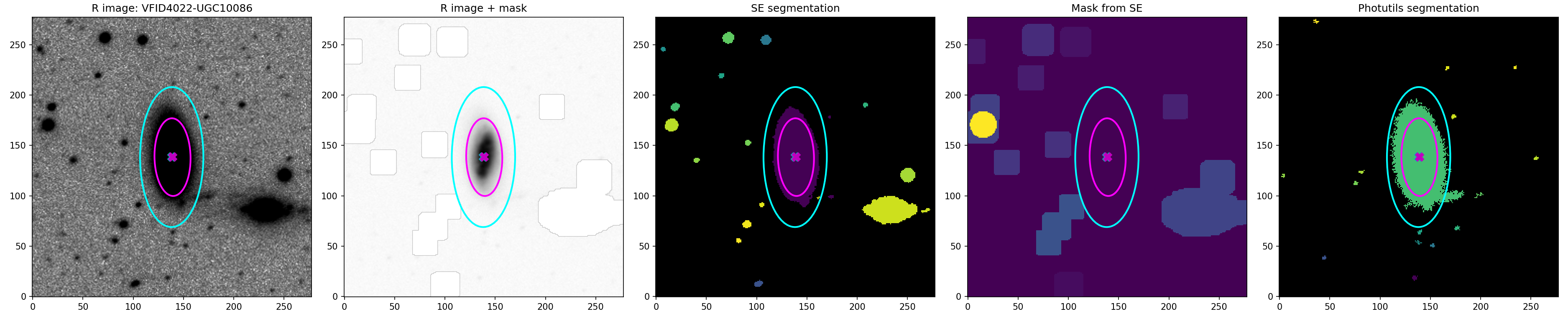

| HAPY Mask |
|---|
 |
Elliptical Photometry

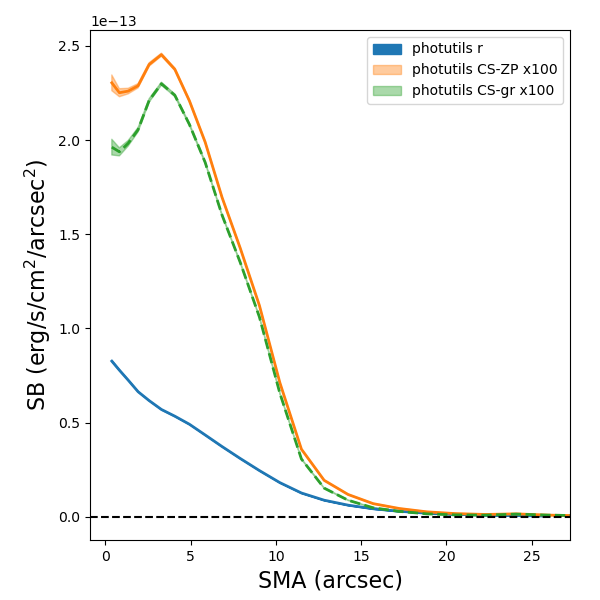

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 14.25 | 14.23 | 14.22 | 14.22 | 14.29 | 14.23 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 2.80e-13 | 2.66e-13 | 2.71e-13 | 2.72e-13 | 0.47 | 43.5 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 7 | 7 | 14 | 9 | ● | 1 | 0.53 | 0.94 | 0.53 | 0.81 | 0.98 | 1.94 | 0.29 | 1.3 | 4.1 | 24.4 | 1.5 |
| CS-GR | ok | 7 | 7 | 15 | 9 | ● | 1 | 0.52 | 0.95 | 0.52 | 0.81 | 0.98 | 1.80 | 0.26 | 1.5 | 4.2 | 24.4 | 1.5 |

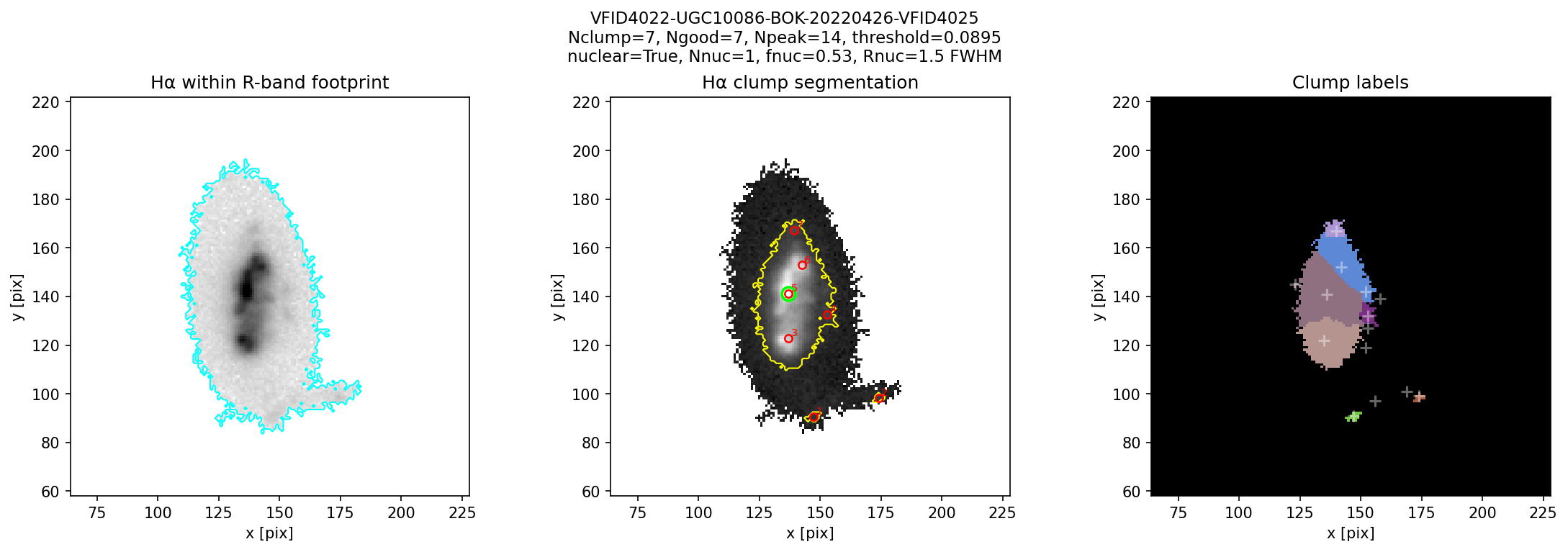

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.71 | -1.63 | 0.60 | -1.55 | 0.15 | 0.41 | 2.08 | ● |
| Hα | 0.65 | -1.08 | 0.79 | -0.97 | 0.77 | 0.47 | -- | ● |
| CS-gr | -- | -1.11 | 0.86 | -1.01 | 0.92 | 0.49 | -- | ● |
HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID4022-UGC10086-BOK-20220426-VFID4025-R-hapy-morphology-diag.png

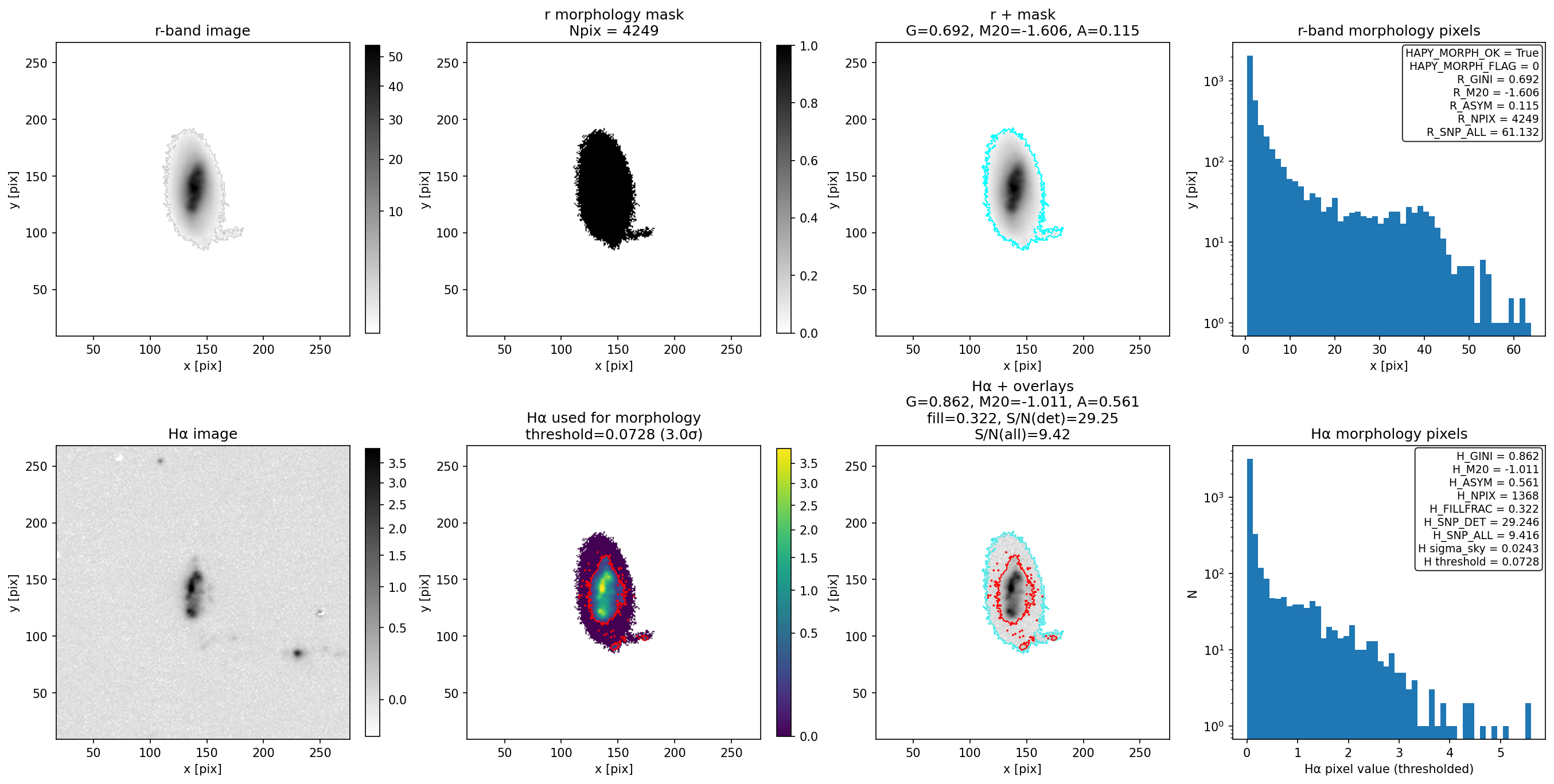

HAPY Morphology: VFID4022-UGC10086-BOK-20220426-VFID4025-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 139.05 | 138.99 | 0.46 | -1.50 | 2.47 | 0.07 | 0.03 | -- | 2 | 0 |
| Hα | 138.15 | 138.23 | 0.41 | -0.97 | 2.24 | 0.35 | 0.04 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID4022-UGC10086-BOK-20220426-VFID4025-R-statmorph-r.pdf
Hα statmorph: VFID4022-UGC10086-BOK-20220426-VFID4025-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 140.10 | 140.10 | 14.29 | -- | 0.59 | 0.41 | -6.0 | 0.03 | 7.49 | ● OK |
| CV | ● | -- | -- | -- | -- | -- | -- | -- | -- | -- | ● OK |
GALFIT r-band Modeling + Convolution
