Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3574 | NGC6186 | 0.4.1 | 2026-06-30 | HDI | 20200229-p080 | 1.46 | 1.61 | -- | 1.02 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

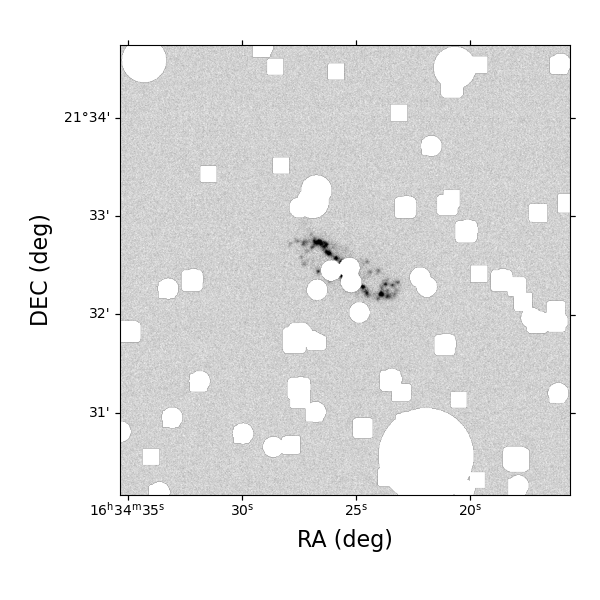

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.92 |
|---|
 |  |  |  | |

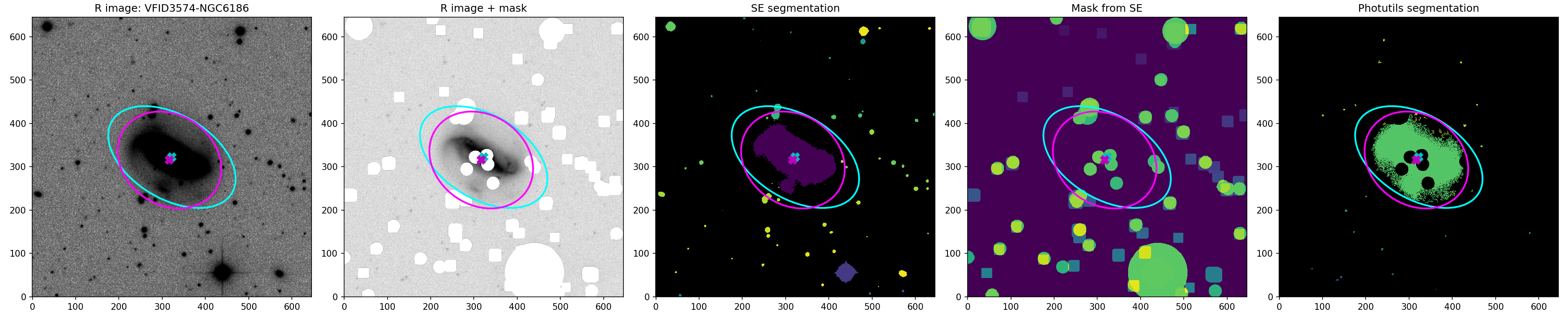

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.14 | 0.16 | ● | ● | ● | -- | -- | -- | 0.89 | 0.89 |
| HAPY Mask |
|---|
 |

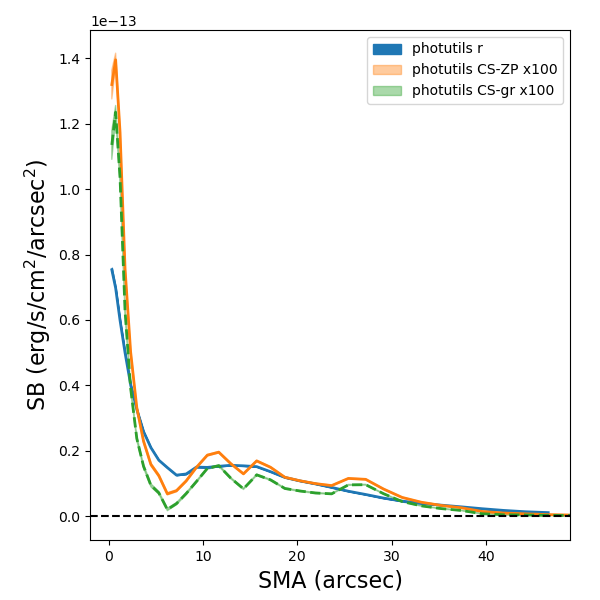

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 13.05 | 13.01 | 13.00 | 12.99 | 12.65 | 13.10 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 2.60e-13 | 2.11e-13 | 2.43e-13 | 2.57e-13 | 0.11 | 54.2 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 43 | 43 | 186 | 91 | ● | 0 | 0.00 | 0.66 | 0.15 | 0.27 | 0.37 | 1.24 | 0.12 | 23.7 | 20.9 | 37.2 | 1.5 |
| CS-GR | ok | 35 | 35 | 159 | 63 | ● | 0 | 0.00 | 0.71 | 0.18 | 0.29 | 0.39 | 1.57 | 0.09 | 23.7 | 21.4 | 37.3 | 1.5 |

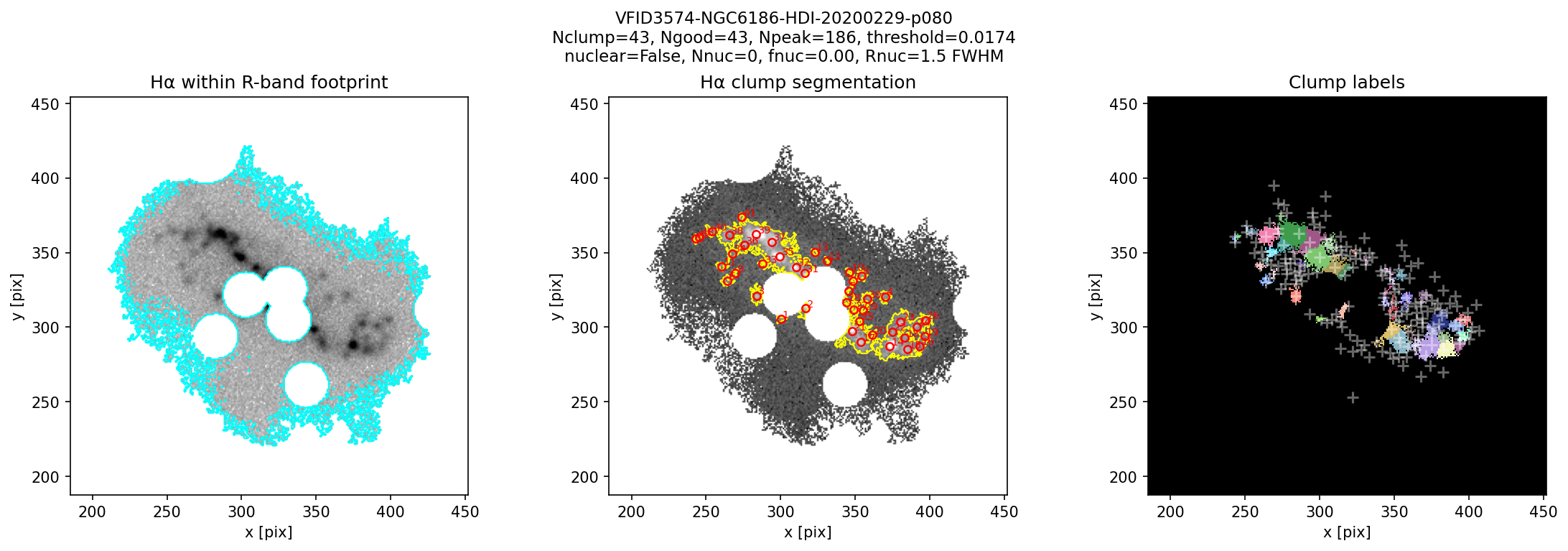

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.49 | -1.10 | 0.48 | -1.07 | 0.20 | 0.12 | 1.73 | ● |
| Hα | 0.40 | -0.88 | 0.91 | -0.79 | 1.11 | 0.11 | 1.33 | ● |
| CS-gr | -- | -0.89 | 0.92 | -0.79 | 1.62 | 0.11 | 1.18 | ● |
HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID3574-NGC6186-HDI-20200229-p080-R-hapy-morphology-diag.png

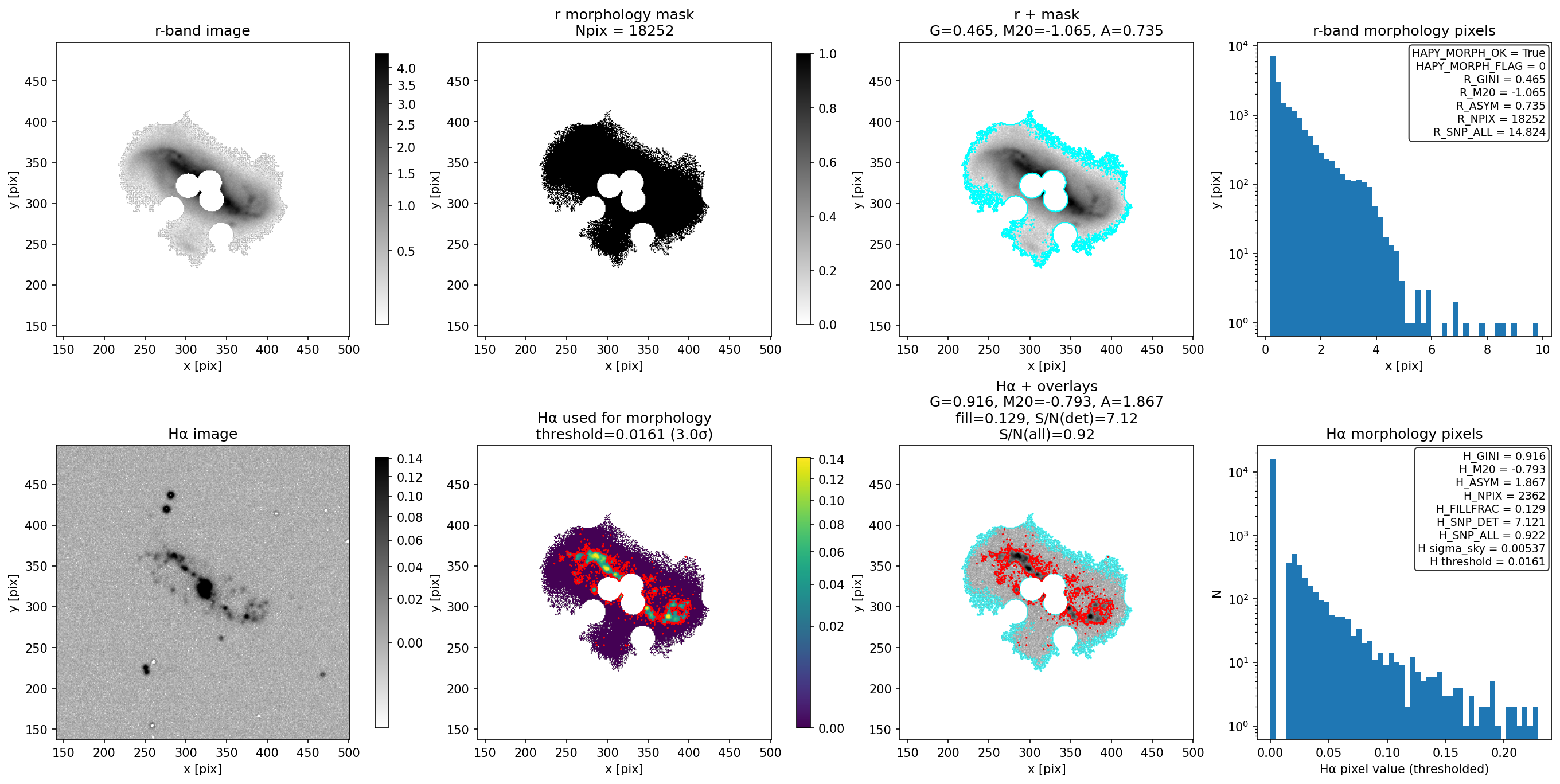

HAPY Morphology: VFID3574-NGC6186-HDI-20200229-p080-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 322.31 | 323.50 | 0.74 | -1.25 | 0.00 | 100.00 | -99.00 | -- | 2 | 0 |
| Hα | 323.64 | 326.92 | 0.65 | -1.28 | 0.00 | 100.00 | -99.00 | -- | 2 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3574-NGC6186-HDI-20200229-p080-R-statmorph-r.pdf
Hα statmorph: VFID3574-NGC6186-HDI-20200229-p080-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 322.67 | 323.22 | 12.65 | -- | 0.91 | 0.38 | 56.7 | 0.00 | 2.24 | ● OK |
| CV | ● | 322.70 | 323.39 | 12.65 | -- | 0.91 | 0.37 | 56.8 | 0.00 | 2.25 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
