VFID3503-WISEAJ080947.89+222730.3-INT-20190207-lmp001
Home
Previous (VFID3500-NGC2577-INT-20190205-p004)
Next (VFID3504-WISEAJ080947.89+222730.3-INT-20190207-lmp001)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3503 | WISEAJ080947.89+222730.3 | 0.4.1 | 2026-06-30 | INT | 20190207-lmp001 | 1.30 | 1.37 | -- | 1.13 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

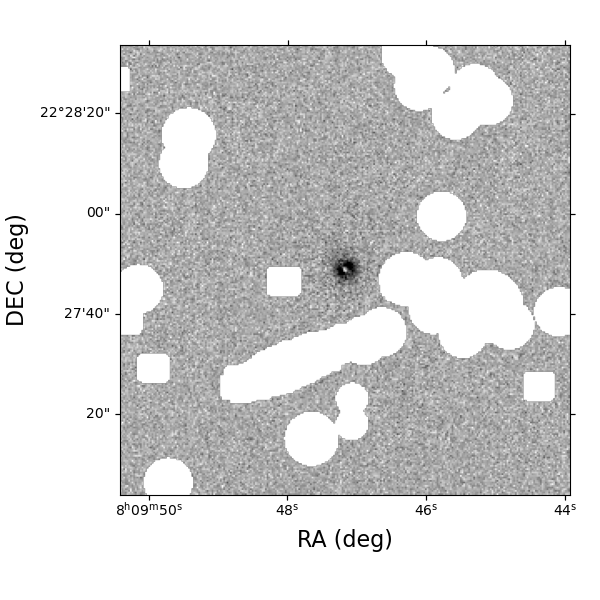

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.93 |
|---|
 |  |  |  | |

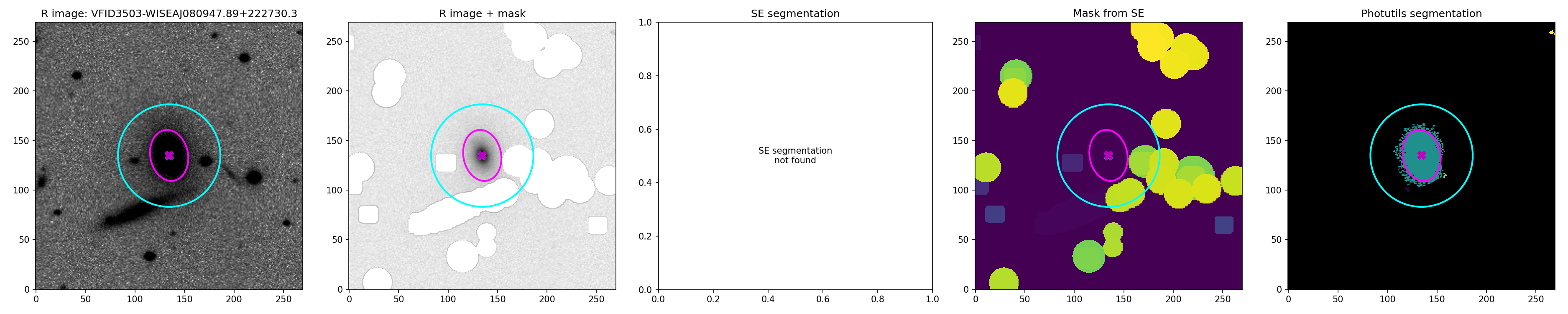

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.29 | 0.00 | ● | ● | ● | -- | -- | -- | 0.30 | 0.30 |

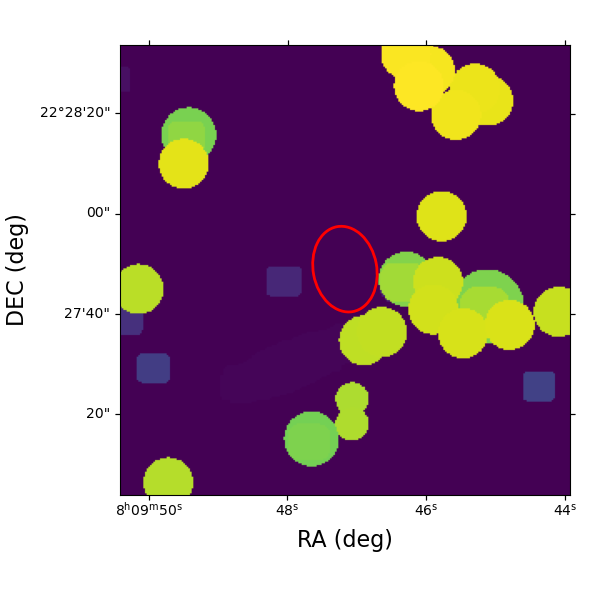

| HAPY Mask |
|---|
 |

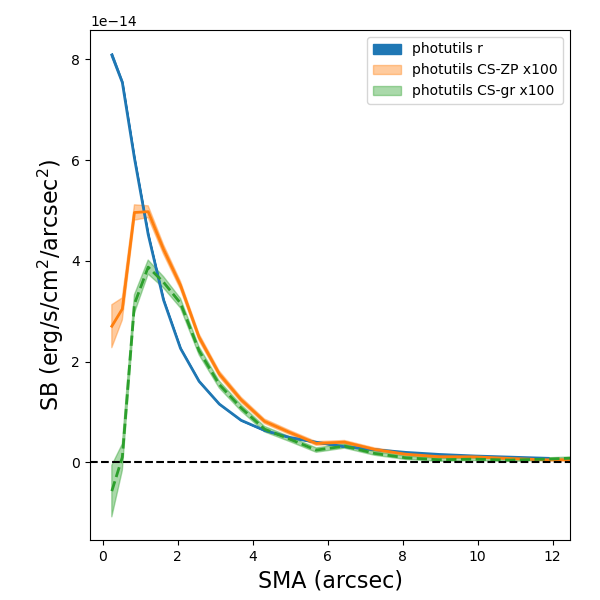

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 16.18 | 16.09 | 16.04 | 16.06 | 16.11 | 16.21 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 1.36e-14 | 9.85e-15 | 1.19e-14 | 1.33e-14 | 0.54 | 12.9 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 2 | 2 | 21 | 5 | ● | 2 | 1.00 | 0.59 | 0.54 | 1.00 | 1.00 | 1.18 | 0.10 | 1.1 | 1.1 | 1.1 | 1.5 |
| CS-GR | ok | 2 | 2 | 18 | 2 | ● | 2 | 1.00 | 0.57 | 0.53 | 1.00 | 1.00 | 1.12 | 0.07 | 1.2 | 1.0 | 1.2 | 1.5 |

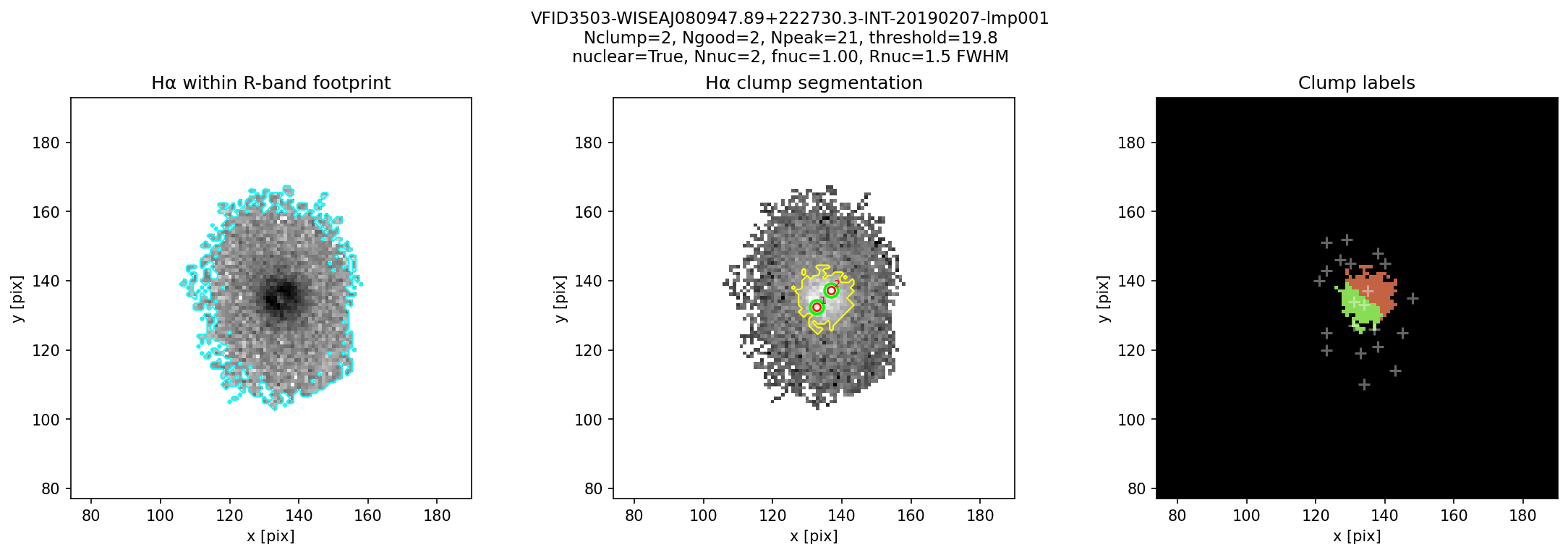

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.55 | -2.19 | 0.54 | -2.15 | 0.22 | 0.49 | 2.83 | ● |
| Hα | 0.35 | -1.87 | 0.67 | -1.80 | 1.25 | 0.54 | 6.27 | ● |
| CS-gr | -- | -1.77 | 0.92 | -1.29 | 2.11 | 0.58 | -- | ● |
HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID3503-WISEAJ080947.89+222730.3-INT-20190207-lmp001-R-hapy-morphology-diag.png

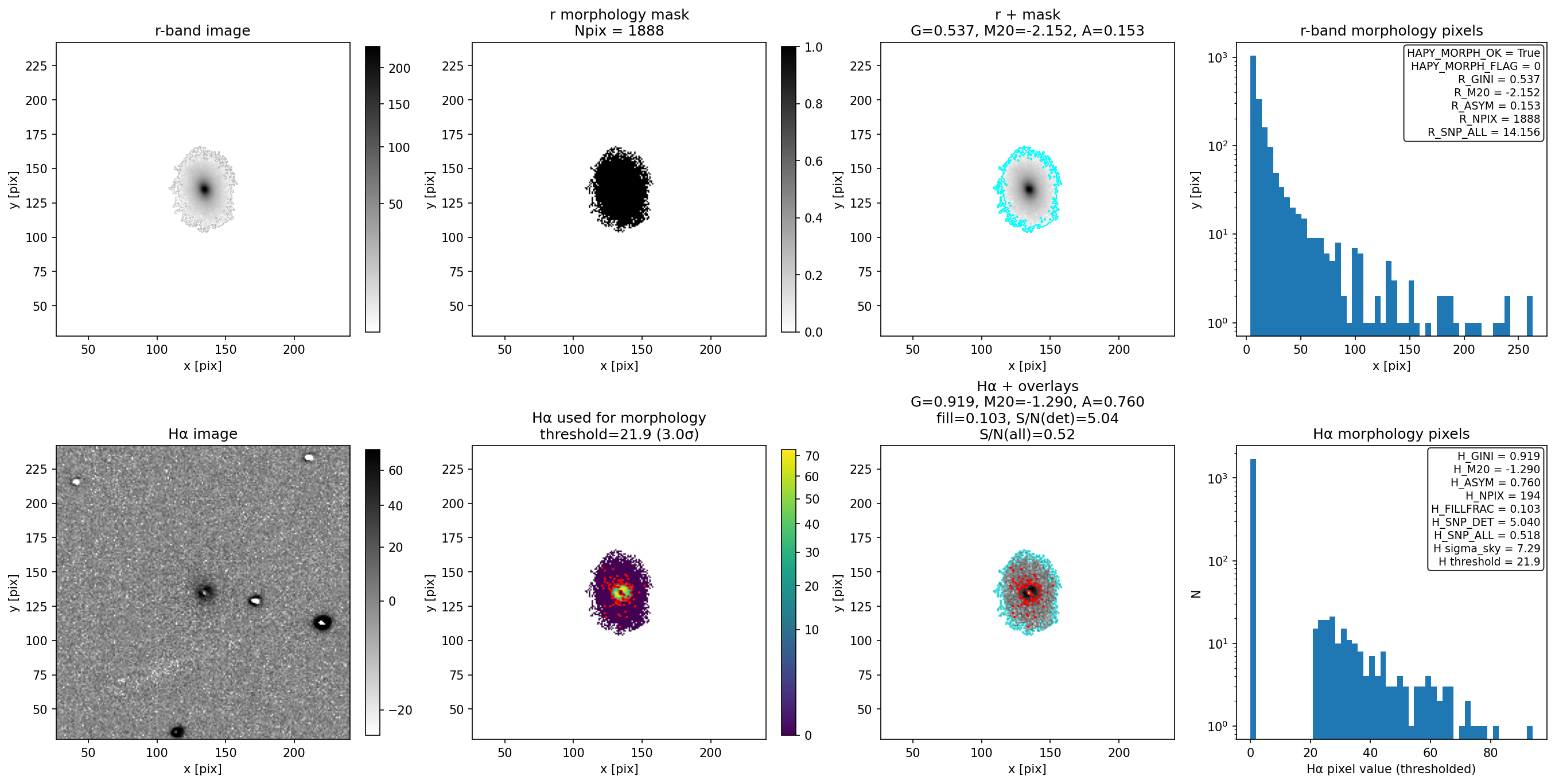

HAPY Morphology: VFID3503-WISEAJ080947.89+222730.3-INT-20190207-lmp001-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 134.81 | 135.05 | 0.59 | -2.18 | 3.69 | -0.01 | -0.03 | -- | 0 | 0 |
| Hα | 134.67 | 135.71 | 0.52 | -1.62 | 2.87 | 0.04 | 0.07 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3503-WISEAJ080947.89+222730.3-INT-20190207-lmp001-R-statmorph-r.pdf
Hα statmorph: VFID3503-WISEAJ080947.89+222730.3-INT-20190207-lmp001-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 135.59 | 135.97 | 16.11 | -- | 1.66 | 0.74 | 15.5 | 0.08 | 1.38 | ● OK |
| CV | ● | 135.23 | 135.87 | 15.77 | -- | 4.00 | 0.59 | 14.9 | -0.06 | 1.17 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
