Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3451 | NGC6276 | 0.4.1 | 2026-06-30 | BOK | 20210418-VFID3459 | 1.62 | 1.67 | -- | 1.00 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

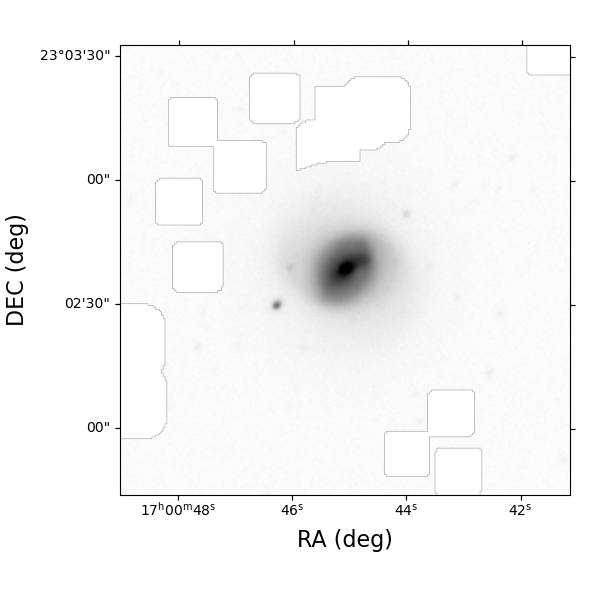

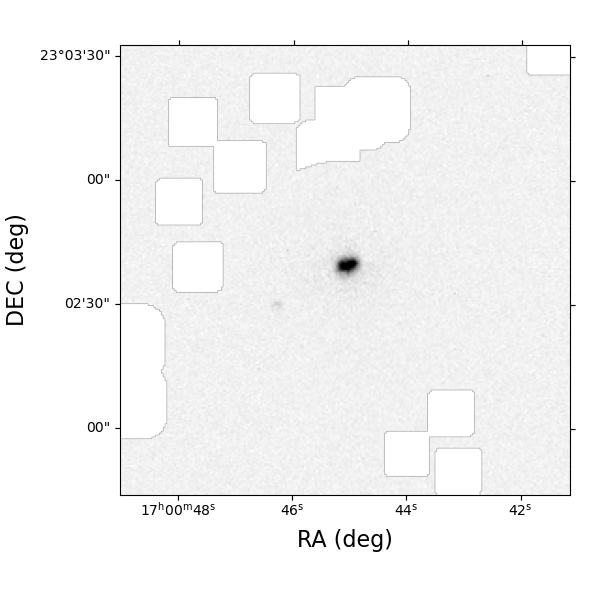

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.92 |
|---|
 |  |  |  | |

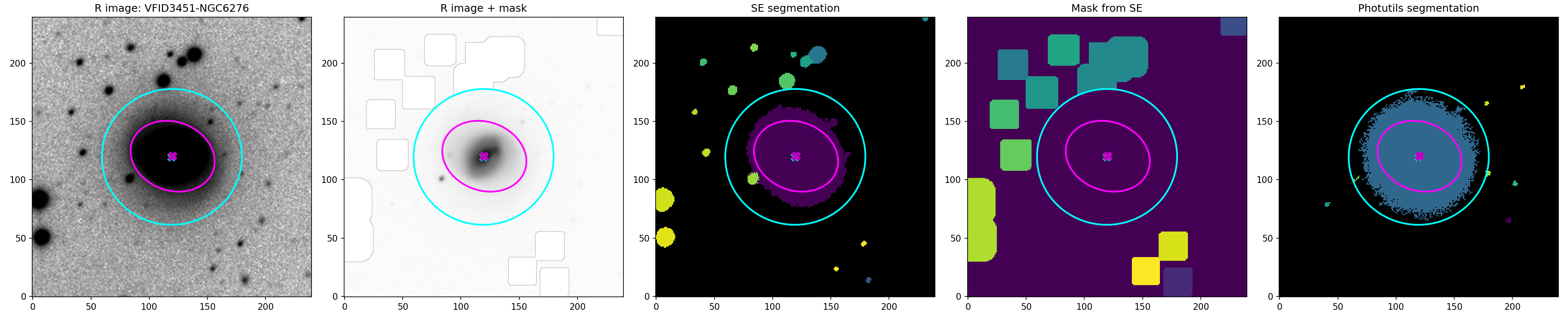

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.00 | 0.00 | ● | ● | ● | -- | -- | -- | 0.18 | 0.18 |

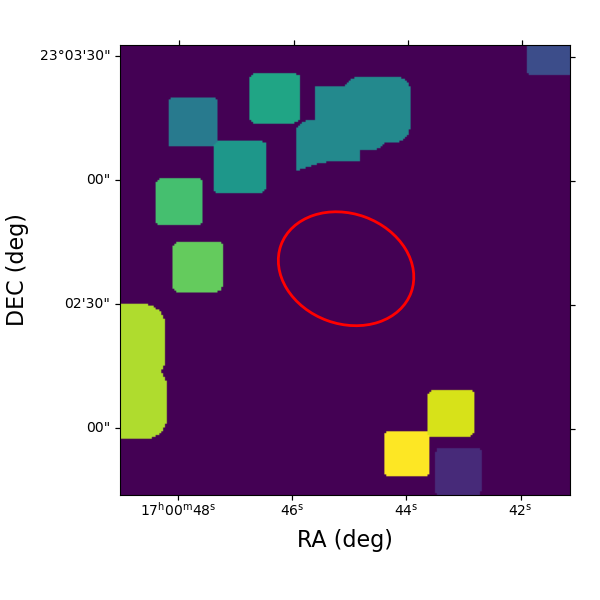

| HAPY Mask |
|---|
 |

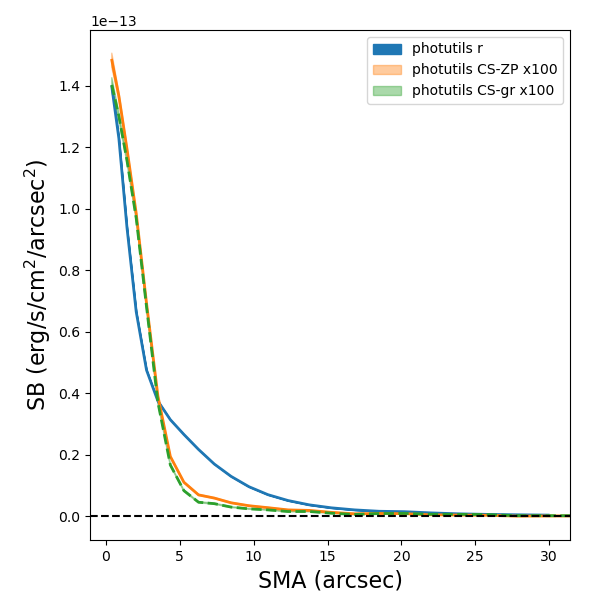

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 14.21 | 14.16 | 14.15 | 14.16 | 14.11 | 14.18 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 4.76e-14 | 3.31e-14 | 4.16e-14 | 4.67e-14 | 0.67 | 25.8 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 7 | 7 | 66 | 20 | ● | 1 | 0.96 | 0.68 | 0.96 | 0.98 | 0.99 | 54.78 | 0.06 | 1.1 | 1.5 | 18.5 | 1.5 |
| CS-GR | ok | 2 | 2 | 53 | 7 | ● | 1 | 0.98 | 0.65 | 0.98 | 1.00 | 1.00 | 53.45 | 0.04 | 1.2 | 1.5 | 18.4 | 1.5 |

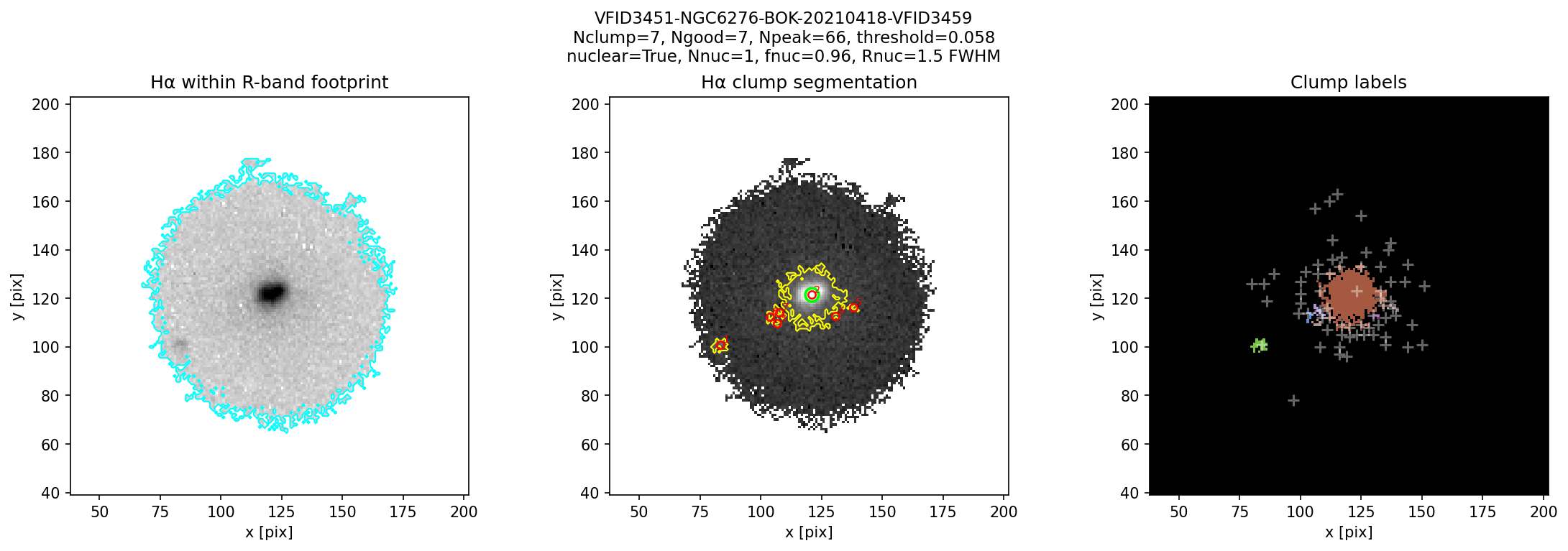

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.67 | -2.03 | 0.59 | -1.95 | 0.15 | 0.50 | 2.66 | ● |
| Hα | 0.60 | -2.32 | 0.97 | -1.22 | 1.32 | 0.67 | 3.29 | ● |
| CS-gr | -- | -2.40 | 0.97 | -1.59 | 1.58 | 0.69 | -- | ● |
HAPY Morphology Diagnostic Plot

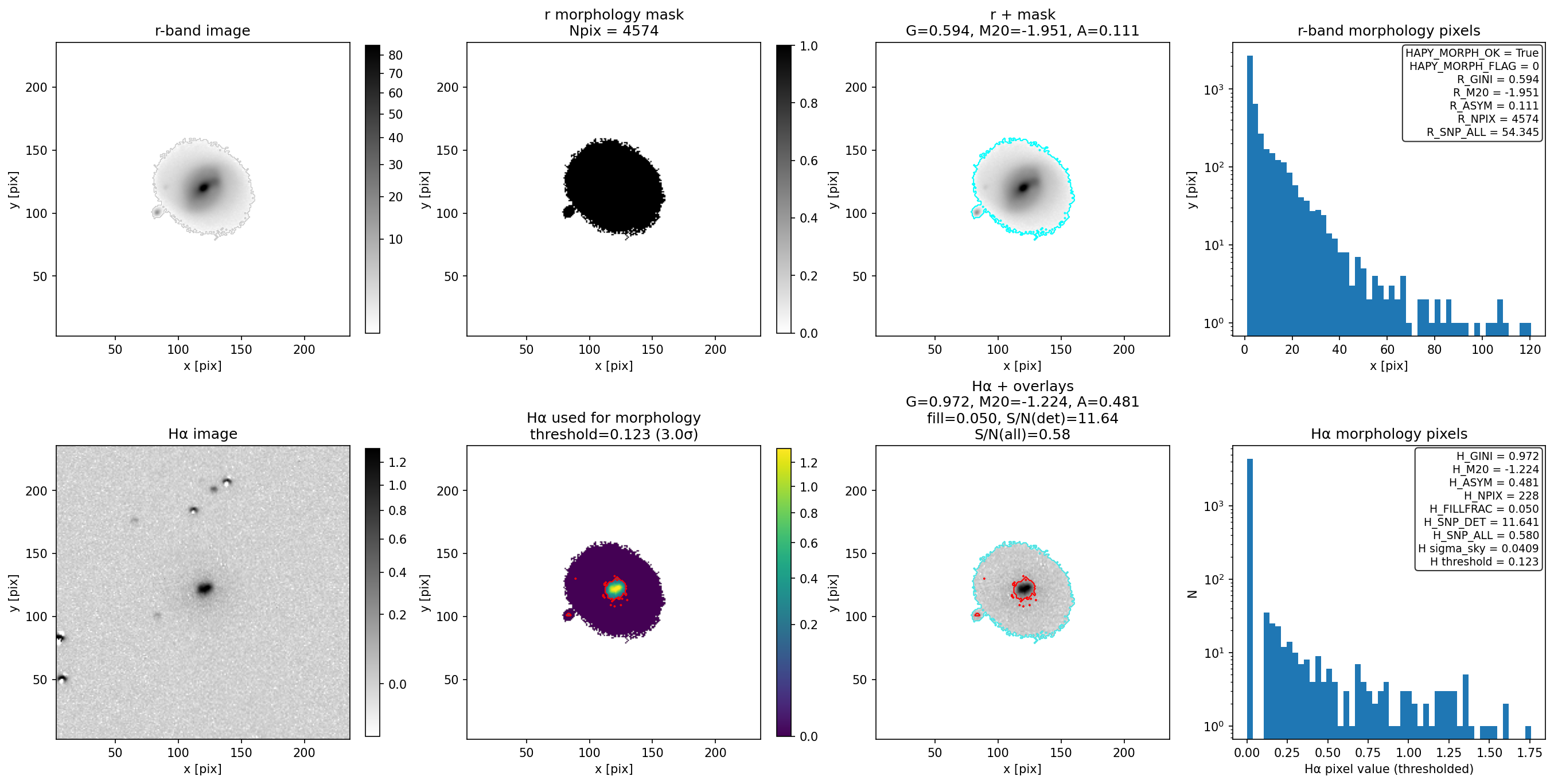

HAPY Morphology: VFID3451-NGC6276-BOK-20210418-VFID3459-R-hapy-morphology-diag.png

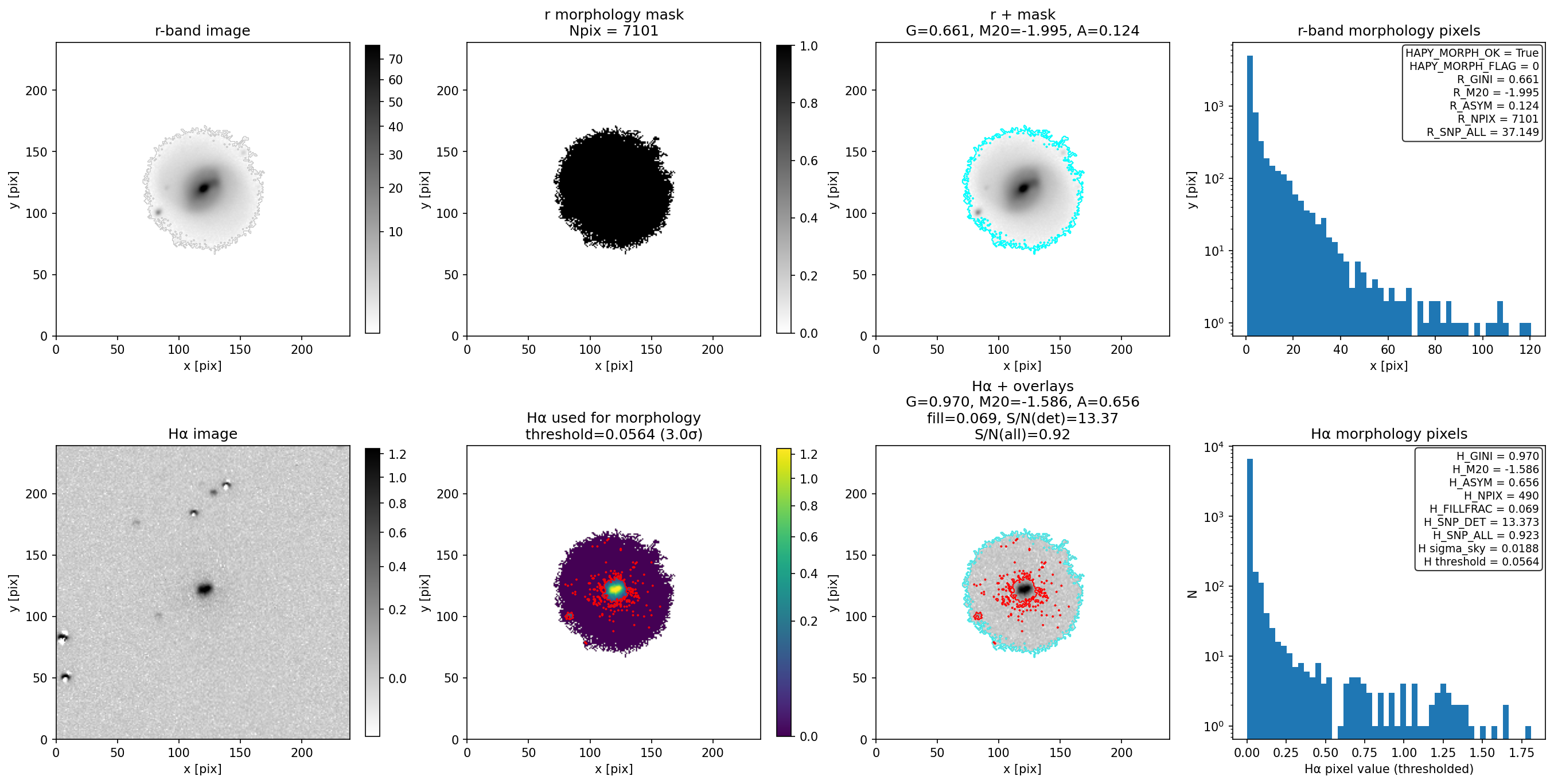

HAPY Morphology: VFID3451-NGC6276-BOK-20210418-VFID3459-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 119.99 | 120.27 | 0.53 | -1.90 | 3.06 | 0.05 | 0.01 | -- | 2 | 0 |
| Hα | 120.11 | 120.60 | 0.56 | -1.52 | 2.61 | 0.12 | 0.06 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3451-NGC6276-BOK-20210418-VFID3459-R-statmorph-r.pdf
Hα statmorph: VFID3451-NGC6276-BOK-20210418-VFID3459-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 121.05 | 121.24 | 14.11 | -- | 1.55 | 0.75 | -50.6 | -0.02 | 7.29 | ● OK |
| CV | ● | -- | -- | -- | -- | -- | -- | -- | -- | -- | ● OK |
GALFIT r-band Modeling + Convolution
