Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3388 | NGC5016 | 0.4.1 | 2026-06-30 | BOK | 20220425-VFID3391 | 1.70 | 1.53 | -- | 1.01 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

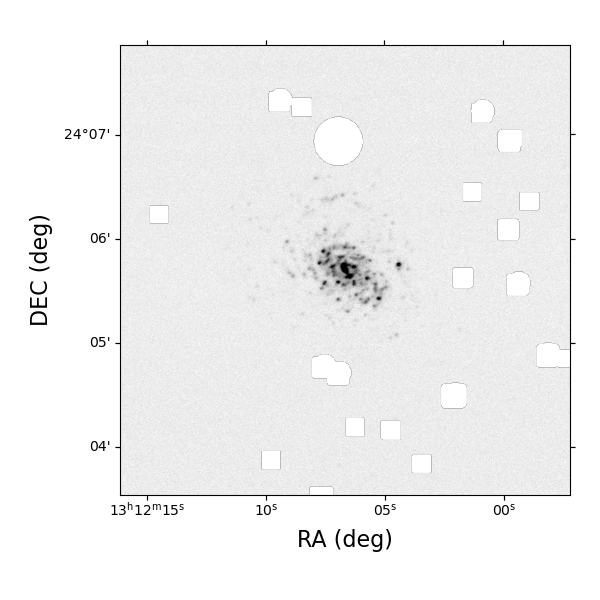

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.97 |
|---|
 |  |  |  | |

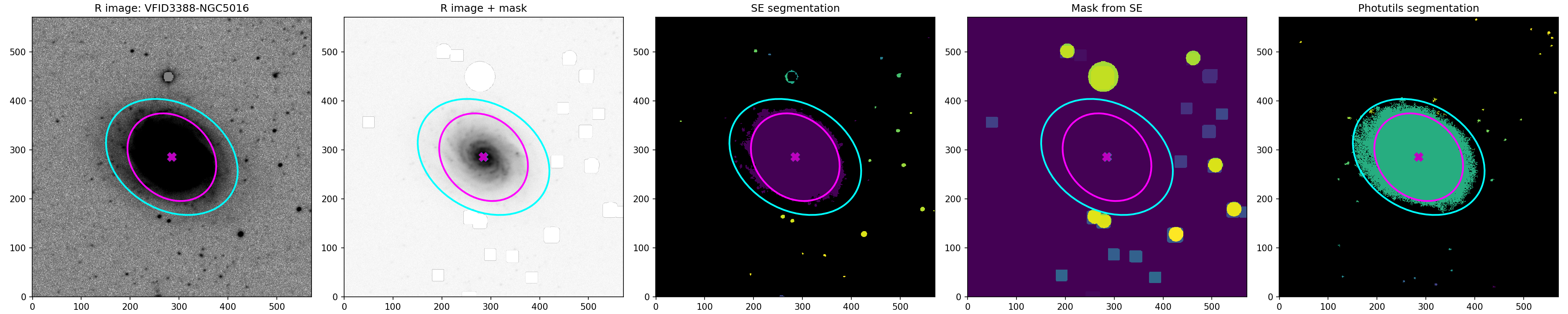

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.00 | 0.00 | ● | ● | ● | -- | -- | -- | 0.24 | 0.24 |
| HAPY Mask |
|---|
 |
Elliptical Photometry

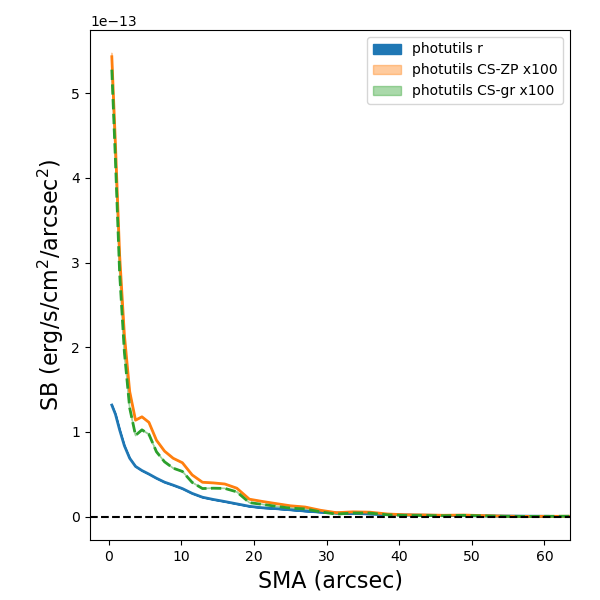

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 12.31 | 12.28 | 12.27 | 12.25 | 12.22 | 12.30 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 7.78e-13 | 7.11e-13 | 7.68e-13 | 7.75e-13 | 0.53 | 171.5 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 105 | 105 | 283 | 158 | ● | 1 | 0.14 | 0.81 | 0.14 | 0.23 | 0.29 | 1.60 | 0.18 | 1.4 | 12.5 | 55.6 | 1.5 |
| CS-GR | ok | 98 | 98 | 276 | 146 | ● | 1 | 0.15 | 0.83 | 0.15 | 0.24 | 0.27 | 1.64 | 0.15 | 1.4 | 12.6 | 55.6 | 1.5 |

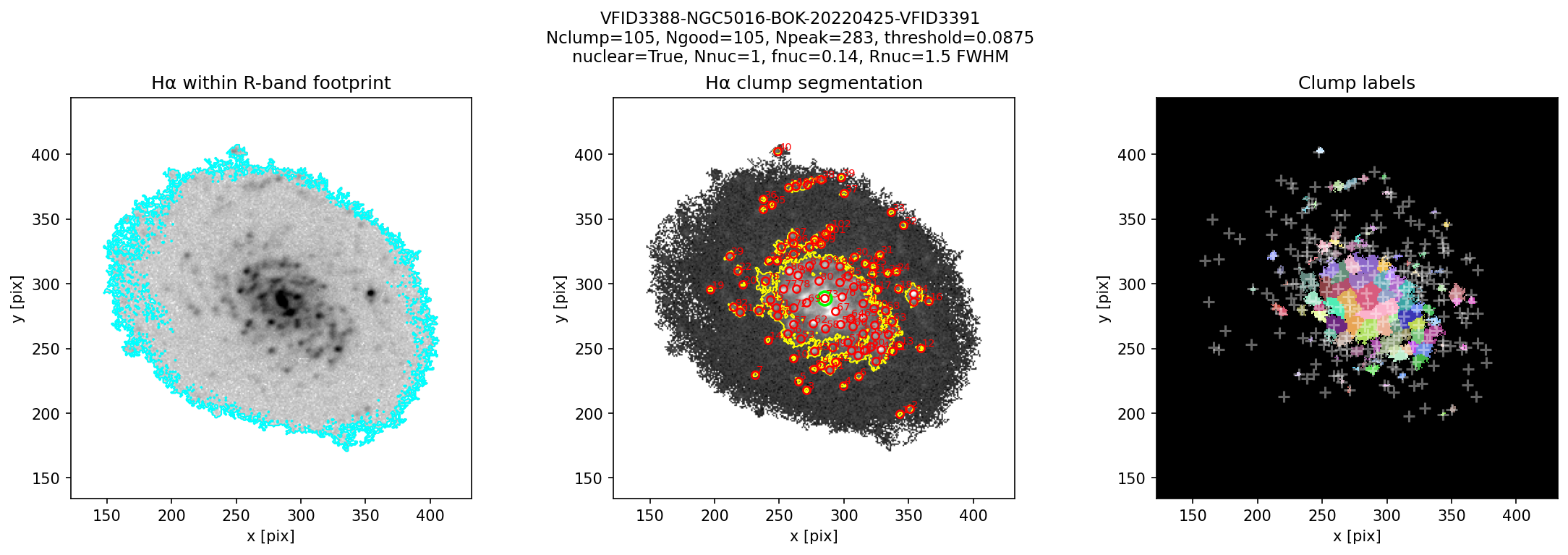

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.63 | -1.97 | 0.56 | -1.91 | 0.17 | 0.46 | 2.47 | ● |
| Hα | 0.51 | -1.39 | 0.86 | -1.08 | 0.90 | 0.53 | -- | ● |
| CS-gr | -- | -1.33 | 0.89 | -1.08 | 1.17 | 0.55 | -- | ● |
HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID3388-NGC5016-BOK-20220425-VFID3391-R-hapy-morphology-diag.png

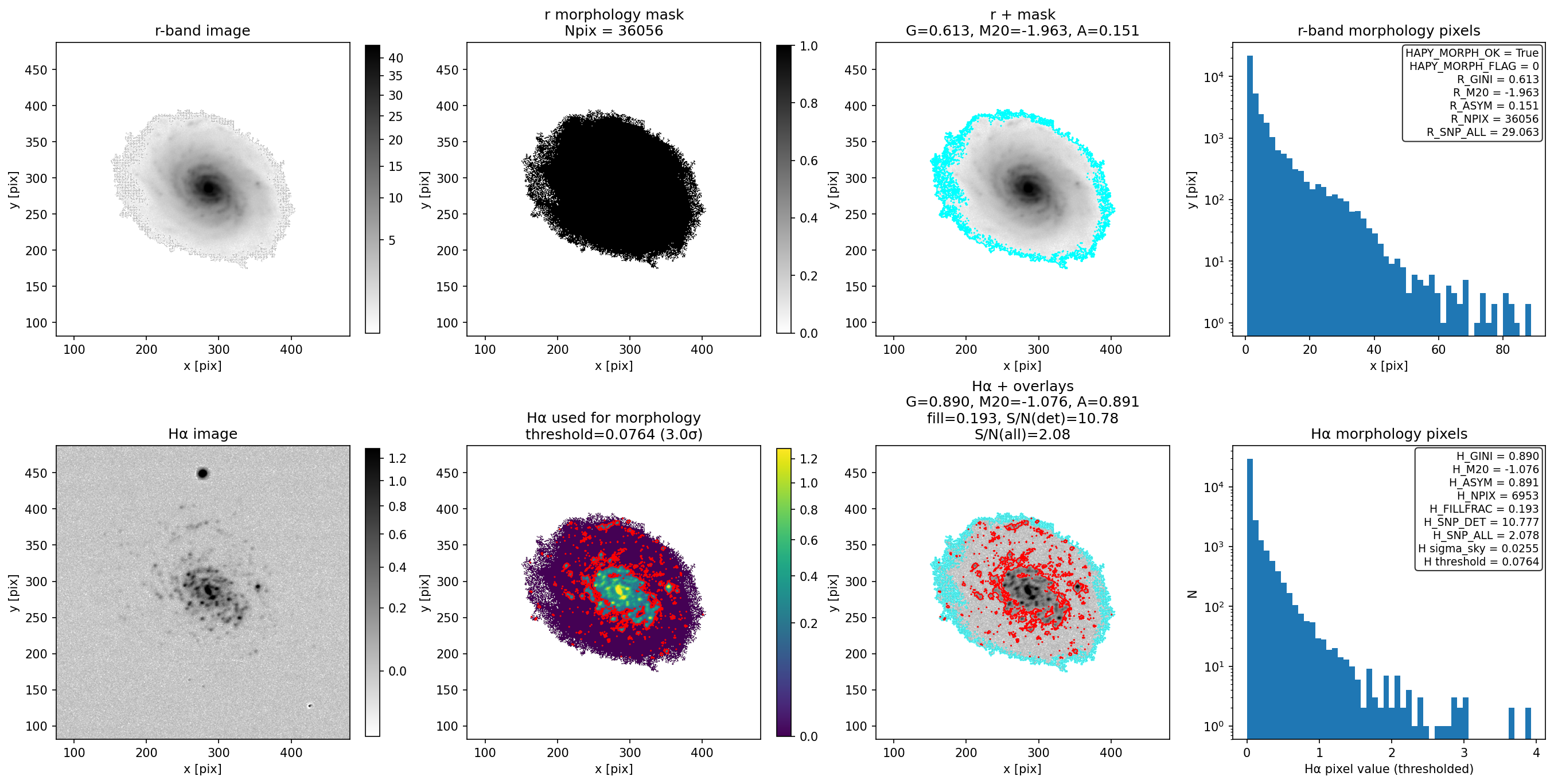

HAPY Morphology: VFID3388-NGC5016-BOK-20220425-VFID3391-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 286.17 | 286.17 | 0.52 | -1.86 | 2.98 | 0.12 | 0.02 | -- | 0 | 0 |
| Hα | 288.27 | 286.40 | 0.54 | -1.06 | 2.94 | 0.42 | 0.15 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3388-NGC5016-BOK-20220425-VFID3391-R-statmorph-r.pdf
Hα statmorph: VFID3388-NGC5016-BOK-20220425-VFID3391-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 287.09 | 286.33 | 12.22 | -- | 1.30 | 0.74 | 57.7 | -0.02 | 2.70 | ● OK |
| CV | ● | 287.02 | 286.23 | 12.21 | -- | 1.33 | 0.73 | 57.6 | -0.02 | 2.79 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
