VFID3357-NGC3098-HDI-20200227-p006
Home
Previous (VFID3354-IC2267-INT-20190207-lmp002)
Next (VFID3358-SDSSJ081753.93+244112.0-INT-20190207-lmp002)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3357 | NGC3098 | 0.4.1 | 2026-06-30 | HDI | 20200227-p006 | 1.68 | 1.61 | -- | 1.40 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

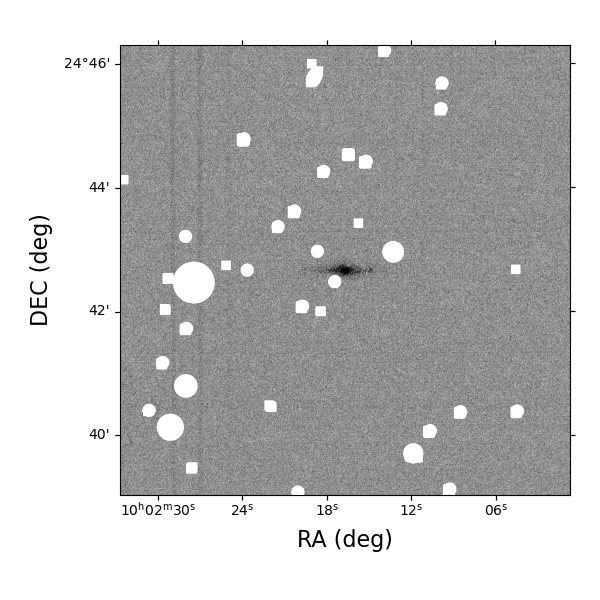

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.87 |
|---|
 |  |  |  | |

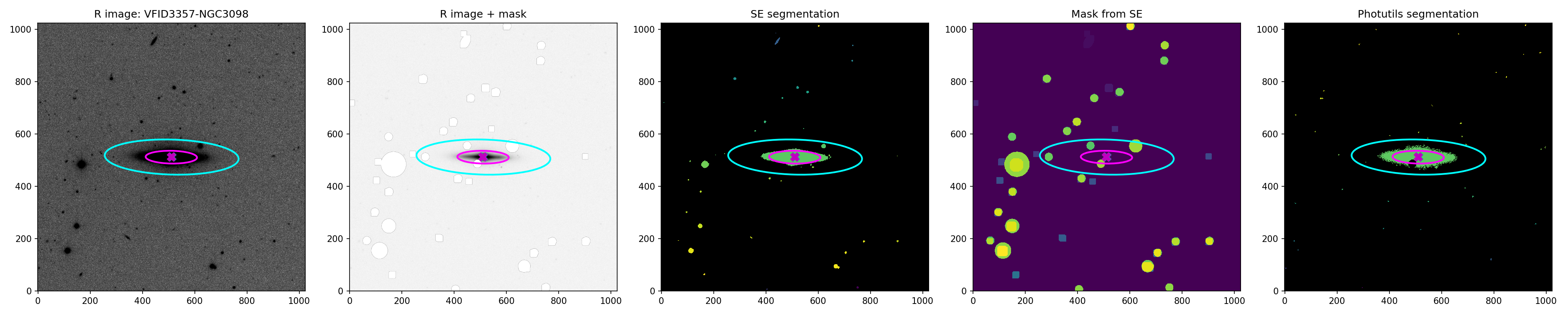

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.08 | 0.03 | ● | ● | ● | -- | -- | -- | 0.10 | 0.10 |
| HAPY Mask |
|---|
 |

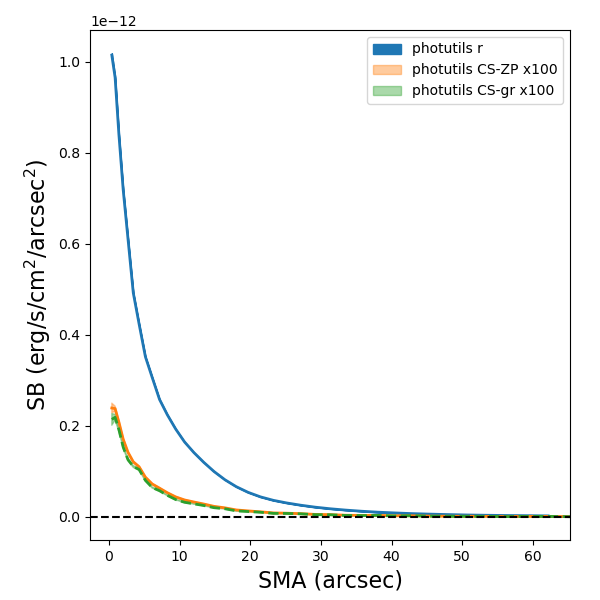

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 11.93 | 11.92 | 11.91 | 11.95 | 11.92 | 11.95 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 1.61e-13 | 1.25e-13 | 1.48e-13 | 1.58e-13 | 0.69 | 169.3 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 19 | 19 | 112 | 42 | ● | 1 | 0.67 | 0.61 | 0.67 | 0.81 | 0.84 | 4.49 | 0.07 | 1.1 | 3.9 | 24.6 | 1.5 |
| CS-GR | ok | 17 | 17 | 107 | 29 | ● | 1 | 0.68 | 0.53 | 0.68 | 0.75 | 0.81 | 9.44 | 0.04 | 0.6 | 3.0 | 24.8 | 1.5 |

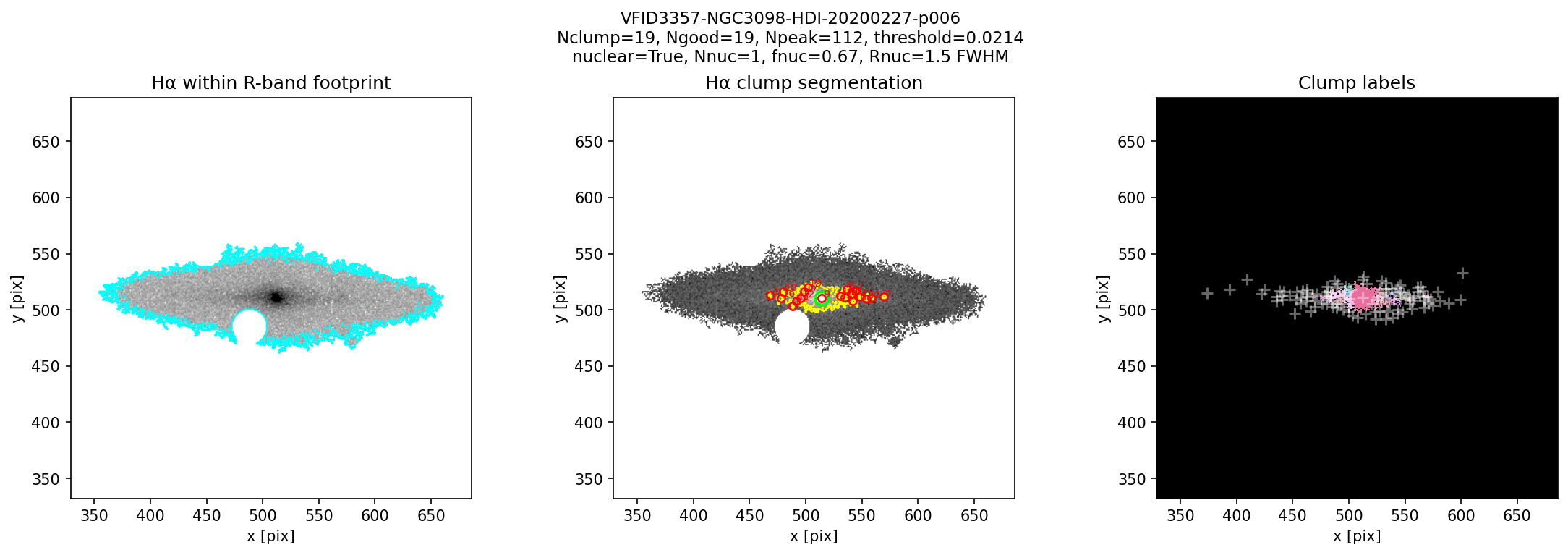

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.73 | -2.56 | 0.72 | -2.54 | 0.14 | 0.69 | 2.72 | ● |
| Hα | 0.41 | -2.57 | 0.94 | -2.31 | 1.51 | 0.69 | -- | ● |
| CS-gr | -- | -2.36 | 0.95 | -2.40 | 2.57 | 0.69 | -- | ● |

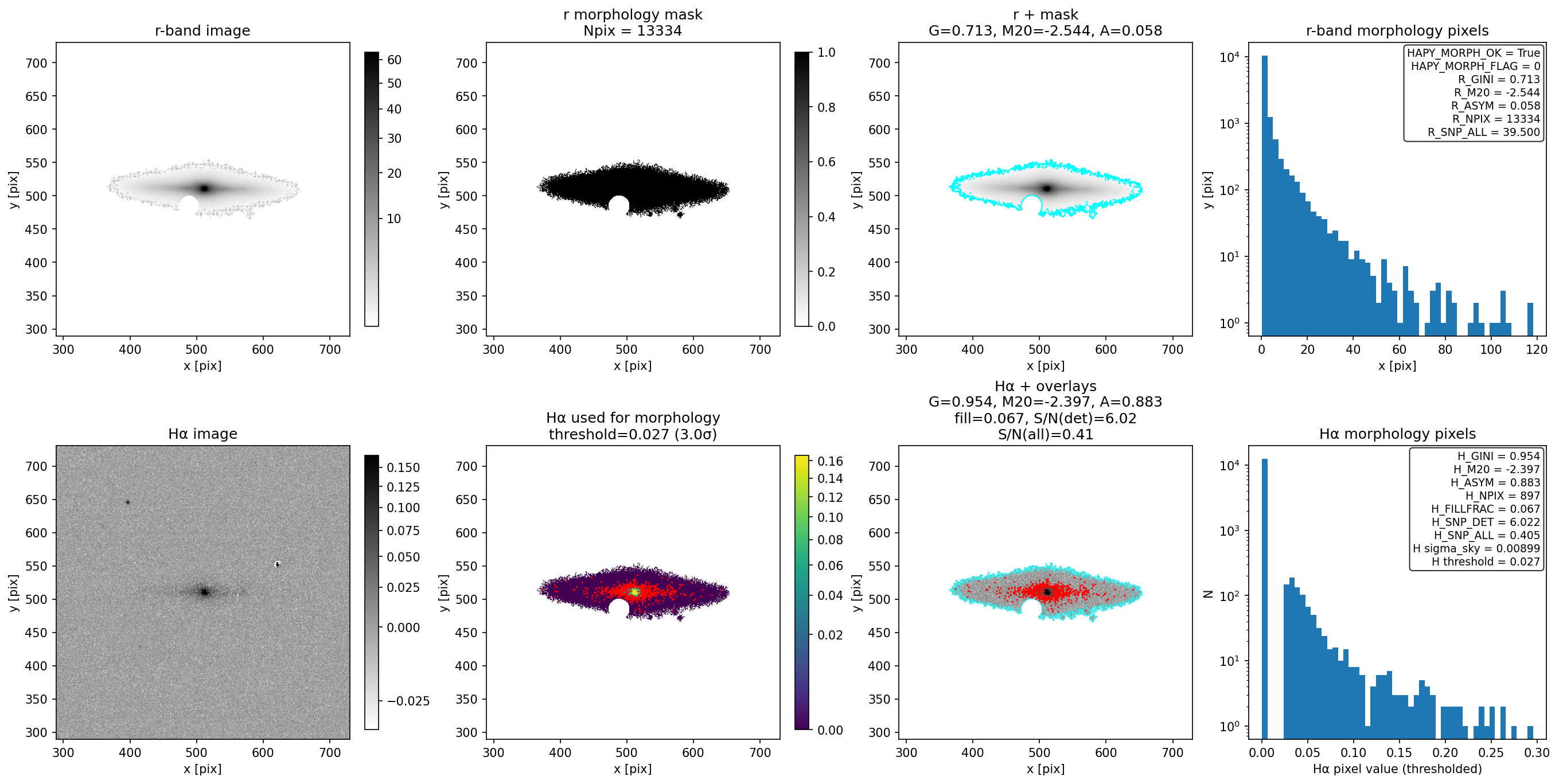

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID3357-NGC3098-HDI-20200227-p006-R-hapy-morphology-diag.png
HAPY Morphology: VFID3357-NGC3098-HDI-20200227-p006-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 510.88 | 511.07 | 0.64 | -2.17 | 3.77 | 0.02 | 0.04 | -- | 0 | 0 |
| Hα | 511.56 | 510.92 | 0.61 | -2.18 | 3.62 | 0.03 | 0.04 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3357-NGC3098-HDI-20200227-p006-R-statmorph-r.pdf
Hα statmorph: VFID3357-NGC3098-HDI-20200227-p006-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 512.38 | 511.85 | 11.92 | -- | 1.66 | 0.29 | 88.9 | 0.00 | 2.39 | ● OK |
| CV | ● | 512.49 | 512.09 | 11.85 | -- | 2.32 | 0.25 | 88.8 | -0.00 | 2.03 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
