VFID3300-UGC05588-INT-20190212-p052
Home
Previous (VFID3297-SDSSJ091525.83+252511.1-INT-20190208-p024)
Next (VFID3315-SDSSJ082711.01+251435.2-INT-20190208-lmp010)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3300 | UGC05588 | 0.4.1 | 2026-06-30 | INT | 20190212-p052 | 1.37 | 1.46 | -- | 1.06 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

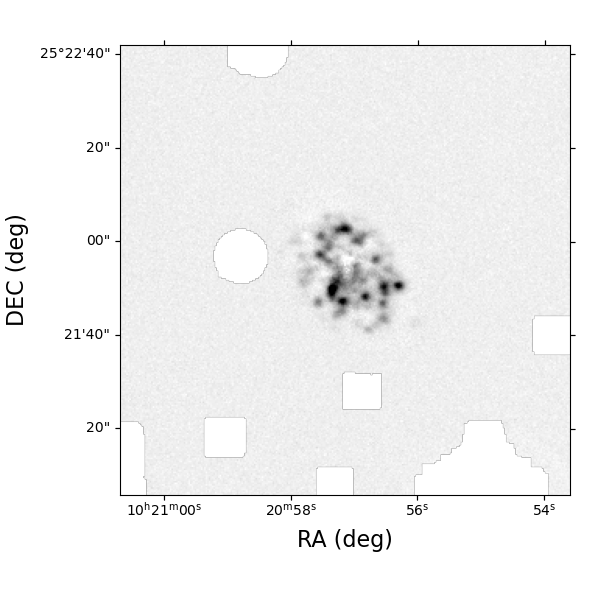

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=1.05 |
|---|
 |  |  |  | |

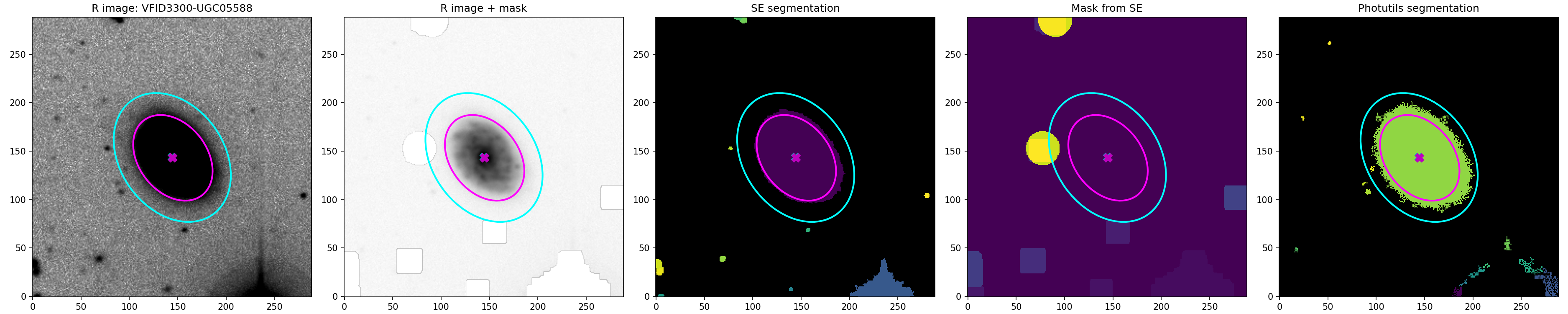

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.02 | 0.00 | ● | ● | ● | -- | -- | -- | 0.12 | 0.12 |
| HAPY Mask |
|---|
 |

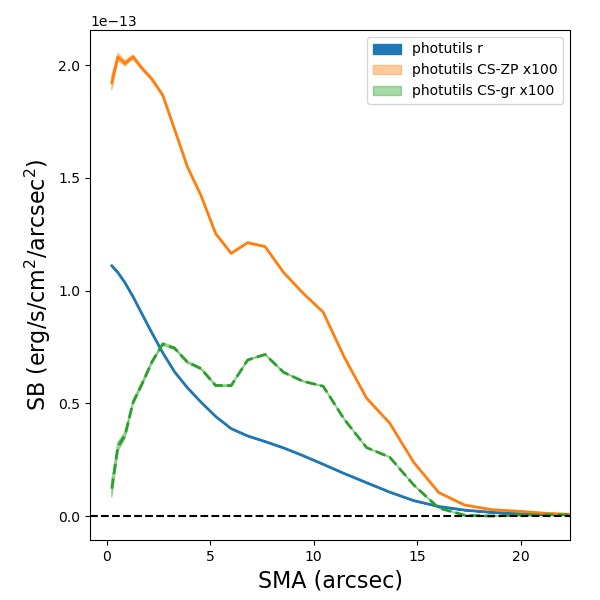

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 13.53 | 13.52 | 13.51 | 13.51 | 13.44 | 13.53 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 4.28e-13 | 4.17e-13 | 4.26e-13 | 4.26e-13 | 0.30 | 25.8 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 23 | 23 | 36 | 34 | ● | 1 | 0.14 | 0.94 | 0.14 | 0.25 | 0.33 | 1.16 | 0.50 | 1.2 | 6.5 | 13.4 | 1.5 |
| CS-GR | ok | 29 | 29 | 48 | 39 | ● | 0 | 0.00 | 0.96 | 0.18 | 0.27 | 0.36 | 2.04 | 0.38 | 3.7 | 7.1 | 13.4 | 1.5 |

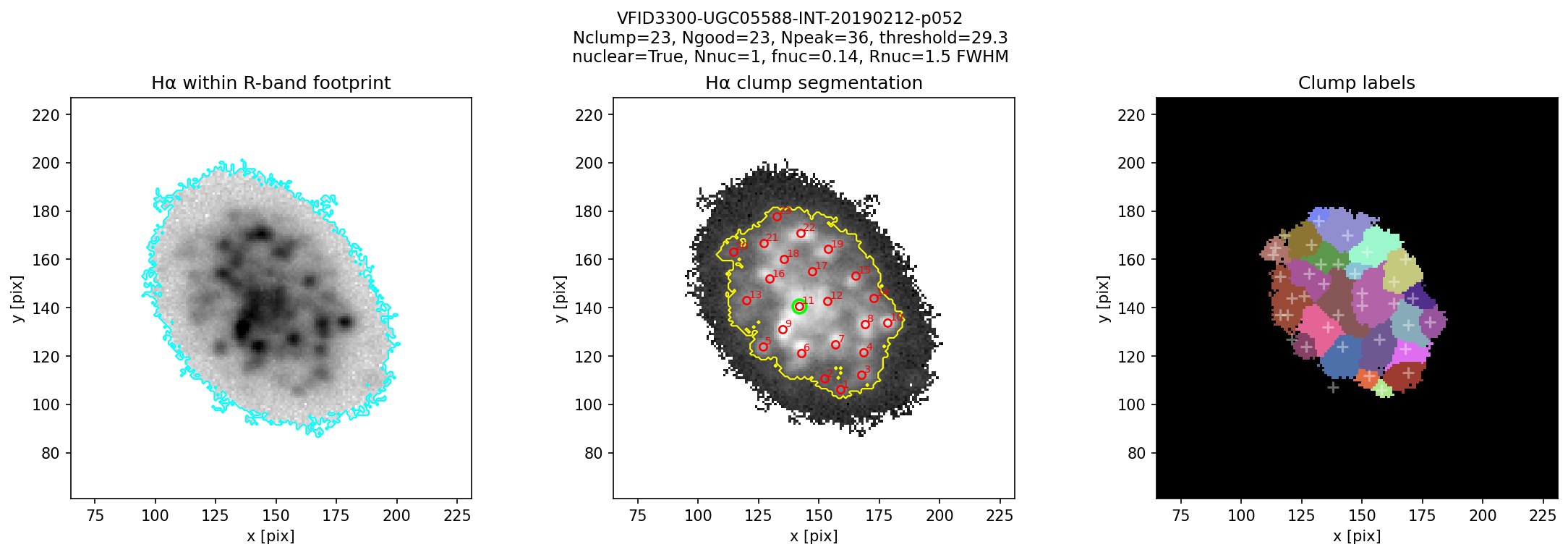

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.57 | -1.75 | 0.54 | -1.75 | 0.15 | 0.35 | 1.79 | ● |
| Hα | 0.47 | -1.05 | 0.58 | -1.04 | 0.58 | 0.30 | 1.60 | ● |
| CS-gr | -- | -0.83 | 0.73 | -0.77 | 1.17 | 0.24 | -- | ● |

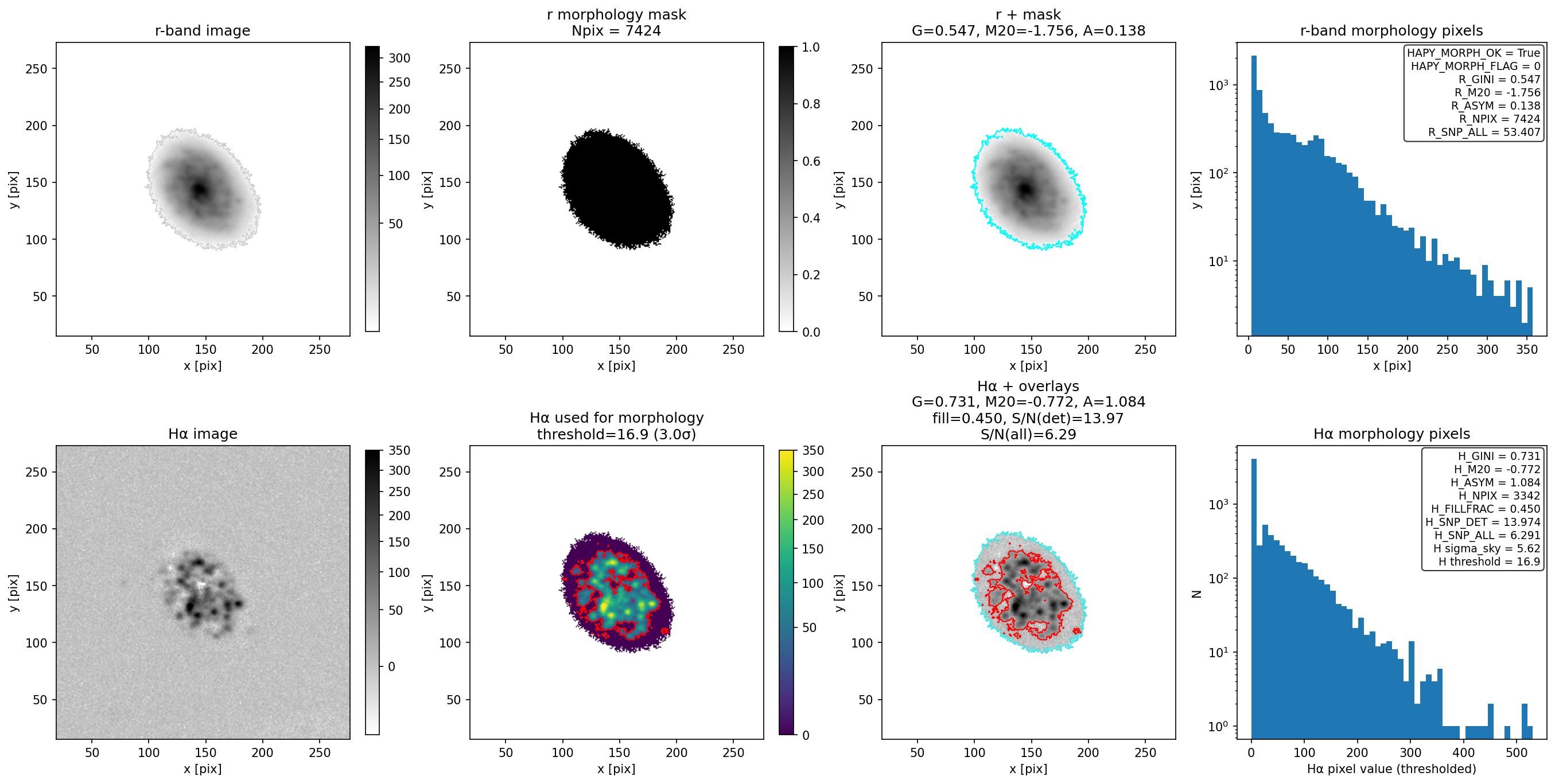

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID3300-UGC05588-INT-20190212-p052-R-hapy-morphology-diag.png
HAPY Morphology: VFID3300-UGC05588-INT-20190212-p052-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 145.85 | 143.72 | 0.38 | -1.71 | 2.37 | 0.12 | 0.02 | -- | 0 | 0 |
| Hα | 146.84 | 142.35 | 0.38 | -0.99 | 1.97 | 0.44 | 0.07 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3300-UGC05588-INT-20190212-p052-R-statmorph-r.pdf
Hα statmorph: VFID3300-UGC05588-INT-20190212-p052-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 145.91 | 144.87 | 13.44 | -- | 0.78 | 0.72 | 32.8 | -0.20 | 11.51 | ● OK |
| CV | ● | -- | -- | -- | -- | -- | -- | -- | -- | -- | ● OK |
GALFIT r-band Modeling + Convolution
