VFID3276-WISEAJ082639.18+253553.5-BOK-20220425-VFID3248
Home
Previous (VFID3274-UGC04722-INT-20190207-p021)
Next (VFID3276-WISEAJ082639.18+253553.5-INT-20190208-lmp010)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3276 | WISEAJ082639.18+253553.5 | 0.4.1 | 2026-06-30 | BOK | 20220425-VFID3248 | 1.24 | 1.43 | -- | 1.01 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

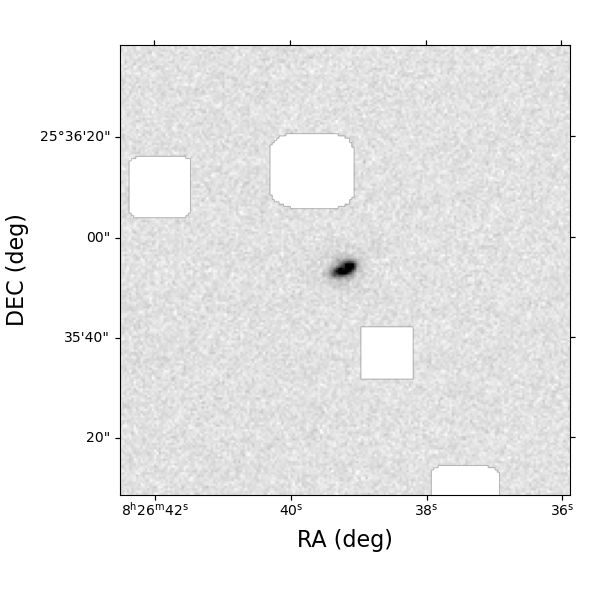

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.94 |
|---|
 |  |  |  | |

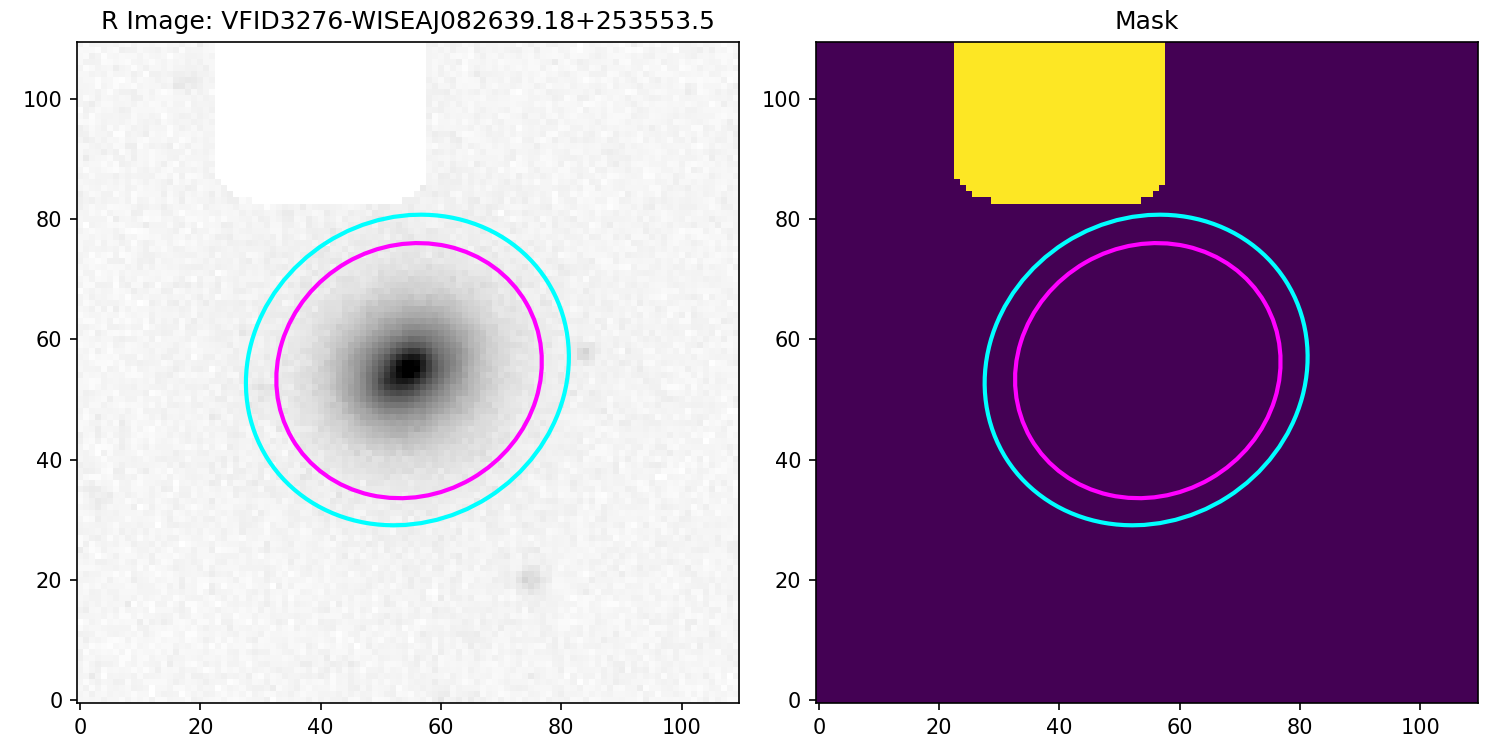

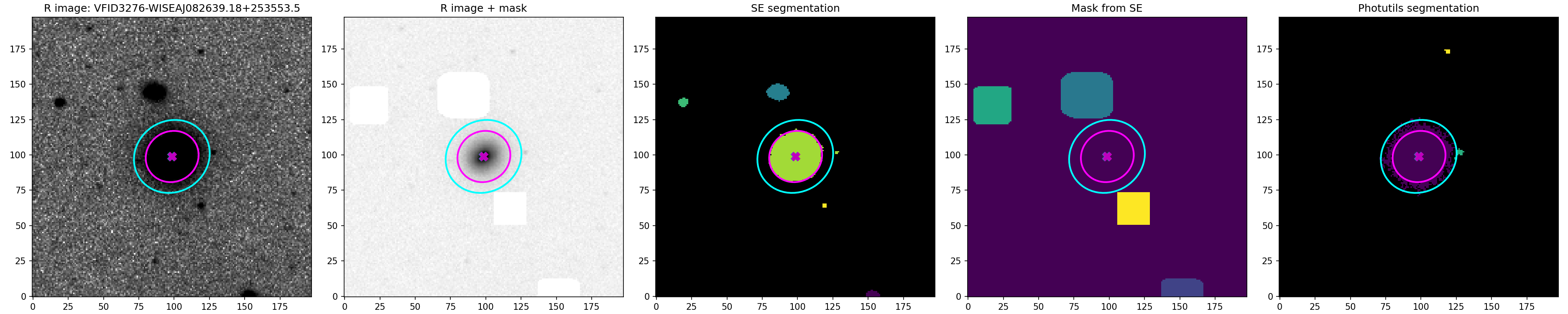

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.00 | 0.00 | ● | ● | ● | -- | -- | -- | 0.14 | 0.14 |
| HAPY Mask |
|---|
 |

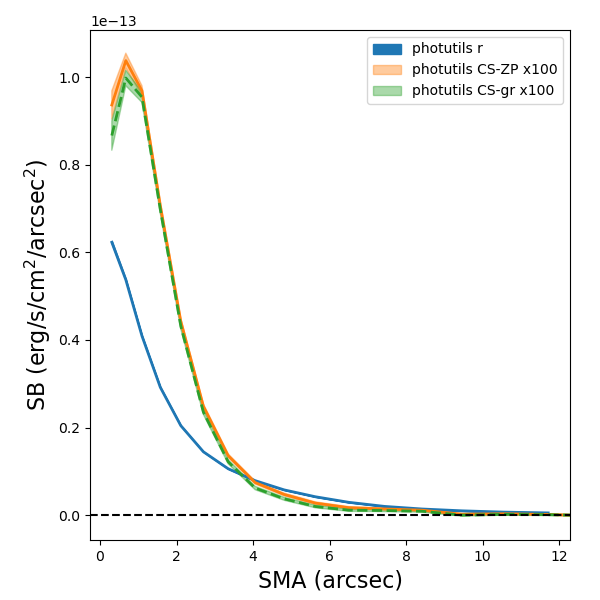

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 16.16 | 16.07 | 16.05 | 16.04 | 16.02 | 16.12 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 1.67e-14 | 1.39e-14 | 1.53e-14 | 1.69e-14 | 0.68 | 8.4 |

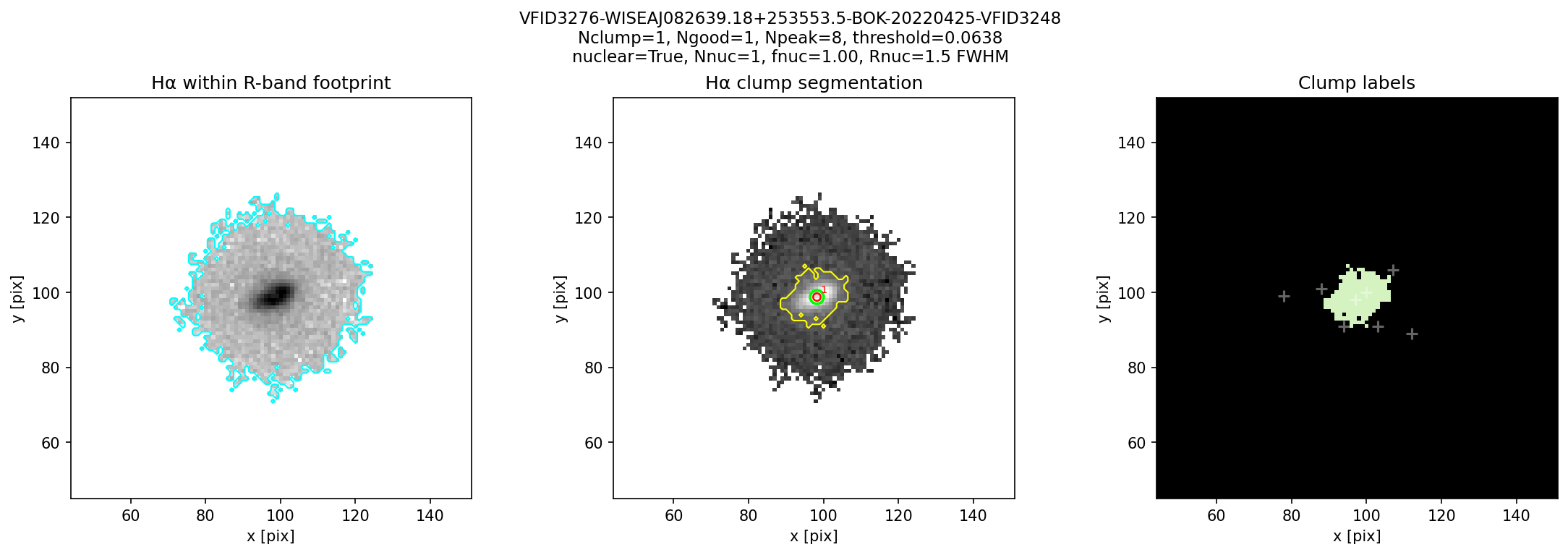

Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 1 | 1 | 8 | 2 | ● | 1 | 1.00 | 0.79 | 1.00 | 1.00 | 1.00 | -- | 0.10 | 0.1 | 0.1 | 0.1 | 1.5 |
| CS-GR | ok | 1 | 1 | 6 | 2 | ● | 1 | 1.00 | 0.82 | 1.00 | 1.00 | 1.00 | -- | 0.09 | 0.1 | 0.1 | 0.1 | 1.5 |
| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.60 | -2.07 | 0.53 | -1.95 | 0.24 | 0.44 | 2.66 | ● |
| Hα | 0.54 | -1.96 | 0.92 | -1.14 | 1.01 | 0.68 | 2.68 | ● |
| CS-gr | -- | -1.94 | 0.94 | -1.19 | 1.22 | 0.73 | 2.45 | ● |

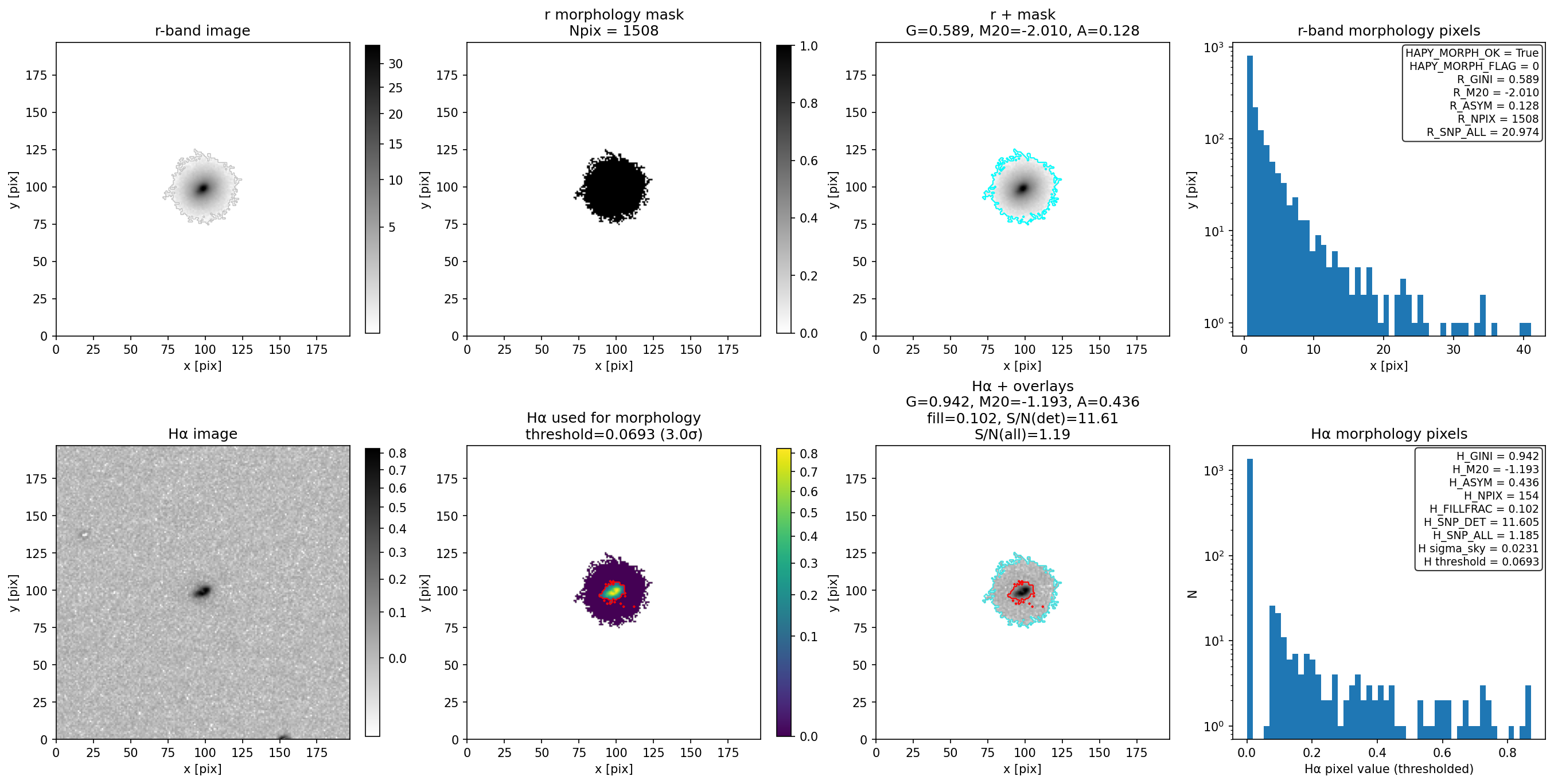

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID3276-WISEAJ082639.18+253553.5-BOK-20220425-VFID3248-R-hapy-morphology-diag.png
HAPY Morphology: VFID3276-WISEAJ082639.18+253553.5-BOK-20220425-VFID3248-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 98.66 | 98.90 | 0.53 | -1.97 | 3.19 | 0.00 | 0.01 | -- | 0 | 0 |
| Hα | 98.27 | 98.95 | 0.52 | -1.32 | 2.63 | 0.03 | 0.07 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3276-WISEAJ082639.18+253553.5-BOK-20220425-VFID3248-R-statmorph-r.pdf
Hα statmorph: VFID3276-WISEAJ082639.18+253553.5-BOK-20220425-VFID3248-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 99.50 | 99.87 | 16.02 | -- | 1.51 | 0.81 | -55.9 | 0.00 | 1.23 | ● OK |
| CV | ● | 99.42 | 99.79 | 15.93 | -- | 2.16 | 0.79 | -54.7 | -0.01 | 1.25 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
