VFID3261-UGC04418-INT-20190208-lmp010
Home
Previous (VFID3261-UGC04418-BOK-20220425-VFID3248)
Next (VFID3261-UGC04418-INT-20190209-lmp011)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3261 | UGC04418 | 0.4.1 | 2026-06-30 | INT | 20190208-lmp010 | 1.45 | 1.38 | -- | 1.39 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

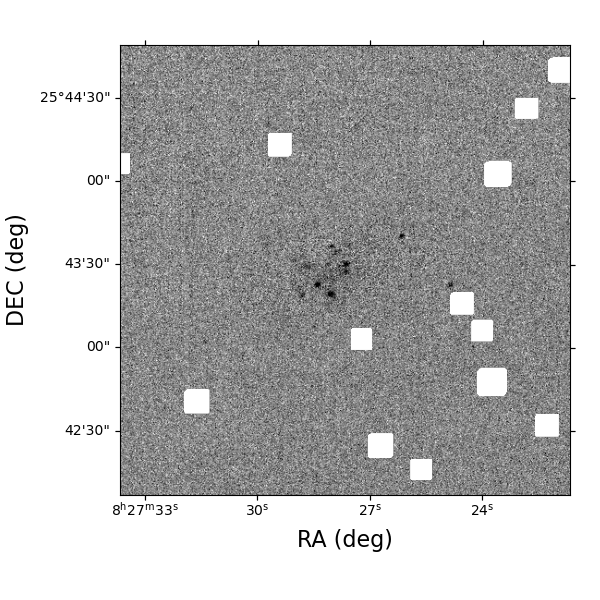

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.86 |
|---|
 |  |  |  | |

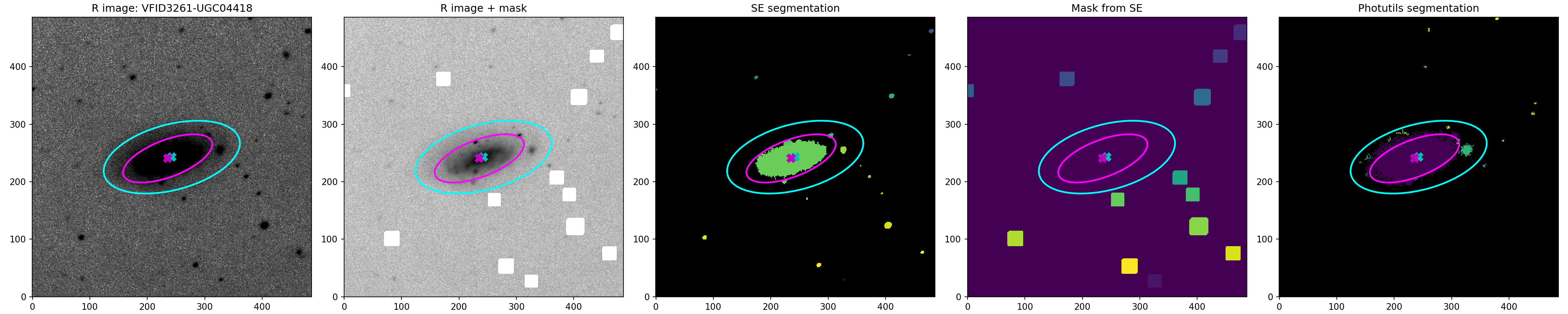

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.00 | 0.00 | ● | ● | ● | -- | -- | -- | 0.03 | 0.03 |
| HAPY Mask |
|---|
 |

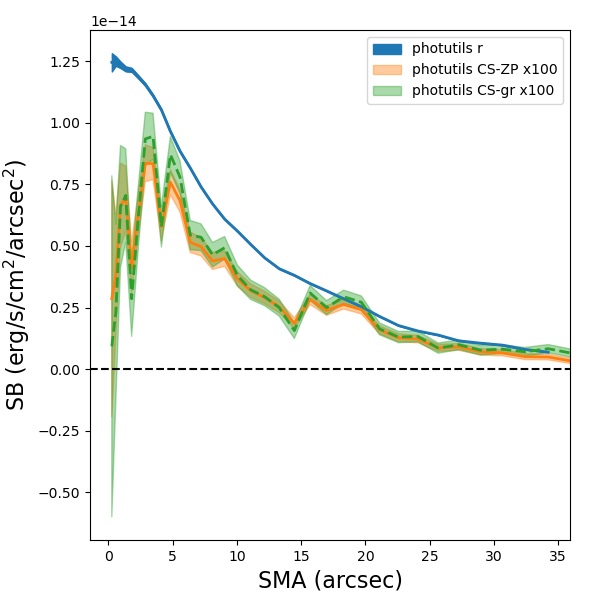

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 15.09 | 14.97 | 14.94 | 14.88 | 14.82 | 15.12 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 2.44e-14 | 3.60e-15 | 1.60e-14 | 2.24e-14 | 0.27 | 38.0 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 6 | 6 | 28 | 6 | ● | 1 | 0.06 | 0.13 | 0.28 | 0.54 | 0.76 | 1.05 | 0.01 | 10.0 | 9.6 | 24.0 | 1.5 |
| CS-GR | ok | 5 | 5 | 28 | 5 | ● | 0 | 0.00 | 0.17 | 0.29 | 0.57 | 0.79 | 1.02 | 0.01 | 10.0 | 10.5 | 24.0 | 1.5 |

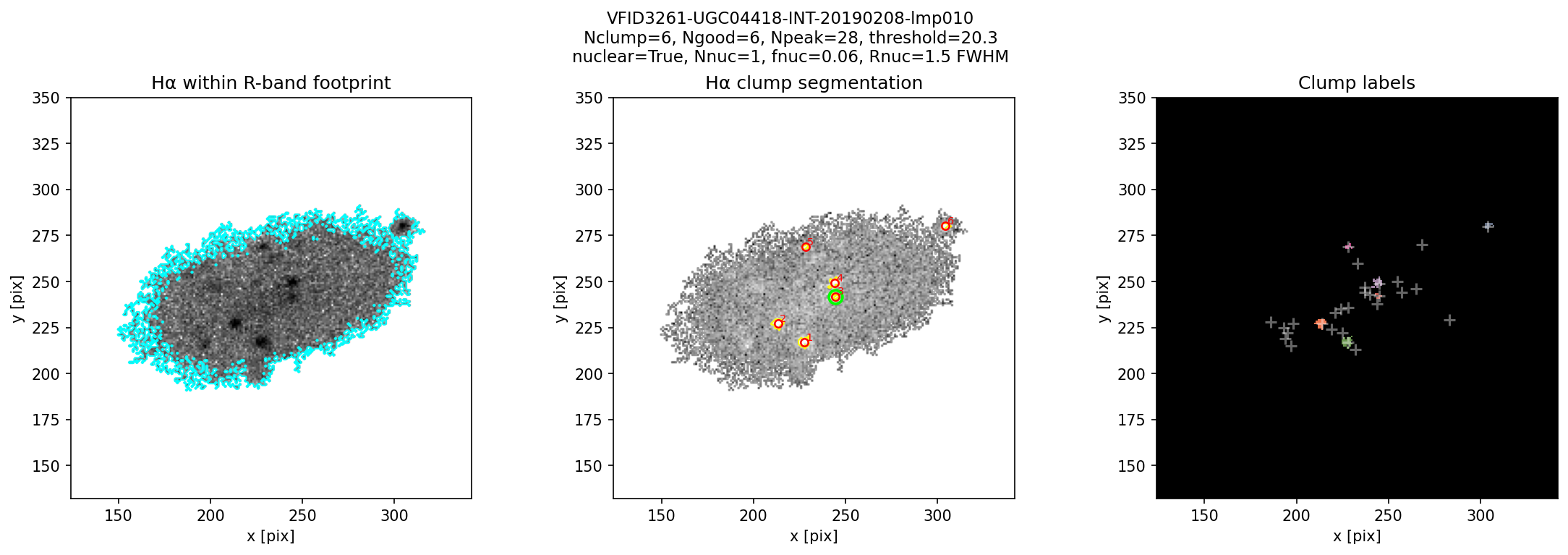

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.38 | -1.32 | 0.34 | -1.57 | 0.25 | 0.28 | 2.12 | ● |
| Hα | 0.22 | -0.86 | 0.62 | -0.92 | 3.49 | 0.27 | 1.81 | ● |
| CS-gr | -- | -0.82 | 0.98 | -0.66 | 5.57 | 0.27 | -- | ● |

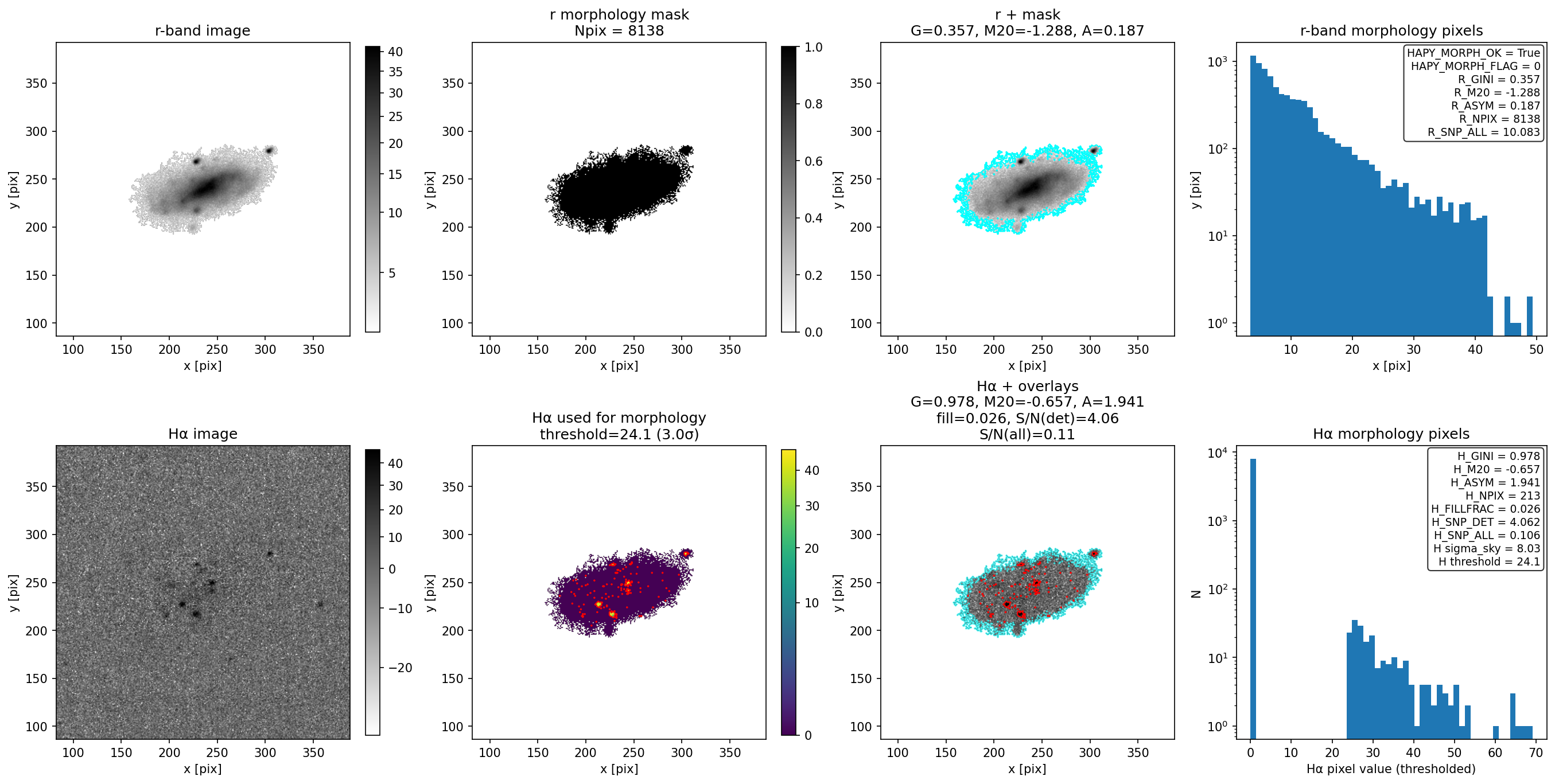

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID3261-UGC04418-INT-20190208-lmp010-R-hapy-morphology-diag.png
HAPY Morphology: VFID3261-UGC04418-INT-20190208-lmp010-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 235.96 | 240.29 | 0.52 | -1.42 | 2.78 | 0.08 | 0.00 | -- | 0 | 0 |
| Hα | 232.80 | 238.56 | 0.43 | -0.78 | 2.44 | -0.10 | 0.21 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3261-UGC04418-INT-20190208-lmp010-R-statmorph-r.pdf
Hα statmorph: VFID3261-UGC04418-INT-20190208-lmp010-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 239.10 | 241.34 | 14.82 | -- | 1.05 | 0.43 | -71.0 | -0.04 | 1.42 | ● OK |
| CV | ● | 238.67 | 241.25 | 14.81 | -- | 1.10 | 0.42 | -71.1 | -0.05 | 1.43 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
