VFID3258-SDSSJ082918.70+254503.3-INT-20190210-lmp013
Home
Previous (VFID3258-SDSSJ082918.70+254503.3-BOK-20220425-VFID3248)
Next (VFID3261-UGC04418-BOK-20220425-VFID3248)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3258 | SDSSJ082918.70+254503.3 | 0.4.1 | 2026-06-30 | INT | 20190210-lmp013 | 1.70 | 1.89 | -- | 1.18 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

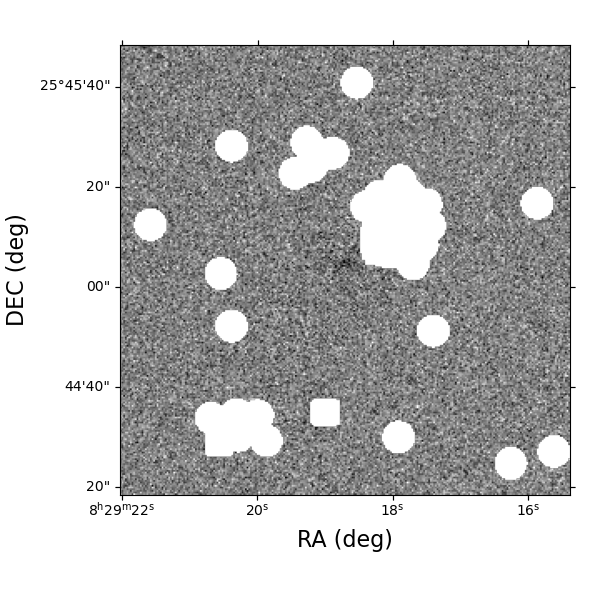

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.86 |
|---|
 |  |  |  | |

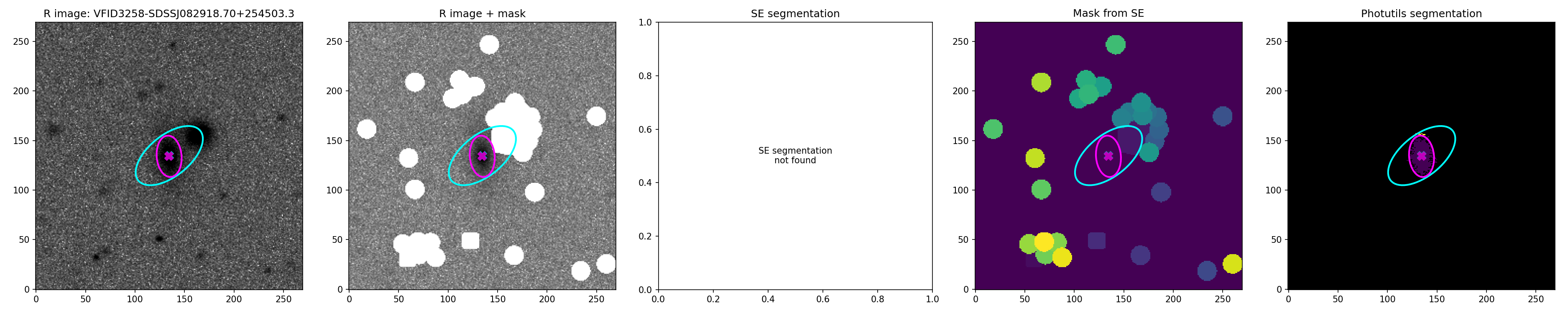

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.24 | 0.01 | ● | ● | ● | -- | -- | -- | 0.24 | 0.24 |

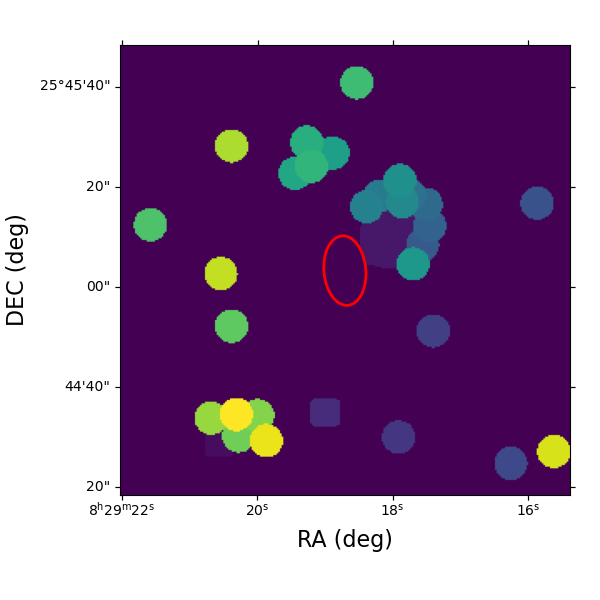

| HAPY Mask |
|---|
 |

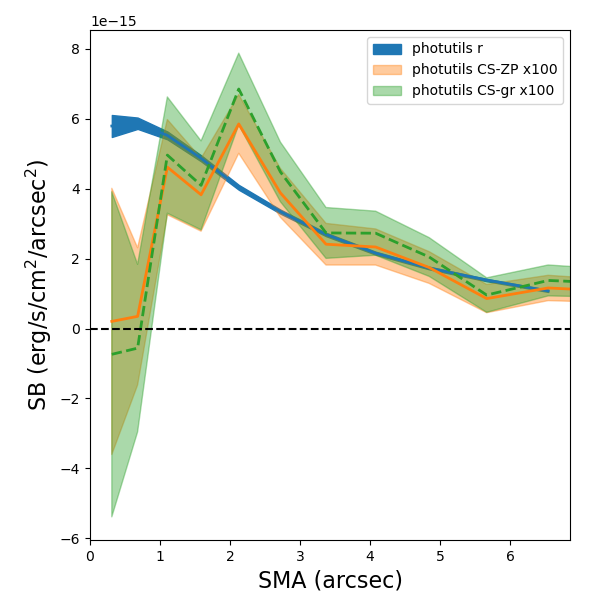

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 18.22 | 17.88 | 17.83 | 17.66 | 17.52 | 18.31 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 5.43e-15 | 4.89e-16 | 1.30e-15 | 1.73e-15 | 0.22 | 40.2 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 0 | 0 | 5 | 0 | ● | 0 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | 1.5 |
| CS-GR | ok | 0 | 0 | 5 | 0 | ● | 0 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | 1.5 |

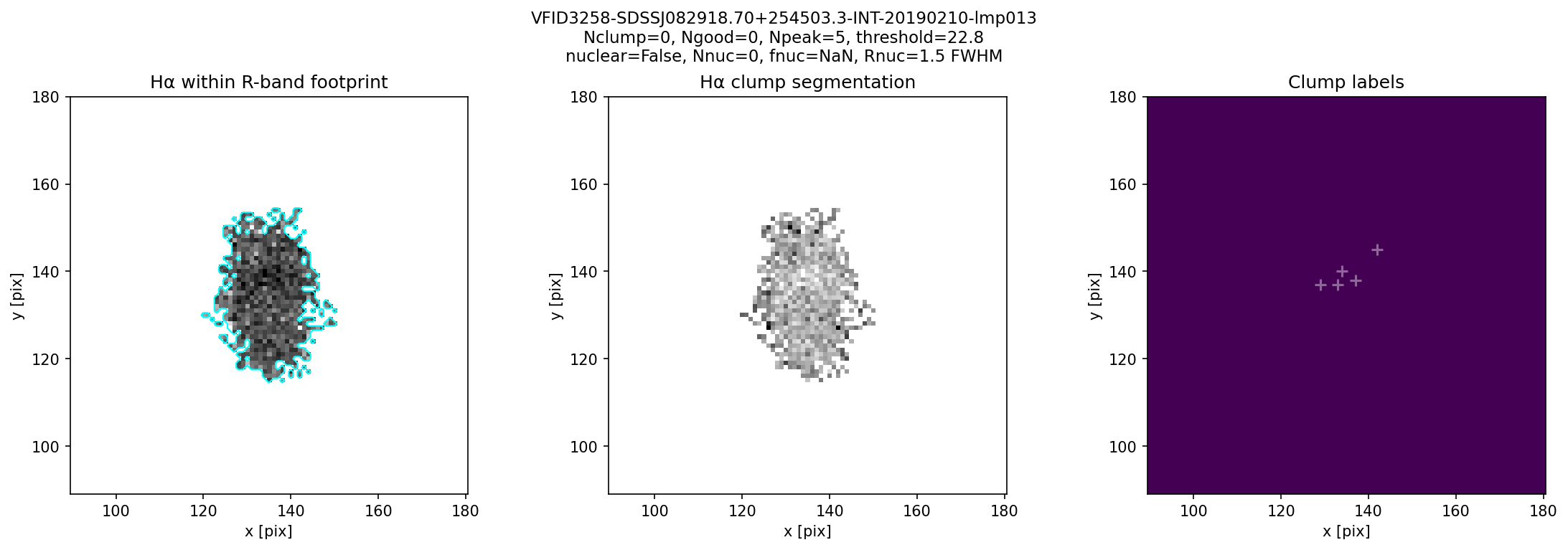

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.26 | -1.70 | 0.25 | -1.67 | 0.21 | 0.23 | 2.50 | ● |
| Hα | 0.15 | -0.99 | 0.68 | -0.84 | 5.03 | 0.22 | -- | ● |
| CS-gr | -- | -0.95 | 0.98 | -1.06 | 6.06 | 0.21 | -- | ● |

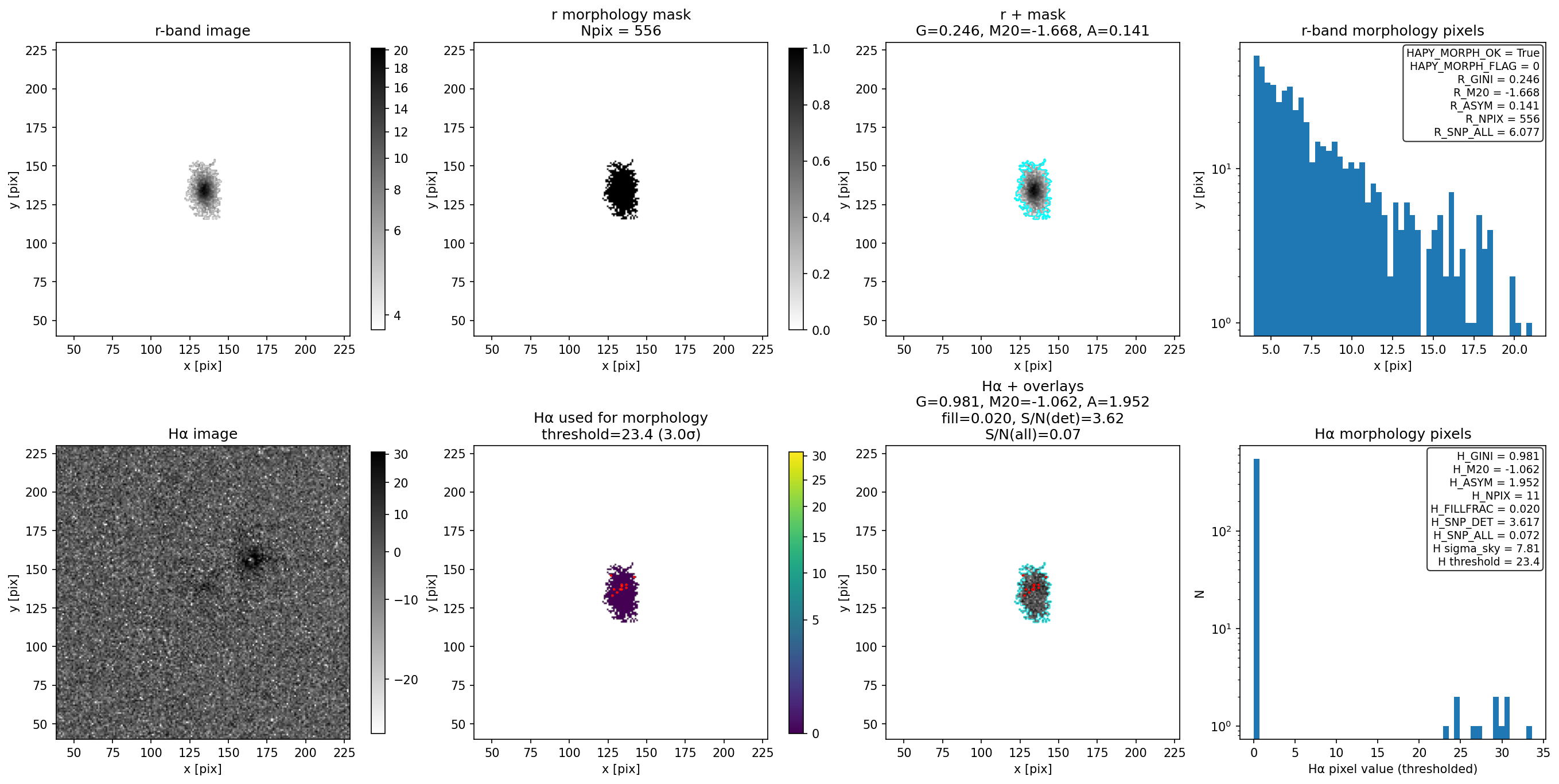

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID3258-SDSSJ082918.70+254503.3-INT-20190210-lmp013-R-hapy-morphology-diag.png
HAPY Morphology: VFID3258-SDSSJ082918.70+254503.3-INT-20190210-lmp013-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 134.71 | 134.49 | 0.54 | -1.77 | 2.62 | -0.16 | -0.36 | -- | 1 | 0 |
| Hα | 135.49 | 134.89 | 0.44 | -0.81 | 2.59 | -0.05 | -0.28 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3258-SDSSJ082918.70+254503.3-INT-20190210-lmp013-R-statmorph-r.pdf
Hα statmorph: VFID3258-SDSSJ082918.70+254503.3-INT-20190210-lmp013-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 135.47 | 135.39 | 17.52 | -- | 1.21 | 0.57 | 4.4 | -0.04 | 1.19 | ● OK |
| CV | ● | 135.14 | 135.24 | 17.42 | -- | 1.77 | 0.50 | 4.5 | -0.06 | 1.19 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
