VFID3200-NGC3899-HDI-20200227-p021
Home
Previous (VFID3183-UGC06791-INT-20190208-p091)
Next (VFID3202-WISEAJ082717.38+262606.7-BOK-20220425-VFID3248)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3200 | NGC3899 | 0.4.1 | 2026-06-30 | HDI | 20200227-p021 | 2.34 | 2.48 | -- | 1.03 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

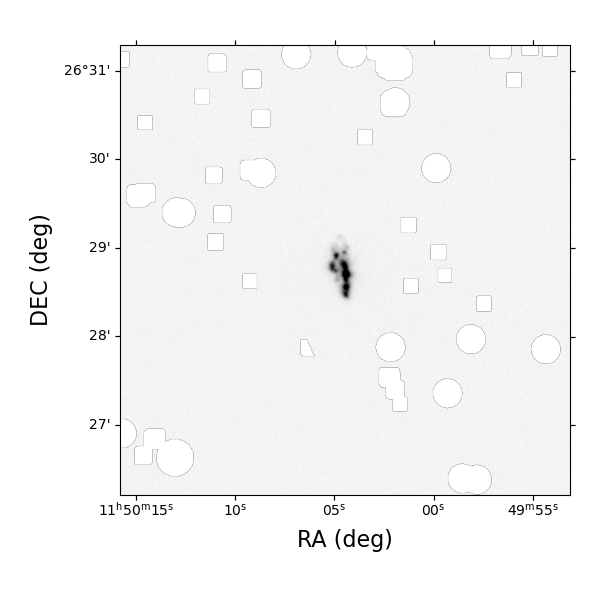

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.91 |
|---|
 |  |  |  | |
Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.01 | 0.00 | ● | ● | ● | -- | -- | -- | 0.08 | 0.08 |

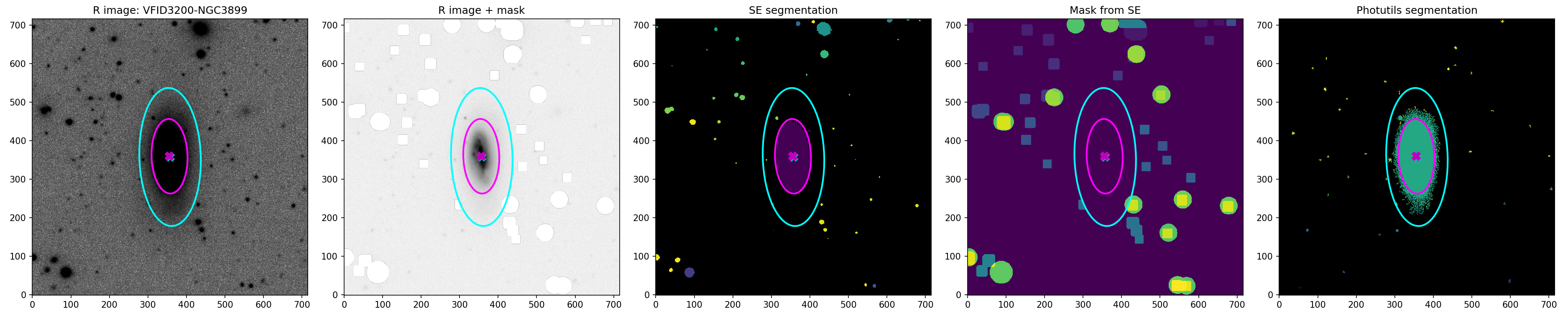

| HAPY Mask |
|---|
 |
Elliptical Photometry

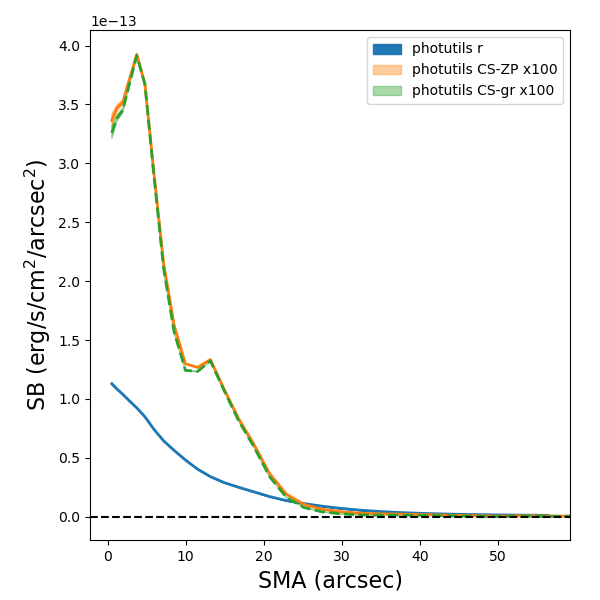

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 12.56 | 12.50 | 12.49 | 12.50 | 12.56 | 12.59 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 8.68e-13 | 8.13e-13 | 8.40e-13 | 8.61e-13 | 0.77 | 70.8 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 10 | 10 | 113 | 43 | ● | 1 | 0.30 | 0.93 | 0.30 | 0.47 | 0.61 | 1.79 | 0.19 | 3.5 | 8.1 | 22.5 | 1.5 |
| CS-GR | ok | 10 | 10 | 103 | 34 | ● | 1 | 0.30 | 0.95 | 0.30 | 0.47 | 0.61 | 1.86 | 0.17 | 3.5 | 8.0 | 22.5 | 1.5 |

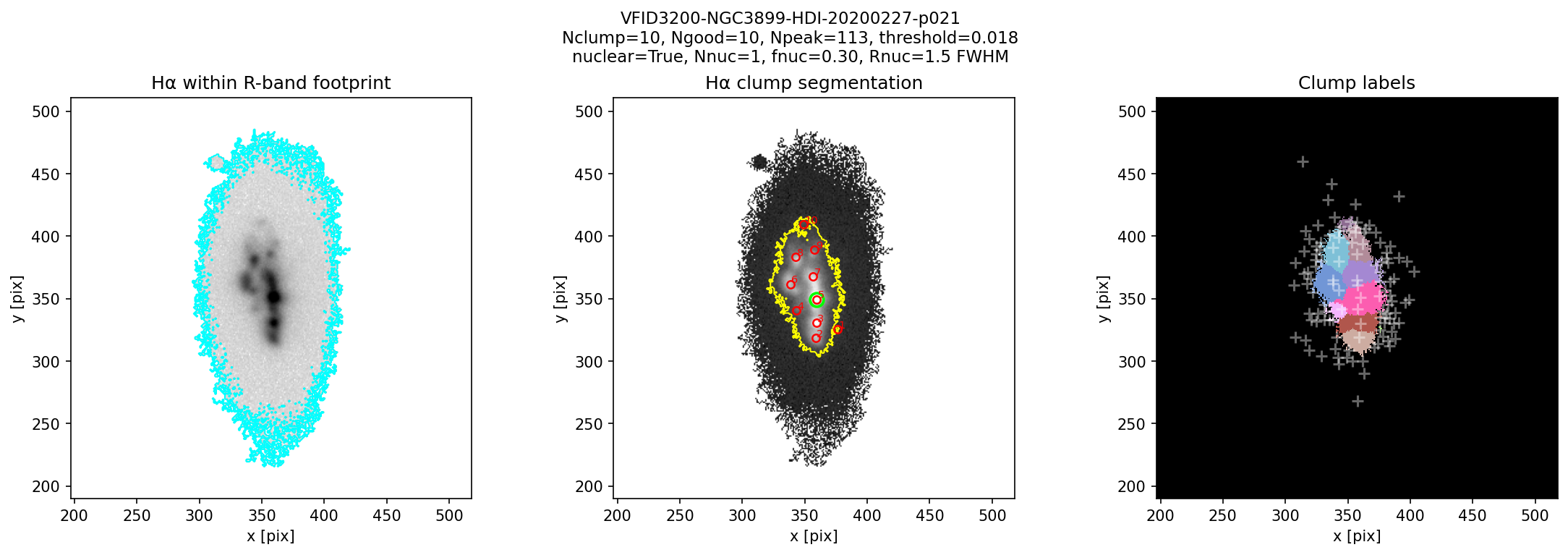

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.61 | -1.76 | 0.60 | -1.75 | 0.27 | 0.51 | 2.62 | ● |
| Hα | 0.61 | -1.38 | 0.90 | -1.10 | 1.02 | 0.77 | 1.81 | ● |
| CS-gr | -- | -1.36 | 0.90 | -1.08 | 1.15 | 0.81 | -- | ● |
HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID3200-NGC3899-HDI-20200227-p021-R-hapy-morphology-diag.png

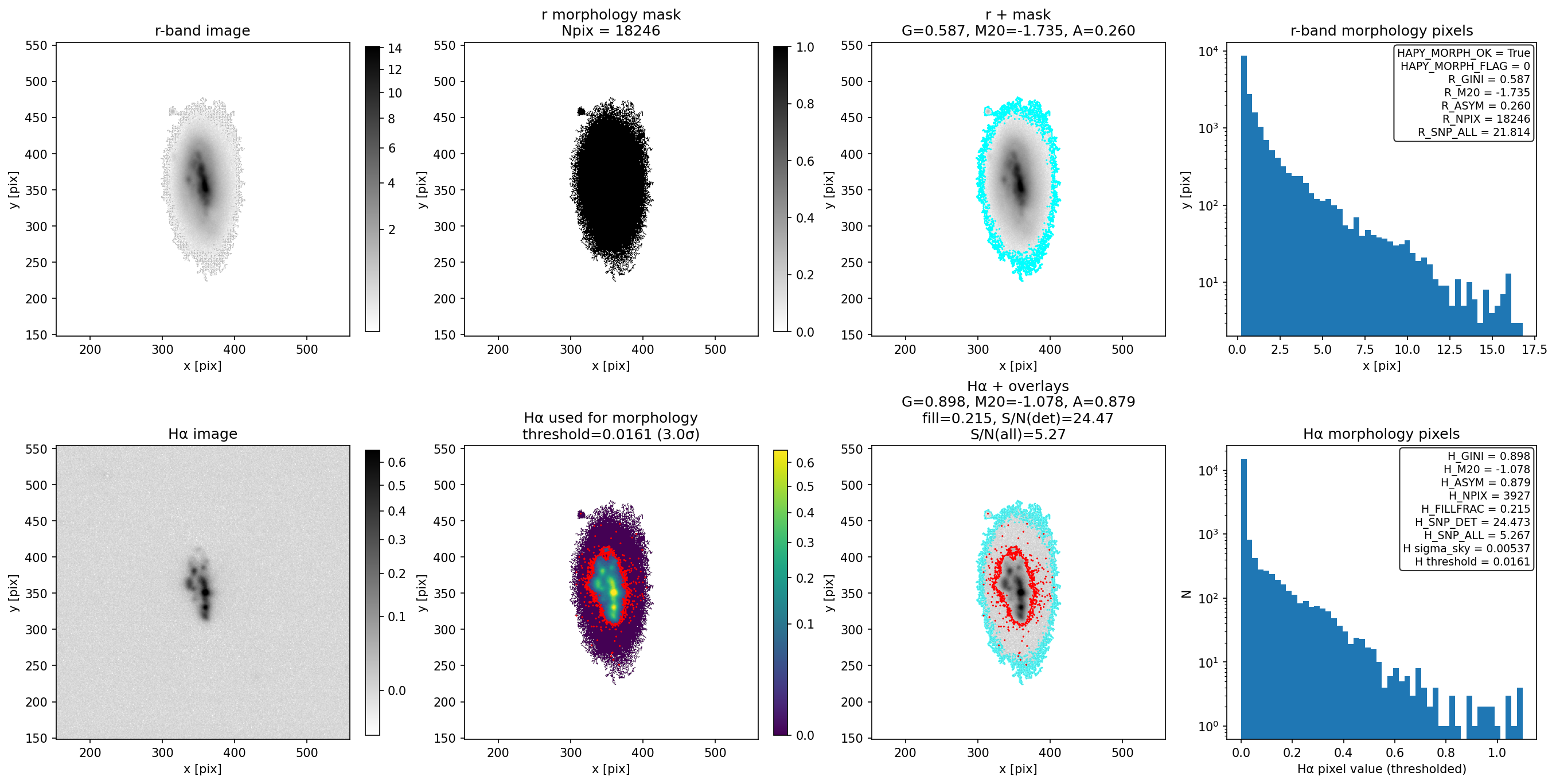

HAPY Morphology: VFID3200-NGC3899-HDI-20200227-p021-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 355.22 | 360.98 | 0.52 | -1.59 | 2.92 | 0.18 | 0.02 | -- | 0 | 0 |
| Hα | 354.13 | 355.22 | 0.47 | -1.17 | 2.50 | 0.63 | 0.07 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3200-NGC3899-HDI-20200227-p021-R-statmorph-r.pdf
Hα statmorph: VFID3200-NGC3899-HDI-20200227-p021-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 357.03 | 362.04 | 12.56 | -- | 1.13 | 0.40 | 8.0 | 0.00 | 1.88 | ● OK |
| CV | ● | 356.97 | 362.26 | 12.55 | -- | 1.22 | 0.39 | 7.9 | 0.00 | 1.92 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
