VFID3169-NGC3900-INT-20190208-p091
Home
Previous (VFID3166-BTS044-INT-20190208-p091)
Next (VFID3173-NGC5116-HDI-20170524-p028)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3169 | NGC3900 | 0.4.1 | 2026-06-30 | INT | 20190208-p091 | 1.12 | 1.14 | -- | 1.05 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.91 |
|---|
 |  |  |  | |
Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.01 | 0.01 | ● | ● | ● | -- | -- | -- | 0.02 | 0.02 |

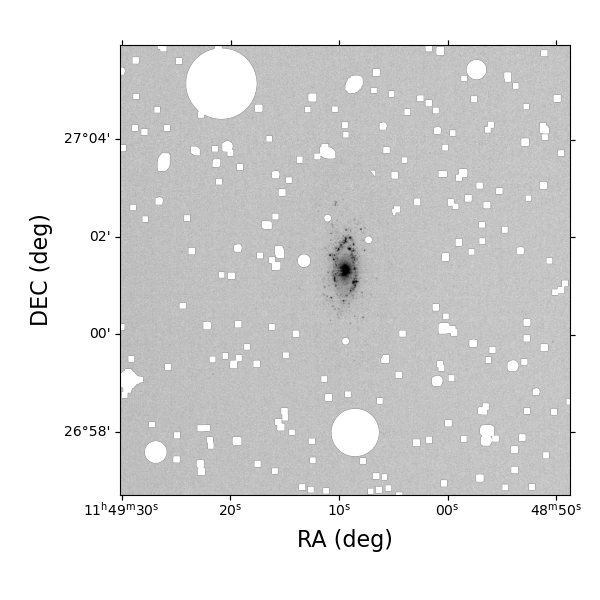

| HAPY Mask |
|---|
 |
Elliptical Photometry

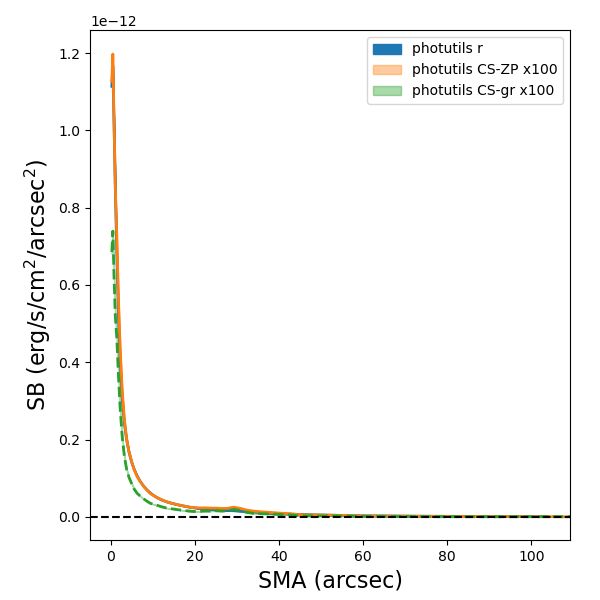

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 11.45 | 11.38 | -- | 11.39 | 11.19 | 11.44 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 9.72e-13 | 7.76e-13 | 8.97e-13 | 9.48e-13 | 0.53 | 121.4 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 89 | 89 | 995 | 584 | ● | 1 | 0.57 | 0.71 | 0.57 | 0.62 | 0.65 | 10.87 | 0.13 | 0.9 | 10.5 | 84.3 | 1.5 |
| CS-GR | ok | 119 | 119 | 900 | 426 | ● | 1 | 0.52 | 0.68 | 0.52 | 0.54 | 0.57 | 18.62 | 0.08 | 0.2 | 10.8 | 84.3 | 1.5 |

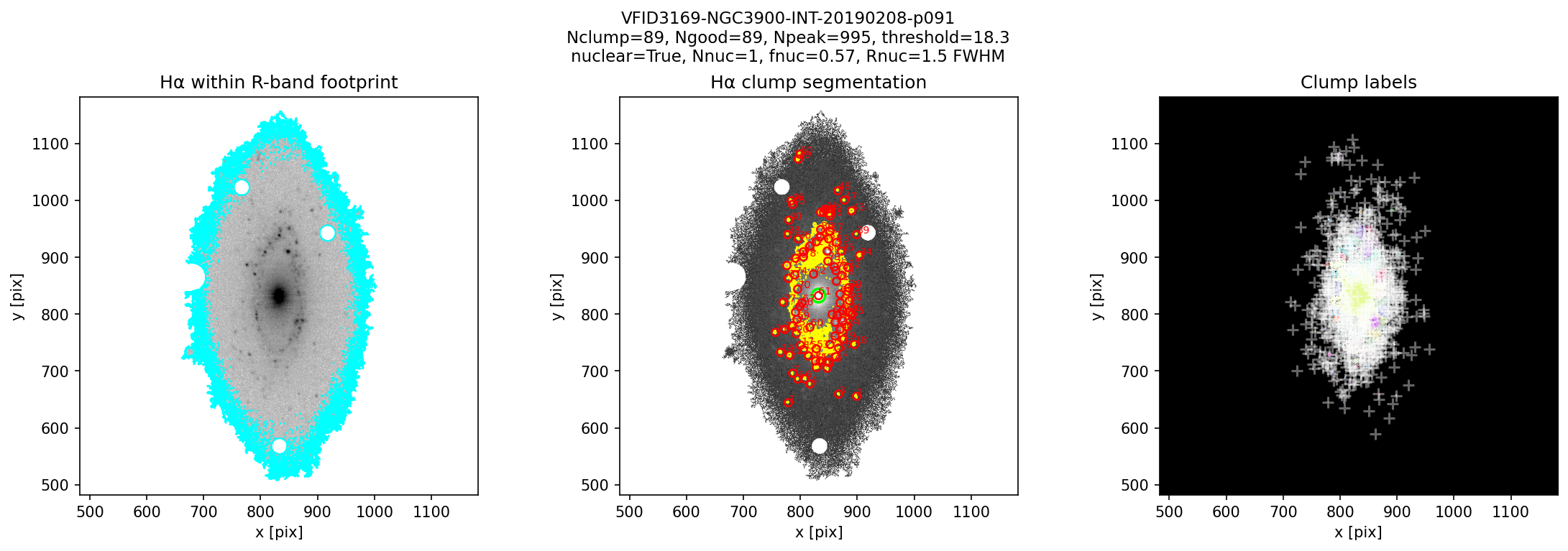

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.66 | -2.58 | 0.62 | -2.56 | 0.21 | 0.53 | 2.76 | ● |
| Hα | 0.47 | -1.94 | 0.69 | -1.86 | 0.90 | 0.53 | 2.35 | ● |
| CS-gr | -- | -1.60 | 0.93 | -1.32 | 1.73 | 0.55 | -- | ● |
HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID3169-NGC3900-INT-20190208-p091-R-hapy-morphology-diag.png

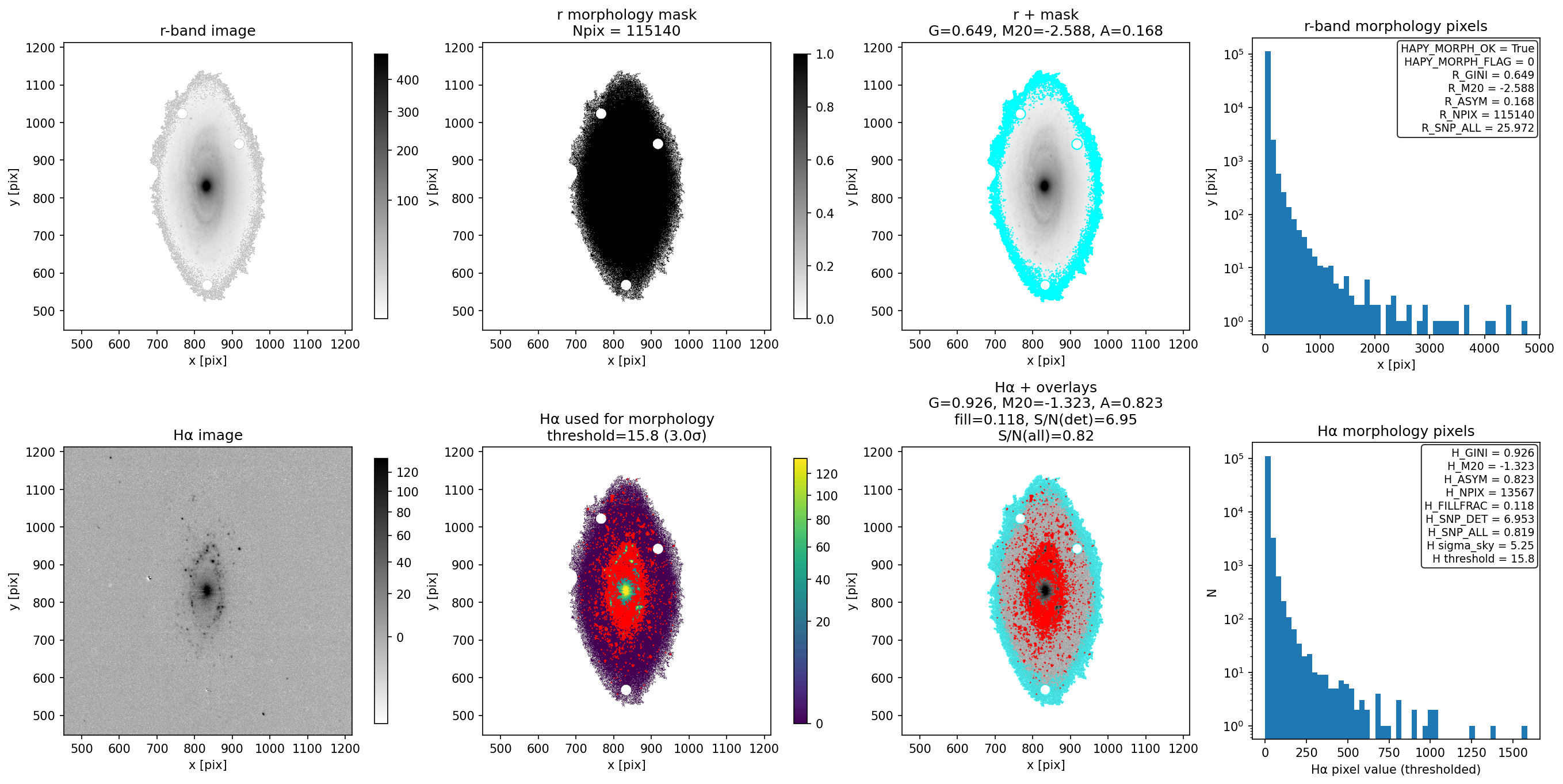

HAPY Morphology: VFID3169-NGC3900-INT-20190208-p091-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 834.07 | 831.62 | 0.55 | -2.41 | 4.03 | 0.11 | 0.02 | -- | 0 | 0 |
| Hα | 833.18 | 835.70 | 0.57 | -1.70 | 3.76 | 0.13 | 0.09 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3169-NGC3900-INT-20190208-p091-R-statmorph-r.pdf
Hα statmorph: VFID3169-NGC3900-INT-20190208-p091-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 831.69 | 831.66 | 11.19 | -- | 4.00 | 0.70 | -0.9 | -0.12 | 6.14 | ● OK |
| CV | ● | -- | -- | -- | -- | -- | -- | -- | -- | -- | ● OK |
GALFIT r-band Modeling + Convolution
VFID3169-NGC3900-INT-20190208-p091
