Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID3051 | UGC06637 | 0.4.1 | 2026-06-30 | INT | 20220501-VFID3054 | 1.33 | 1.34 | -- | 1.04 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

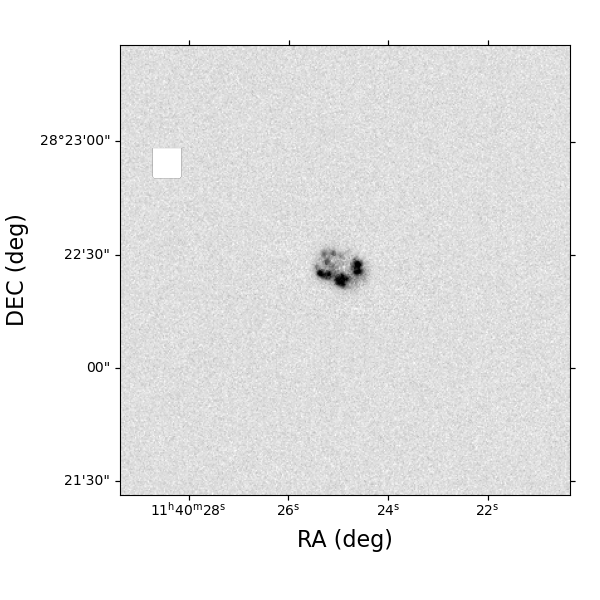

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.88 |
|---|
 |  |  |  | |

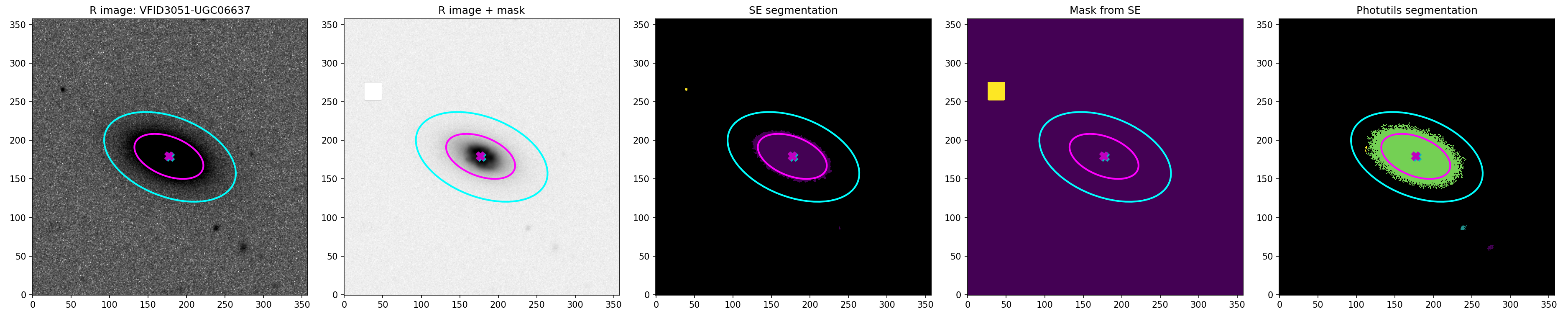

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.00 | 0.00 | ● | ● | ● | -- | -- | -- | 0.01 | 0.01 |
| HAPY Mask |
|---|
 |

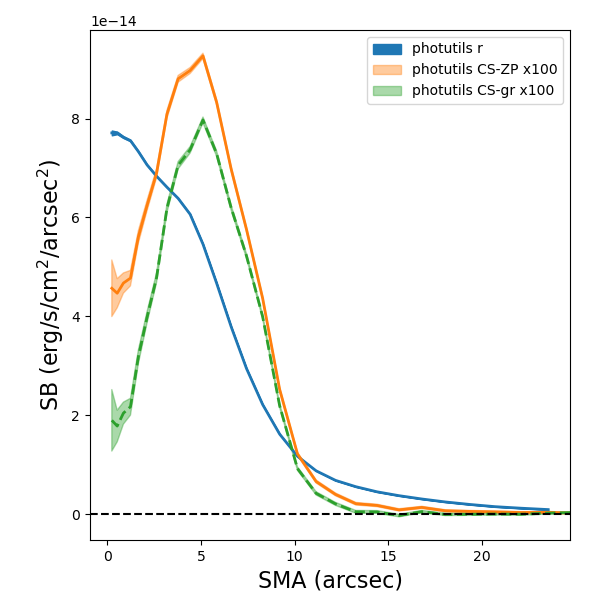

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 14.06 | 14.02 | 14.01 | 14.03 | 14.20 | 14.08 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 9.89e-14 | 9.35e-14 | 9.65e-14 | 9.97e-14 | 0.68 | 20.7 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 10 | 10 | 30 | 17 | ● | 0 | 0.00 | 0.91 | 0.30 | 0.46 | 0.60 | 1.88 | 0.17 | 2.7 | 3.9 | 7.1 | 1.5 |
| CS-GR | ok | 10 | 10 | 30 | 15 | ● | 0 | 0.00 | 0.96 | 0.29 | 0.45 | 0.60 | 1.91 | 0.15 | 2.8 | 4.0 | 7.0 | 1.5 |

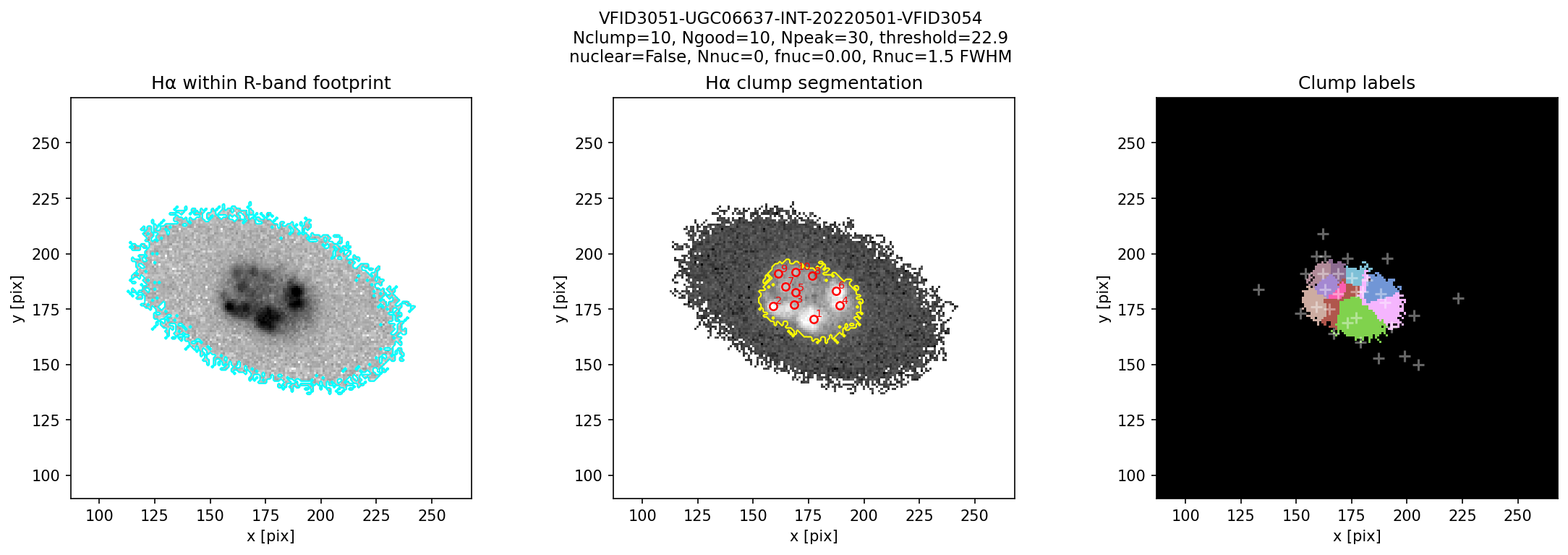

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.63 | -1.75 | 0.63 | -1.75 | 0.16 | 0.55 | 2.56 | ● |
| Hα | 0.42 | -1.13 | 0.78 | -1.10 | 1.13 | 0.68 | 1.64 | ● |
| CS-gr | -- | -1.11 | 0.89 | -0.78 | 1.61 | 0.71 | -- | ● |

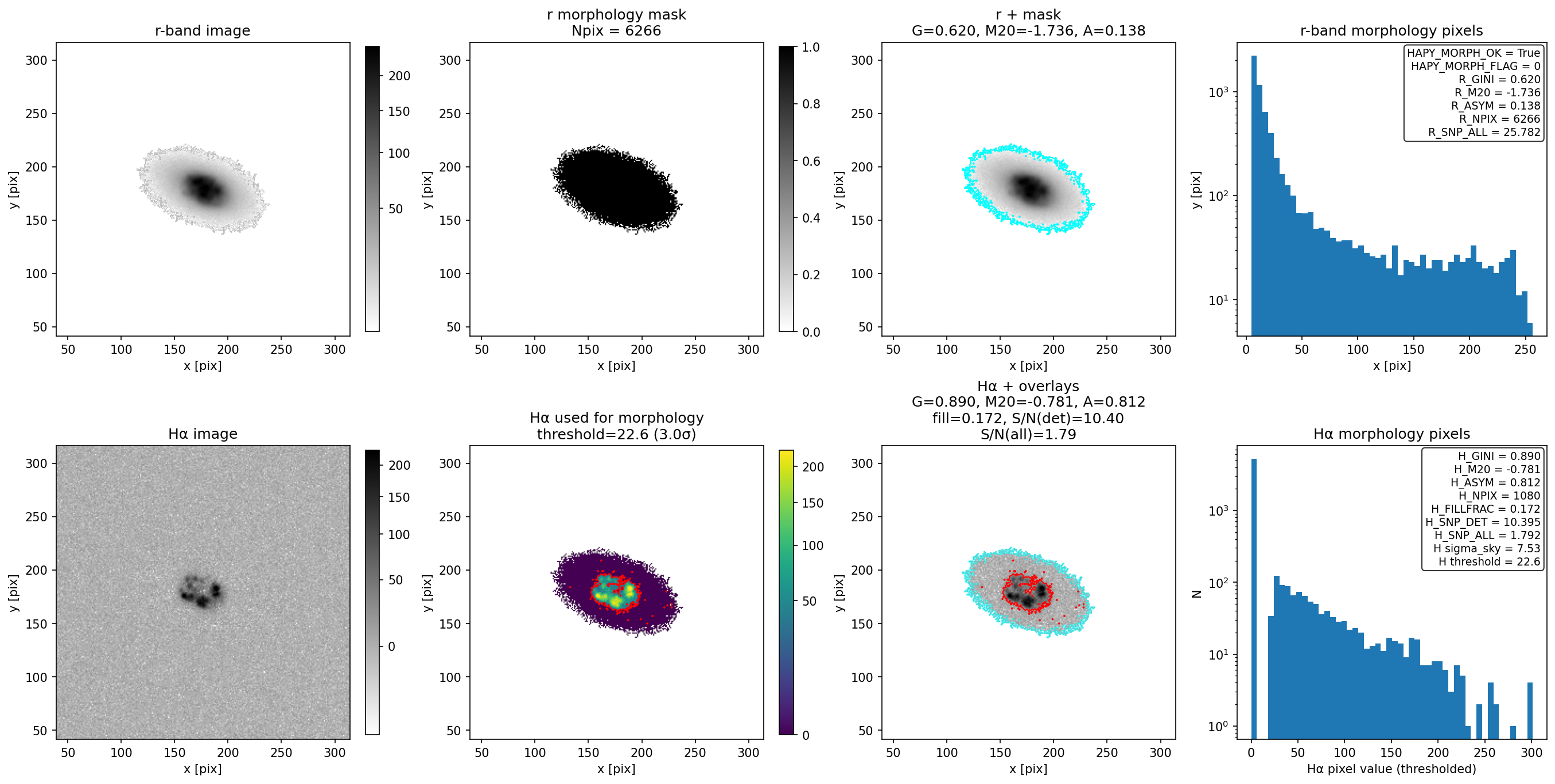

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID3051-UGC06637-INT-20220501-VFID3054-R-hapy-morphology-diag.png
HAPY Morphology: VFID3051-UGC06637-INT-20220501-VFID3054-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 177.62 | 179.31 | 0.51 | -1.54 | 2.53 | 0.09 | 0.01 | -- | 0 | 0 |
| Hα | 176.09 | 178.07 | 0.38 | -0.80 | 1.60 | 0.35 | 0.05 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID3051-UGC06637-INT-20220501-VFID3054-R-statmorph-r.pdf
Hα statmorph: VFID3051-UGC06637-INT-20220501-VFID3054-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 178.98 | 180.29 | 14.20 | -- | 0.55 | 0.64 | 63.5 | 0.29 | 3.23 | ● OK |
| CV | ● | 178.43 | 180.26 | 14.20 | -- | 0.56 | 0.62 | 63.5 | 0.28 | 3.21 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
