Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID2670 | NGC3430 | 0.4.1 | 2026-06-30 | INT | 20190205-p065 | 1.84 | 1.53 | -- | 1.08 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

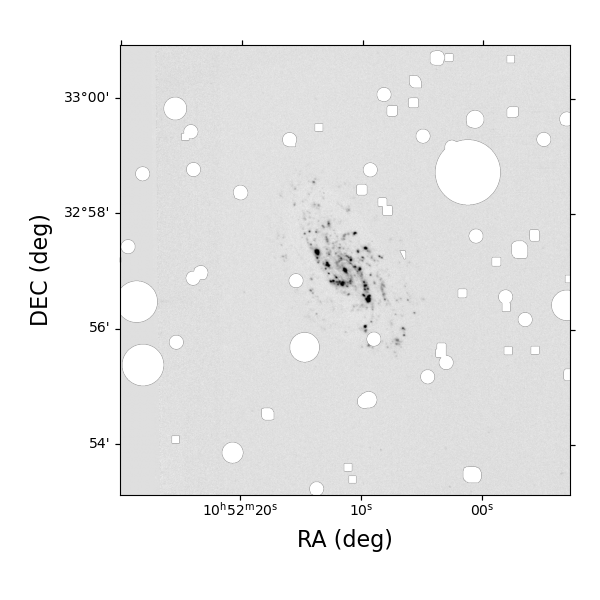

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.87 |
|---|
 |  |  |  | |

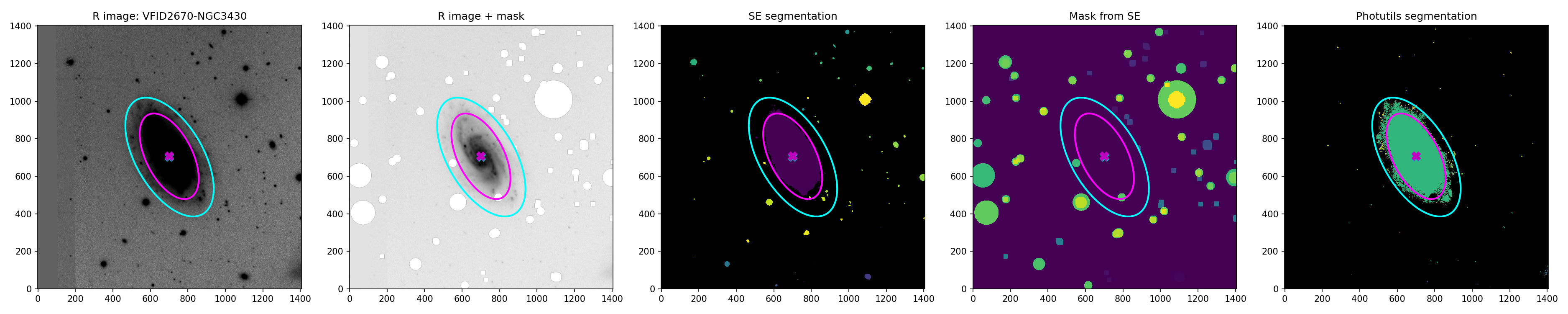

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.02 | 0.01 | ● | ● | ● | -- | -- | -- | 0.05 | 0.05 |
| HAPY Mask |
|---|
 |
Elliptical Photometry

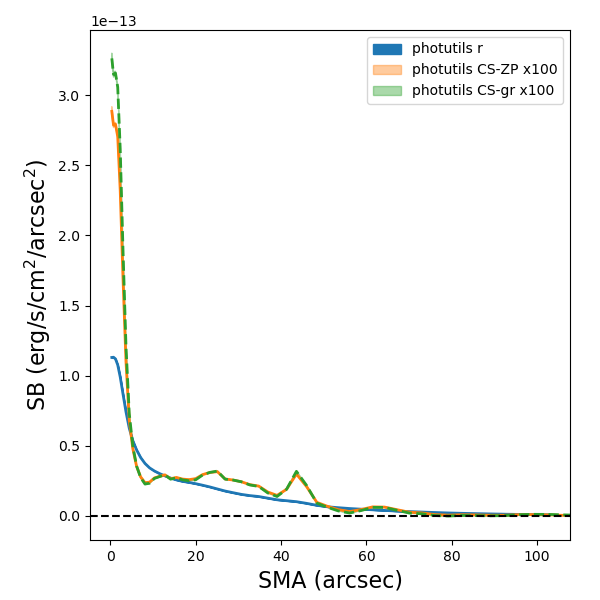

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 11.46 | 11.42 | 11.42 | 11.40 | 11.17 | 11.48 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 1.13e-12 | 1.02e-12 | 1.07e-12 | 1.12e-12 | 0.39 | 109.8 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 204 | 204 | 784 | 432 | ● | 1 | 0.08 | 0.83 | 0.10 | 0.18 | 0.26 | 1.22 | 0.15 | 34.7 | 27.4 | 99.5 | 1.5 |
| CS-GR | ok | 201 | 201 | 748 | 395 | ● | 1 | 0.08 | 0.91 | 0.11 | 0.20 | 0.27 | 1.22 | 0.14 | 34.7 | 28.0 | 99.6 | 1.5 |

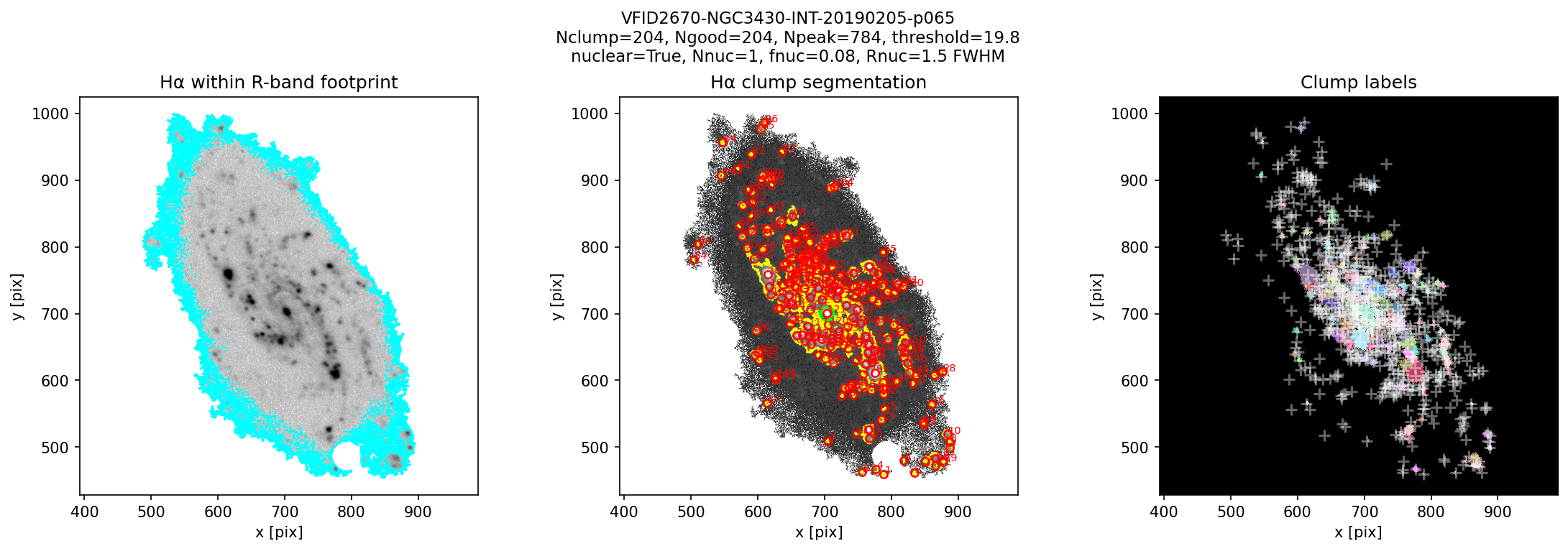

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.52 | -1.75 | 0.51 | -1.75 | 0.33 | 0.38 | 2.23 | ● |
| Hα | 0.49 | -0.90 | 0.76 | -0.87 | 1.77 | 0.39 | 5.05 | ● |
| CS-gr | -- | -0.89 | 0.90 | -0.77 | 2.12 | 0.40 | -- | ● |

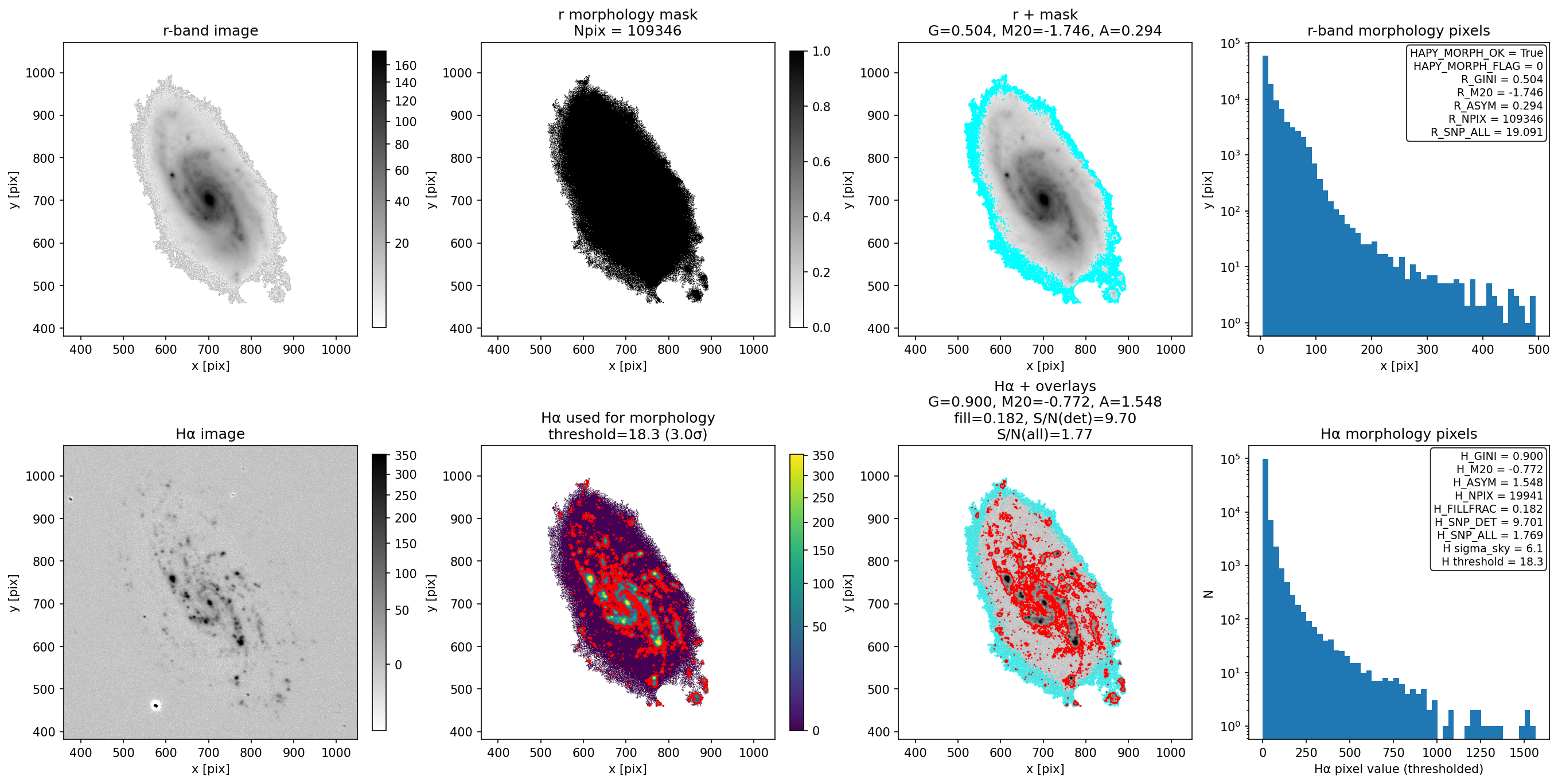

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID2670-NGC3430-INT-20190205-p065-R-hapy-morphology-diag.png
HAPY Morphology: VFID2670-NGC3430-INT-20190205-p065-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 701.12 | 708.12 | 0.51 | -1.70 | 2.88 | 0.21 | 0.04 | -- | 0 | 0 |
| Hα | 710.56 | 696.69 | 0.64 | -0.65 | 2.24 | 0.73 | 0.28 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID2670-NGC3430-INT-20190205-p065-R-statmorph-r.pdf
Hα statmorph: VFID2670-NGC3430-INT-20190205-p065-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 703.10 | 702.99 | 11.17 | -- | 1.62 | 0.54 | 32.1 | -0.29 | 4.17 | ● OK |
| CV | ● | 703.11 | 702.77 | 11.19 | -- | 1.58 | 0.53 | 32.3 | -0.27 | 4.36 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
