| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID2346 | MRK0465 | 0.4.1 | 2026-06-30 | INT | 20190211-p128 | 1.47 | 1.60 | -- | 3.15 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

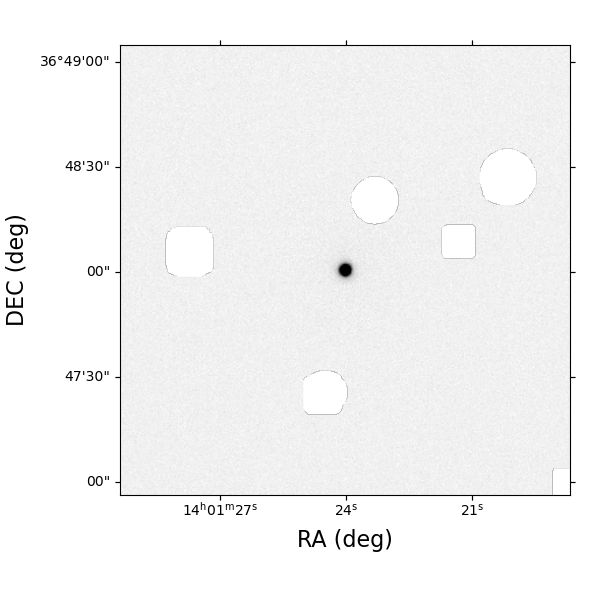

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.93 |
|---|
 |  |  |  | |

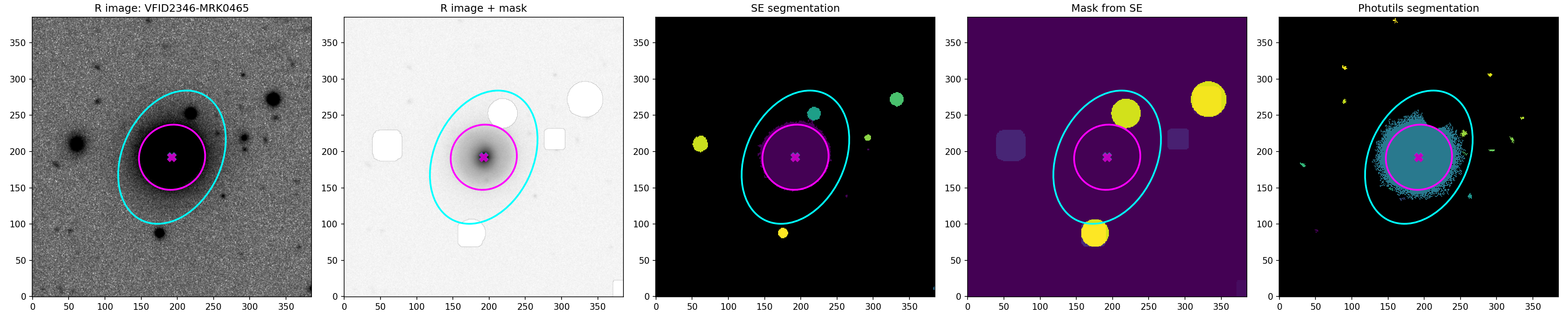

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.07 | 0.00 | ● | ● | ● | -- | -- | -- | 0.16 | 0.16 |
| HAPY Mask |
|---|
 |
Elliptical Photometry

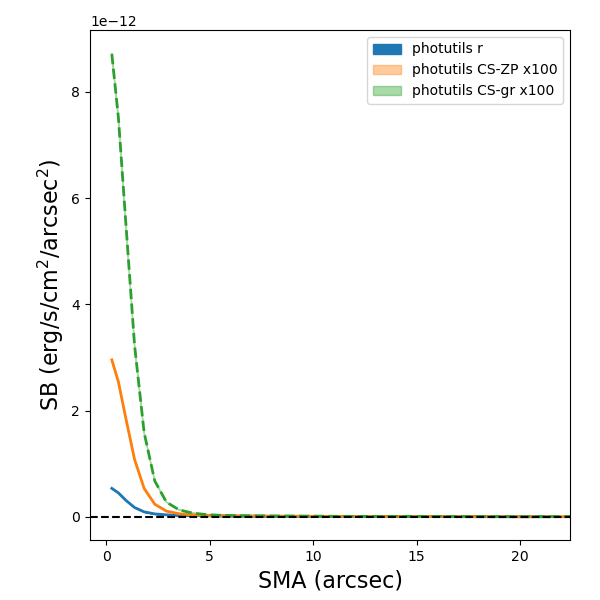

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 14.04 | 13.99 | 13.97 | 13.97 | 14.27 | 14.05 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 2.13e-13 | 1.95e-13 | 2.08e-13 | 2.10e-13 | 0.77 | 26.0 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 1 | 1 | 38 | 3 | ● | 1 | 1.00 | 0.73 | 1.00 | 1.00 | 1.00 | -- | 0.05 | 0.1 | 0.1 | 0.1 | 1.5 |
| CS-GR | ok | 1 | 1 | 32 | 2 | ● | 1 | 1.00 | 0.83 | 1.00 | 1.00 | 1.00 | -- | 0.04 | 0.1 | 0.1 | 0.1 | 1.5 |

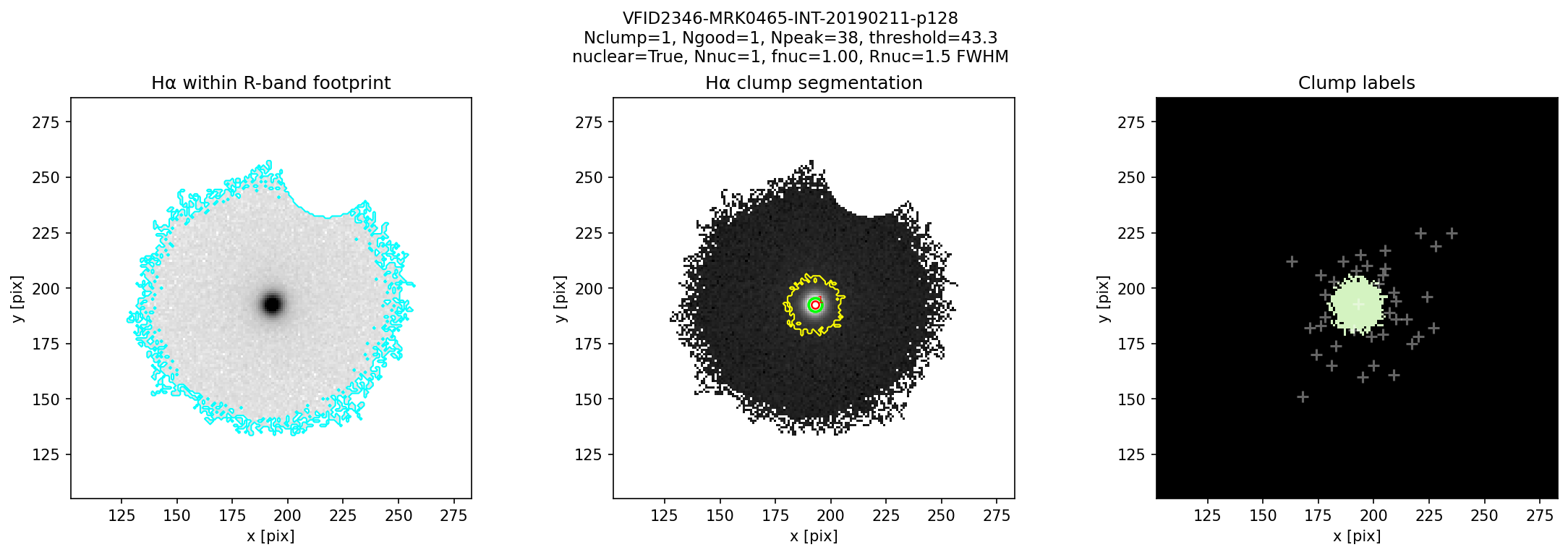

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.59 | -2.66 | 0.57 | -2.65 | 0.18 | 0.50 | 2.62 | ● |
| Hα | 0.75 | -2.97 | 0.82 | -2.86 | 0.75 | 0.77 | 2.43 | ● |
| CS-gr | -- | -3.01 | 0.98 | -2.10 | 0.98 | 0.86 | 2.26 | ● |
HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID2346-MRK0465-INT-20190211-p128-R-hapy-morphology-diag.png

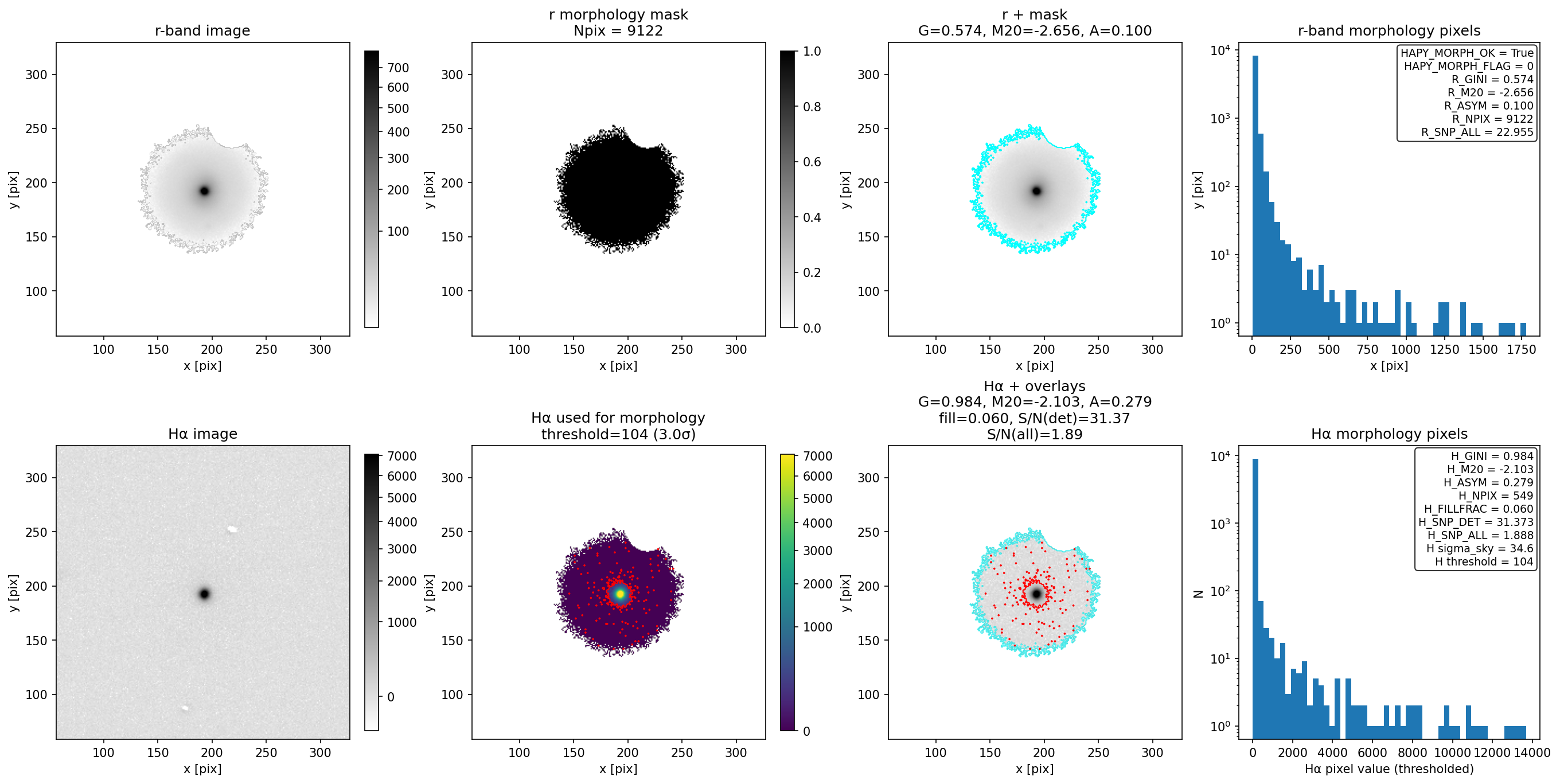

HAPY Morphology: VFID2346-MRK0465-INT-20190211-p128-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 192.29 | 192.78 | 0.54 | -2.60 | 4.58 | 0.02 | -0.00 | -- | 0 | 0 |
| Hα | 192.86 | 192.53 | 0.47 | -1.64 | 2.47 | 0.03 | 0.00 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID2346-MRK0465-INT-20190211-p128-R-statmorph-r.pdf
Hα statmorph: VFID2346-MRK0465-INT-20190211-p128-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 193.65 | 193.38 | 14.27 | -- | 2.49 | 0.99 | -81.7 | 0.43 | 13.31 | ● OK |
| CV | ● | -- | -- | -- | -- | -- | -- | -- | -- | -- | ● OK |
GALFIT r-band Modeling + Convolution
