Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID2075 | CGCG218-060 | 0.4.1 | 2026-06-30 | HDI | 20180316-p054 | 1.93 | 1.99 | -- | 1.00 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

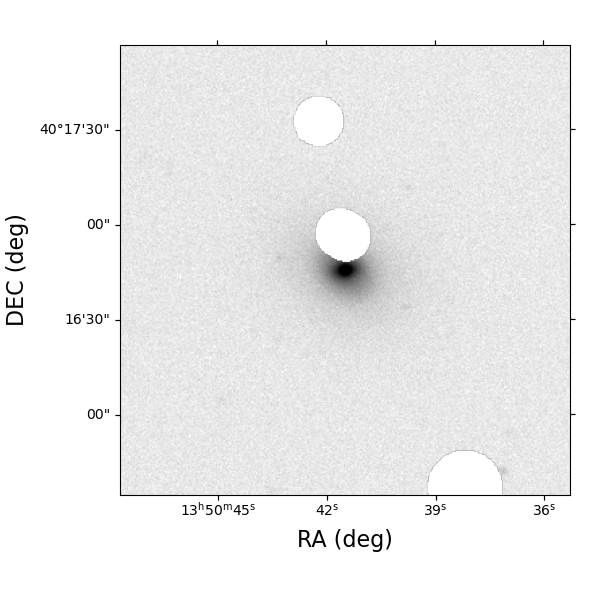

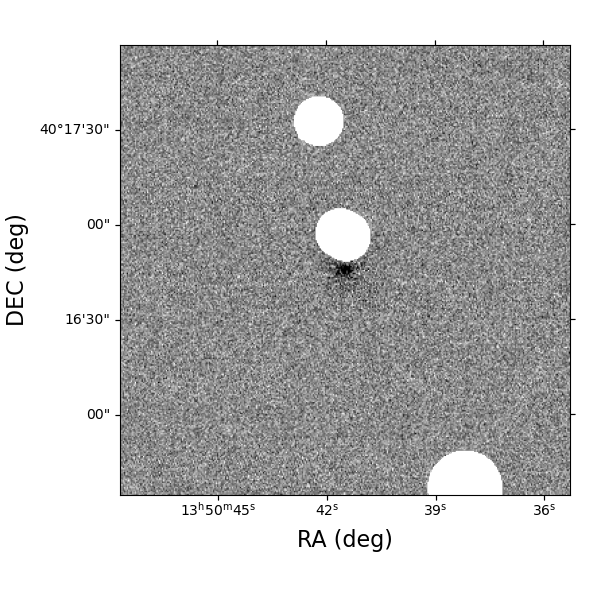

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.88 |
|---|
 |  |  |  | |

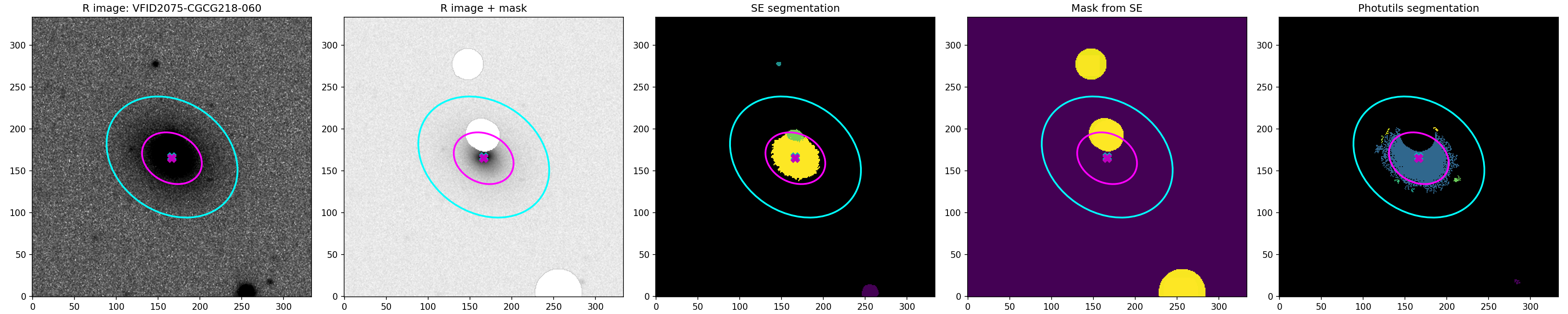

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.07 | 0.14 | ● | ● | ● | -- | -- | -- | 0.19 | 0.19 |
| HAPY Mask |
|---|
 |

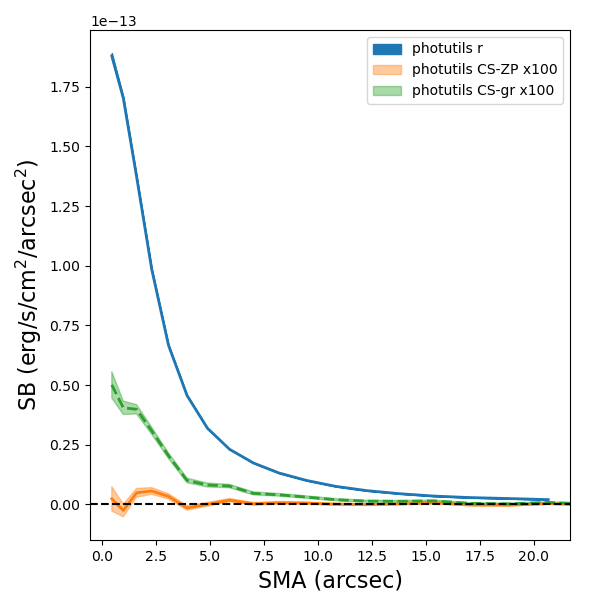

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 14.13 | 14.04 | 14.03 | 14.01 | 13.90 | 14.31 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 8.66e-16 | 6.95e-16 | 1.07e-15 | 1.11e-15 | 1.21 | 3.1 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 0 | 0 | 19 | 0 | ● | 0 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | 1.5 |
| CS-GR | ok | 3 | 3 | 26 | 3 | ● | 3 | 1.00 | 0.34 | 0.68 | 0.88 | 1.00 | 3.33 | 0.02 | 0.5 | 0.9 | 2.4 | 1.5 |

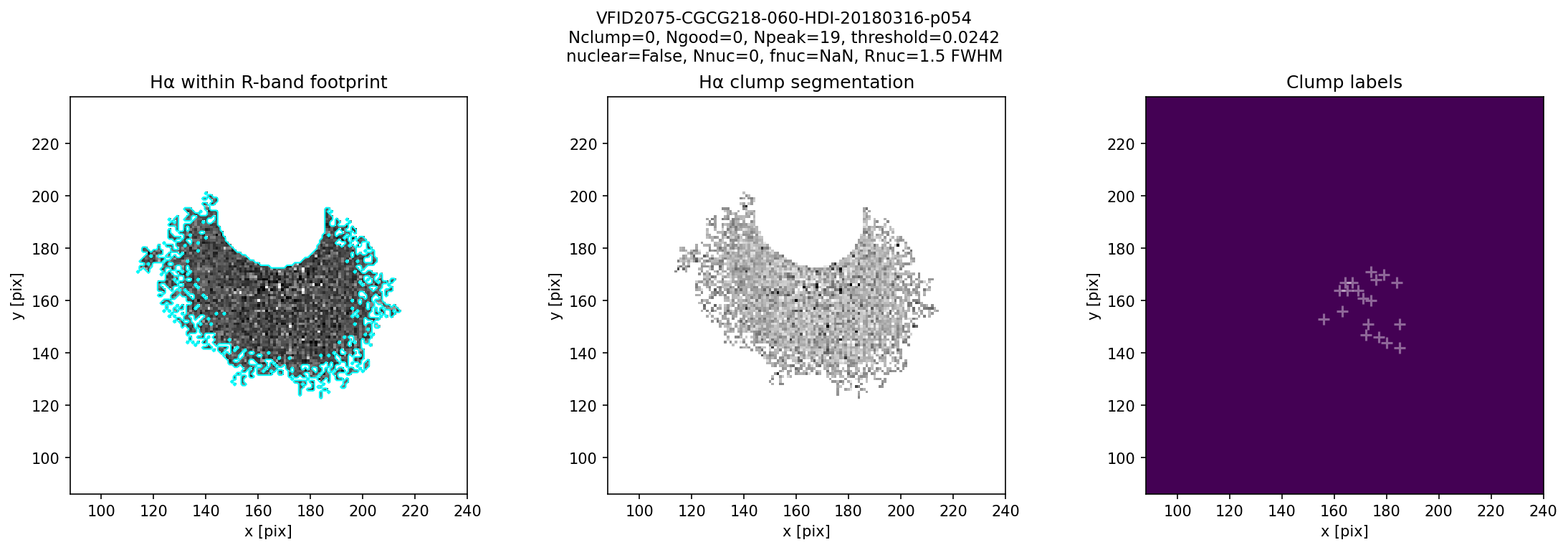

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.58 | -1.93 | 0.58 | -2.18 | 0.45 | 0.58 | 3.55 | ● |
| Hα | 0.14 | -0.92 | 0.98 | -1.49 | -14.10 | 1.21 | 0.44 | ● |
| CS-gr | -- | -1.46 | 0.97 | -1.72 | 3.91 | 0.61 | 7.47 | ● |
HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID2075-CGCG218-060-HDI-20180316-p054-R-hapy-morphology-diag.png

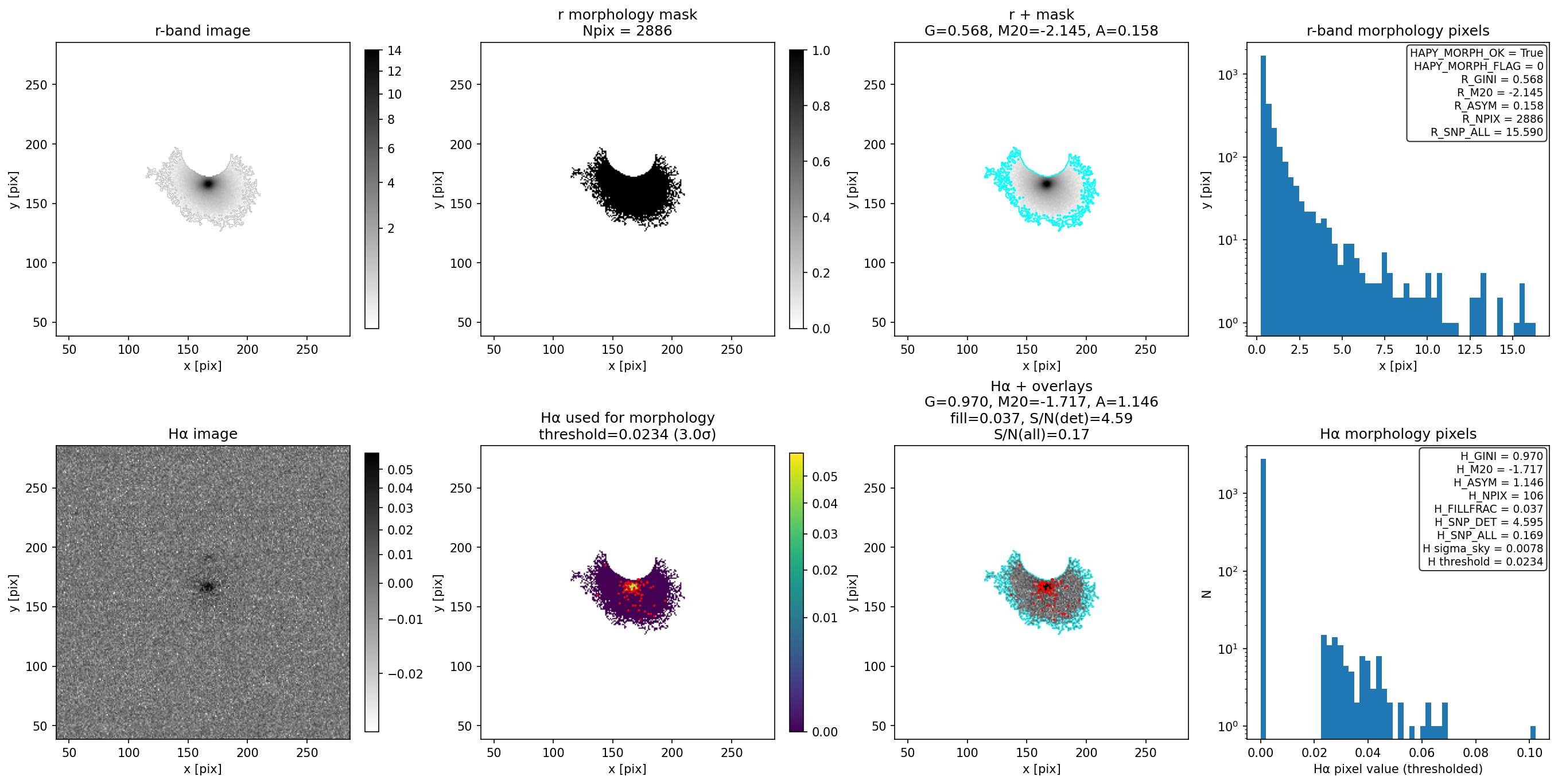

HAPY Morphology: VFID2075-CGCG218-060-HDI-20180316-p054-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 167.16 | 163.38 | 0.68 | -1.93 | 4.36 | -0.01 | -0.00 | -- | 0 | 0 |
| Hα | 189.06 | 160.96 | 0.52 | -1.09 | 1.26 | -0.53 | -99.00 | -- | 2 | 1 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID2075-CGCG218-060-HDI-20180316-p054-R-statmorph-r.pdf
Hα statmorph: VFID2075-CGCG218-060-HDI-20180316-p054-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 167.84 | 167.51 | 13.90 | -- | 2.06 | 0.86 | 79.6 | -0.00 | 1.17 | ● OK |
| CV | ● | 167.87 | 167.65 | 13.66 | -- | 4.00 | 0.80 | 78.2 | -0.01 | 1.08 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
