VFID1754-NGC4051-INT-20220504-VFID1756
Home
Previous (VFID1726-NGC2712-INT-20190205-p019)
Next (VFID1789-NGC5297-BOK-20220425-VFID1791)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID1754 | NGC4051 | 0.4.1 | 2026-06-30 | INT | 20220504-VFID1756 | 1.38 | 1.34 | -- | 1.00 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

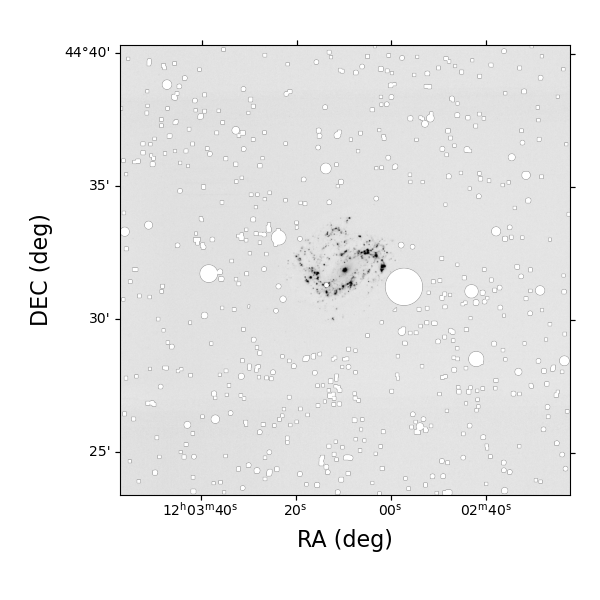

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.90 |
|---|
 |  |  |  | |

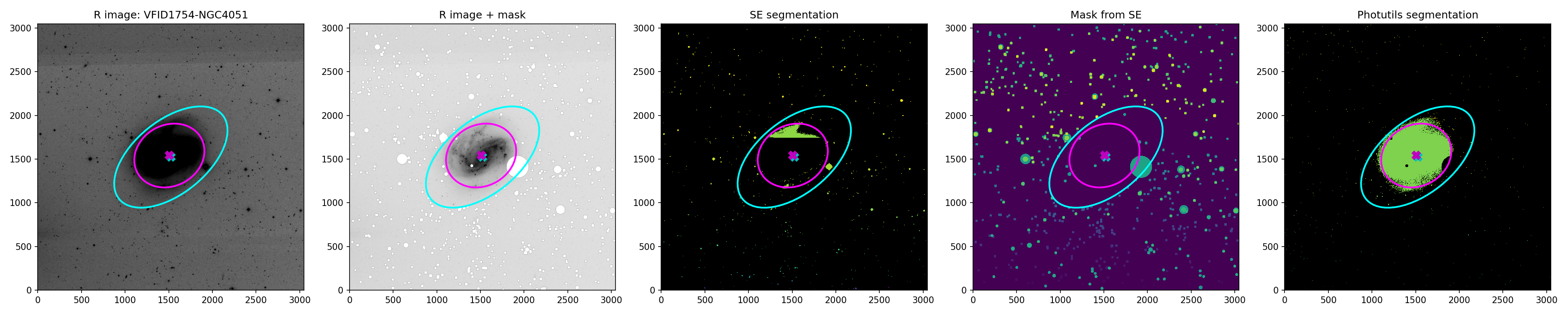

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.05 | 0.02 | ● | ● | ● | -- | -- | -- | 0.06 | 0.06 |
| HAPY Mask |
|---|
 |
Elliptical Photometry

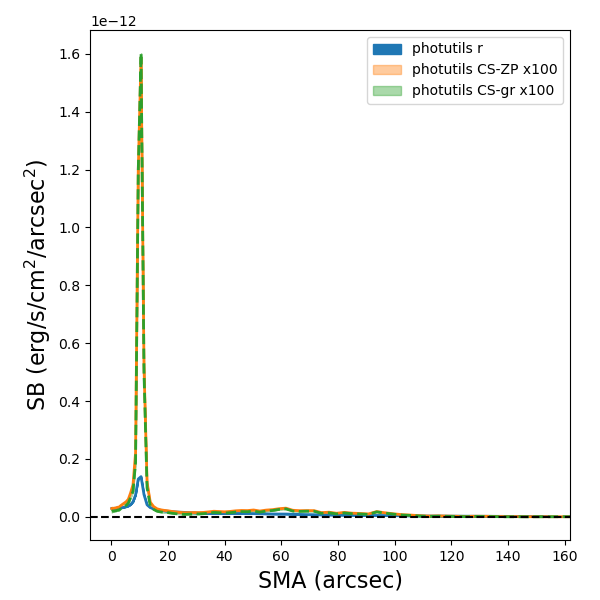

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 10.17 | -- | -- | -- | 11.80 | 10.18 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 7.04e-12 | 6.67e-12 | 6.96e-12 | 7.04e-12 | 0.42 | 154.1 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 459 | 459 | 3256 | 1774 | ● | 1 | 0.77 | 0.82 | 0.77 | 0.84 | 0.85 | 11.03 | 0.15 | 0.8 | 18.5 | 150.4 | 1.5 |
| CS-GR | ok | 589 | 589 | 2958 | 1253 | ● | 1 | 0.38 | 0.89 | 0.38 | 0.41 | 0.43 | 14.47 | 0.12 | 0.9 | 42.1 | 150.5 | 1.5 |

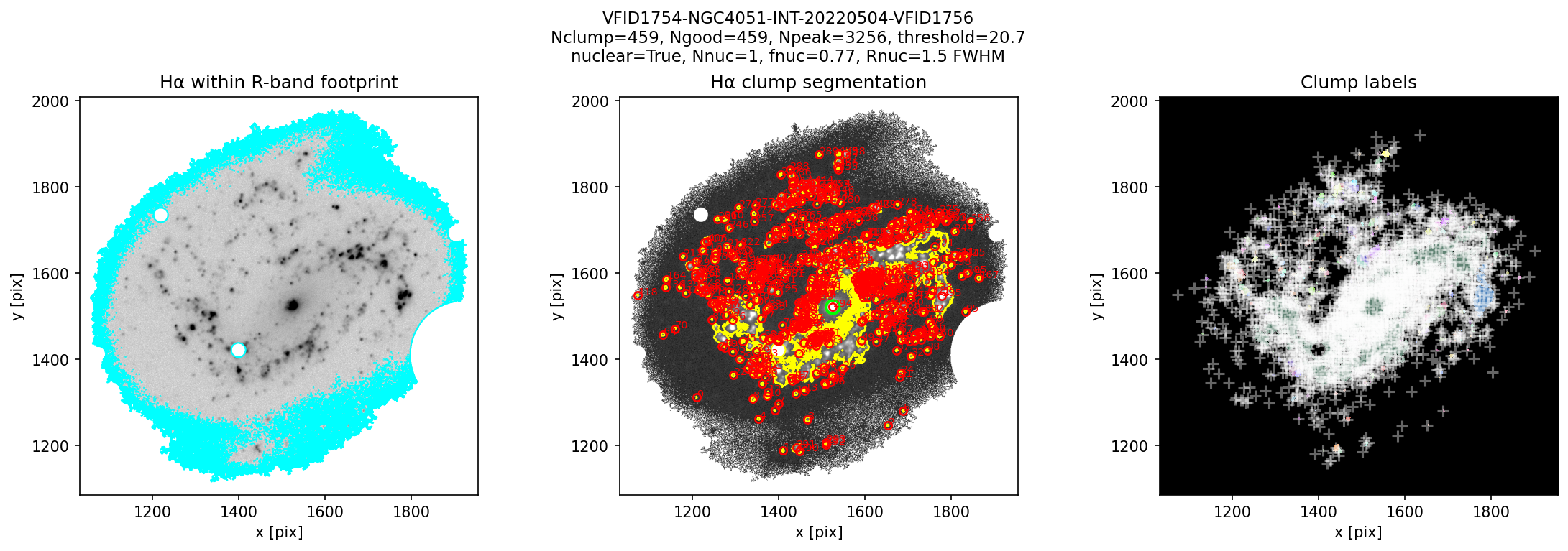

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.51 | -1.55 | 0.49 | -1.54 | 0.58 | 0.34 | -- | ● |
| Hα | 0.64 | -2.60 | 0.80 | -2.41 | 1.70 | 0.42 | 2.24 | ● |
| CS-gr | -- | -2.59 | 0.95 | -2.34 | 2.03 | 0.43 | -- | ● |

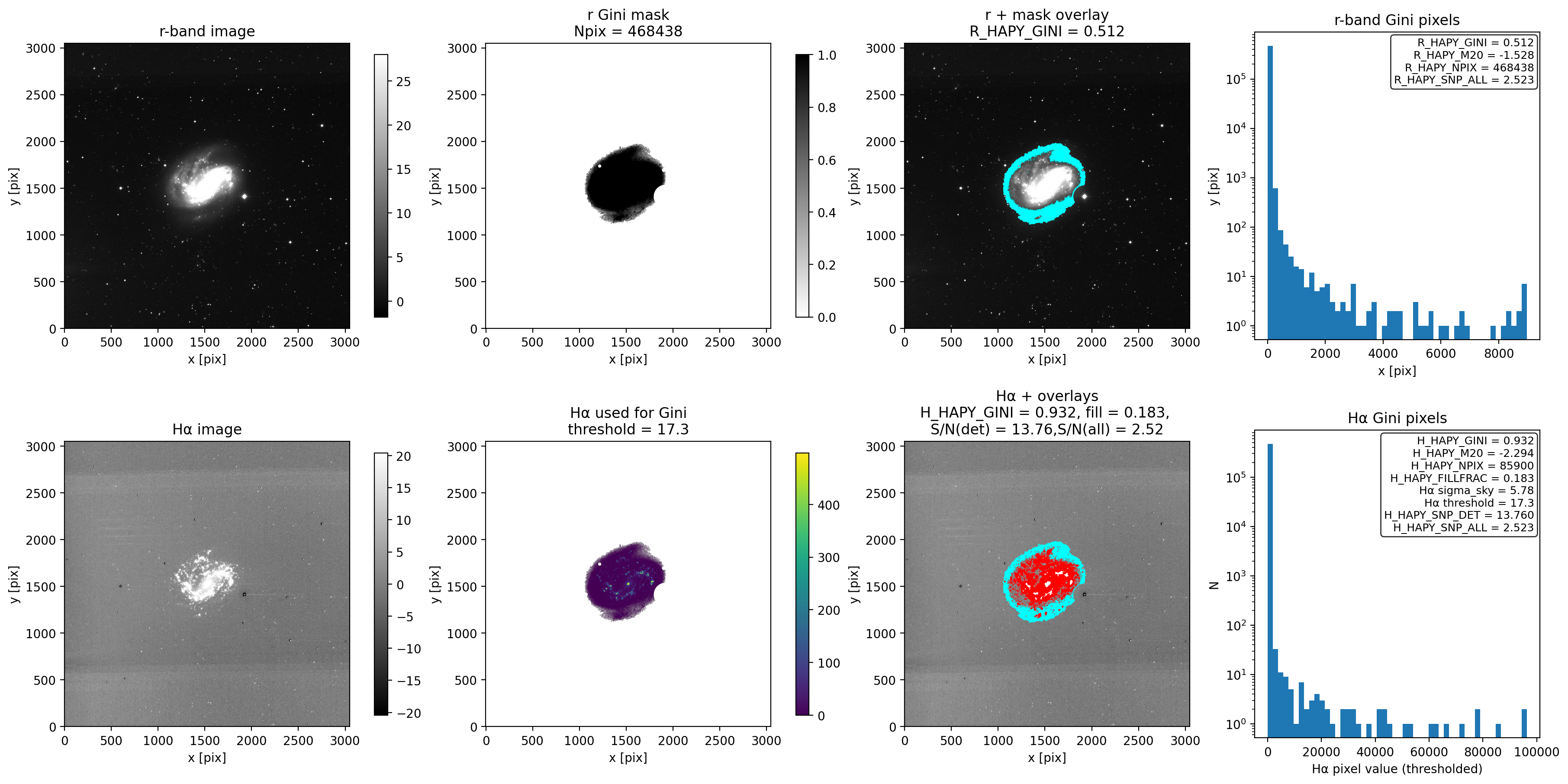

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID1754-NGC4051-INT-20220504-VFID1756-R-hapy-morphology-diag.png

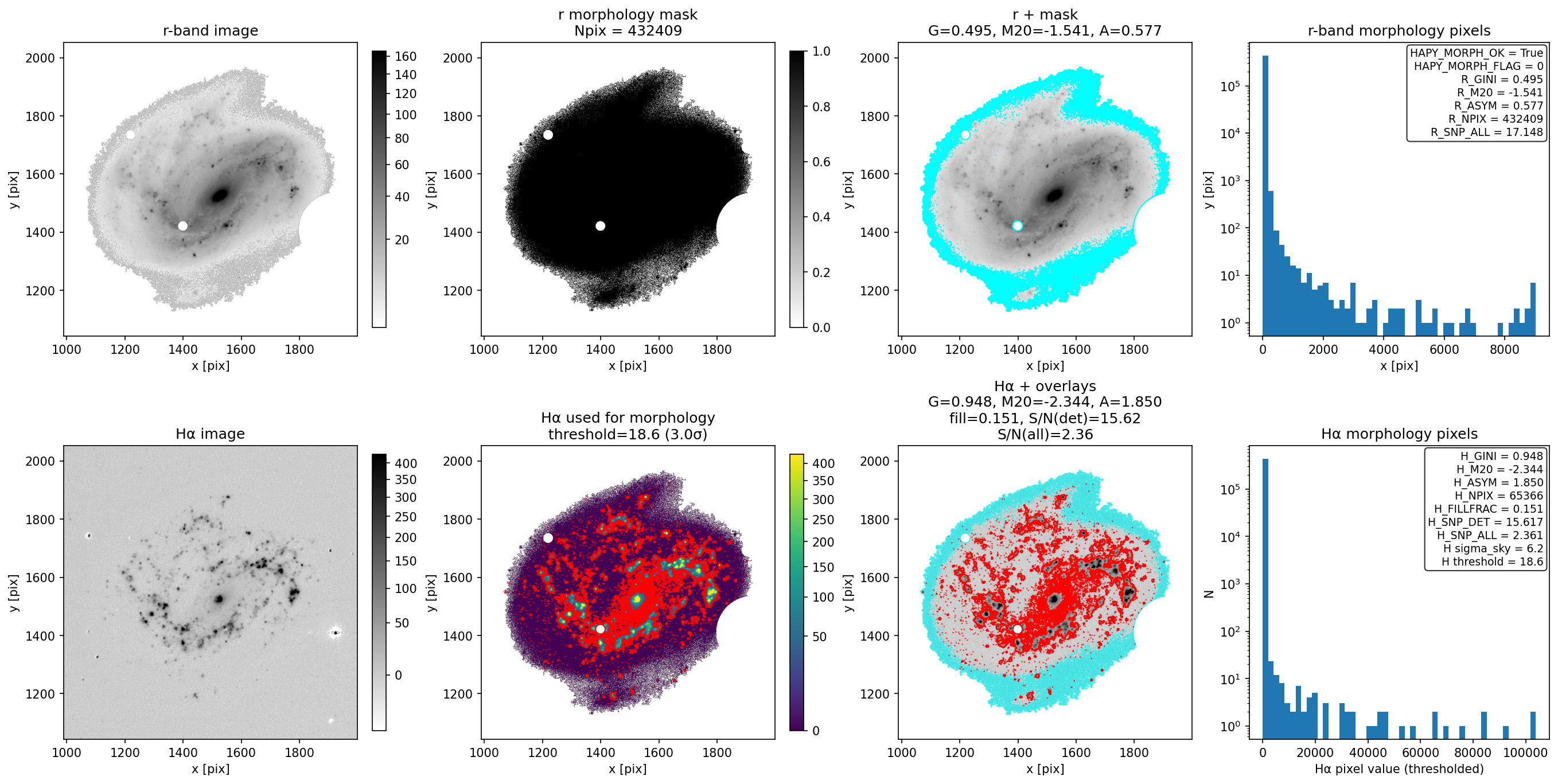

HAPY Morphology: VFID1754-NGC4051-INT-20220504-VFID1756-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 1507.53 | 1542.81 | 0.54 | -1.55 | 2.98 | 0.22 | 0.05 | -- | 0 | 2 |
| Hα | 1527.18 | 1545.69 | 0.89 | -2.09 | 2.37 | 0.31 | 0.00 | -- | 1 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID1754-NGC4051-INT-20220504-VFID1756-R-statmorph-r.pdf
Hα statmorph: VFID1754-NGC4051-INT-20220504-VFID1756-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 1527.49 | 1525.61 | 11.80 | -- | 4.00 | 0.79 | -48.5 | 0.78 | 25.50 | ● OK |
| CV | ● | -- | -- | -- | -- | -- | -- | -- | -- | -- | ● OK |
GALFIT r-band Modeling + Convolution
