VFID1571-IC4263-BOK-20210315-VFID1573
Home
Previous (VFID1559-WISEAJ133318.59+470228.0-BOK-20210315-VFID1573)
Next (VFID1578-WISEAJ132836.15+464604.0-BOK-20210315-VFID1573)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID1571 | IC4263 | 0.4.1 | 2026-06-30 | BOK | 20210315-VFID1573 | 1.51 | 1.51 | -- | 1.00 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

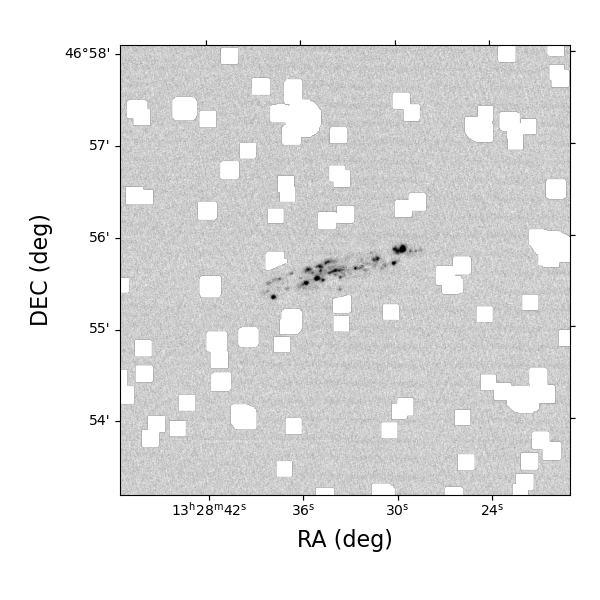

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.94 |
|---|
 |  |  |  | |

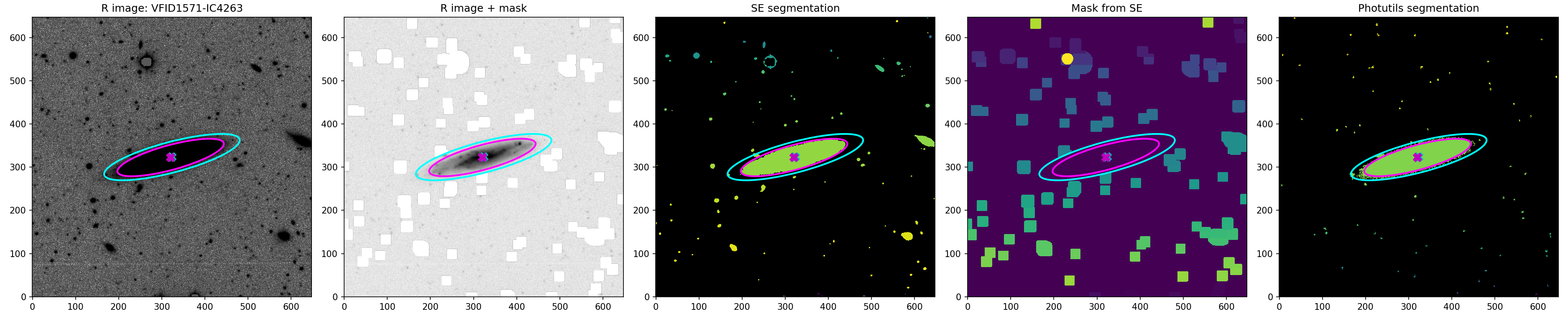

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.00 | 0.00 | ● | ● | ● | -- | -- | -- | 0.12 | 0.12 |
| HAPY Mask |
|---|
 |

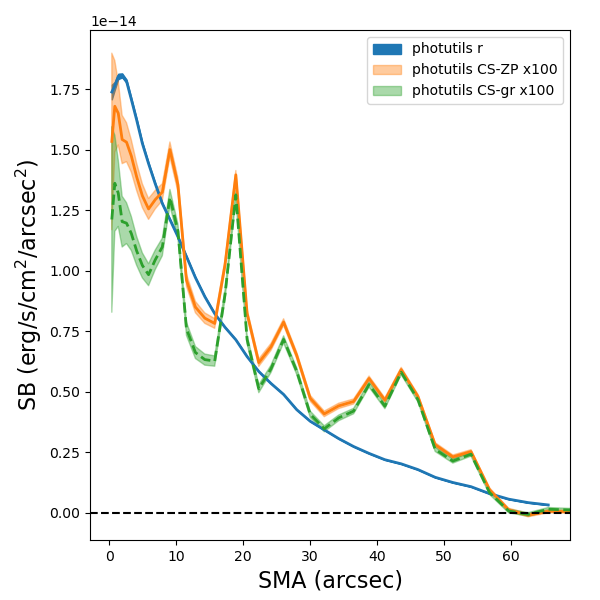

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 14.27 | 14.22 | 14.20 | 14.17 | 14.13 | 14.22 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 1.12e-13 | 9.21e-14 | 1.11e-13 | 1.11e-13 | 0.19 | 56.8 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 40 | 40 | 106 | 62 | ● | 2 | 0.02 | 0.70 | 0.17 | 0.26 | 0.35 | 1.87 | 0.15 | 40.1 | 24.2 | 52.3 | 1.5 |
| CS-GR | ok | 41 | 41 | 102 | 58 | ● | 2 | 0.01 | 0.73 | 0.19 | 0.29 | 0.36 | 2.03 | 0.13 | 40.1 | 25.7 | 52.3 | 1.5 |

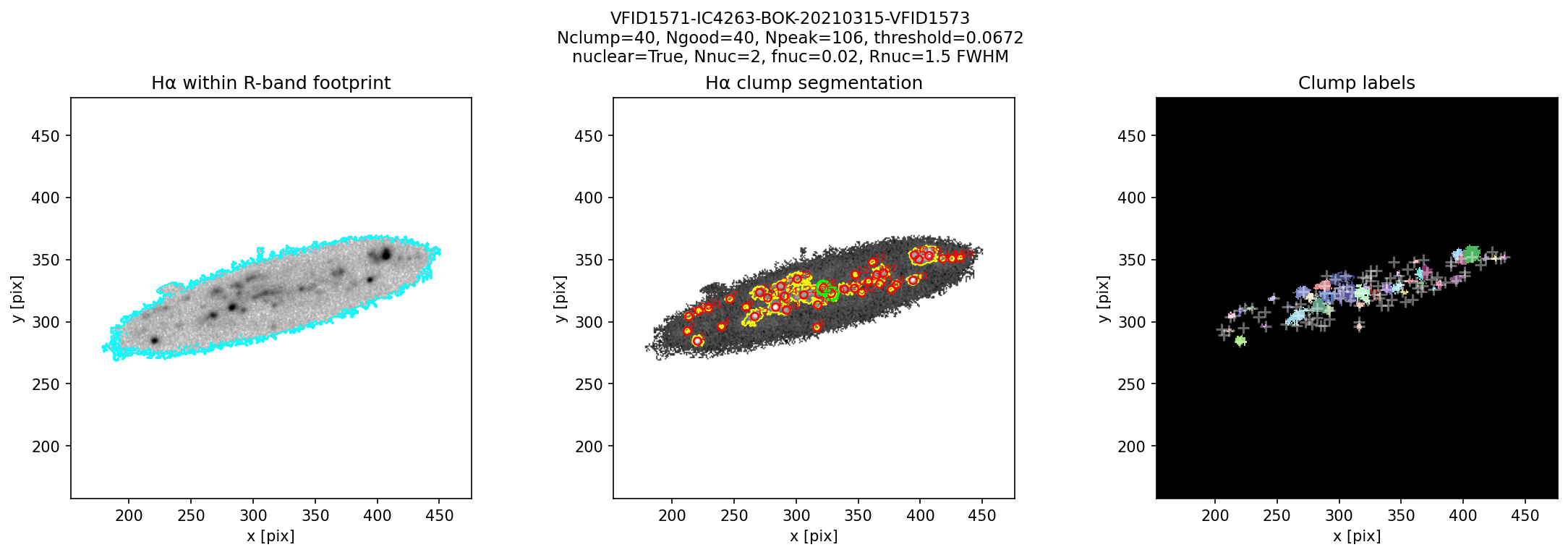

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.49 | -1.61 | 0.38 | -1.61 | 0.22 | 0.29 | 1.97 | ● |
| Hα | 0.42 | -0.54 | 0.92 | -0.48 | 1.65 | 0.19 | 1.55 | ● |
| CS-gr | -- | -0.55 | 0.90 | -0.47 | 1.96 | 0.17 | 1.50 | ● |

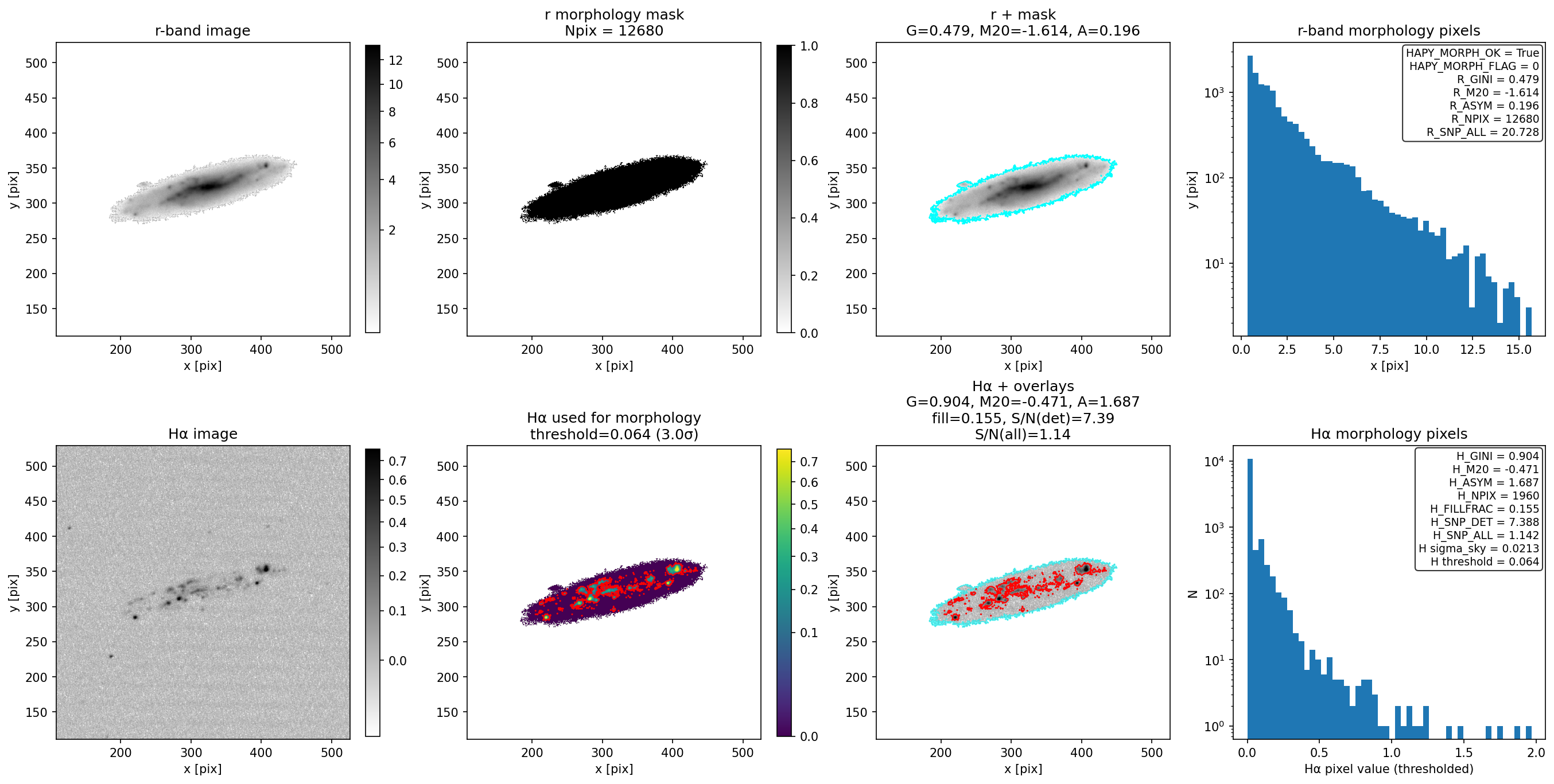

HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID1571-IC4263-BOK-20210315-VFID1573-R-hapy-morphology-diag.png
HAPY Morphology: VFID1571-IC4263-BOK-20210315-VFID1573-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 321.75 | 322.71 | 0.56 | -1.53 | 3.27 | 0.08 | 0.03 | -- | 0 | 0 |
| Hα | 324.47 | 326.16 | 0.60 | -0.53 | 2.15 | 0.23 | 0.17 | -- | 1 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID1571-IC4263-BOK-20210315-VFID1573-R-statmorph-r.pdf
Hα statmorph: VFID1571-IC4263-BOK-20210315-VFID1573-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 324.03 | 324.03 | 14.13 | -- | 0.92 | 0.22 | -75.1 | 0.00 | 1.89 | ● OK |
| CV | ● | 323.95 | 323.99 | 14.12 | -- | 0.97 | 0.21 | -75.0 | -0.00 | 1.89 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
