VFID1316-NGC4085-INT-20220501-VFID1304
Home
Previous (VFID1302-NGC4088-INT-20220501-VFID1304)
Next (VFID1363-UGC04551-INT-20190206-p013)
Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID1316 | NGC4085 | 0.4.1 | 2026-06-30 | INT | 20220501-VFID1304 | 1.38 | 1.33 | -- | 1.00 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |
Hα Images

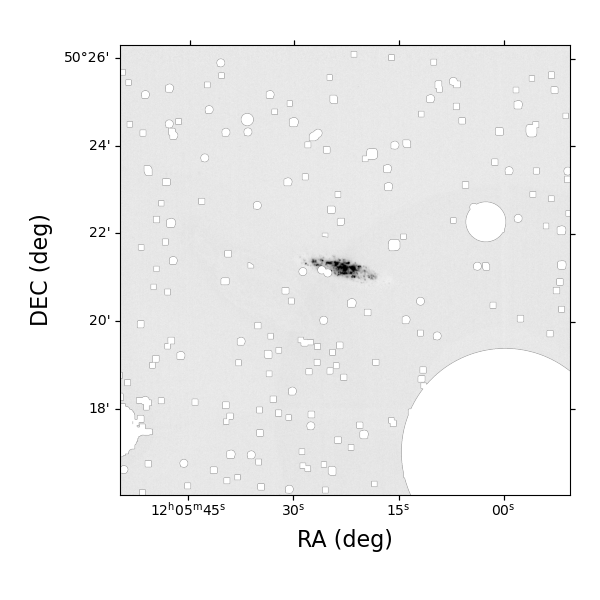

| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.96 |
|---|
 |  |  |  | |

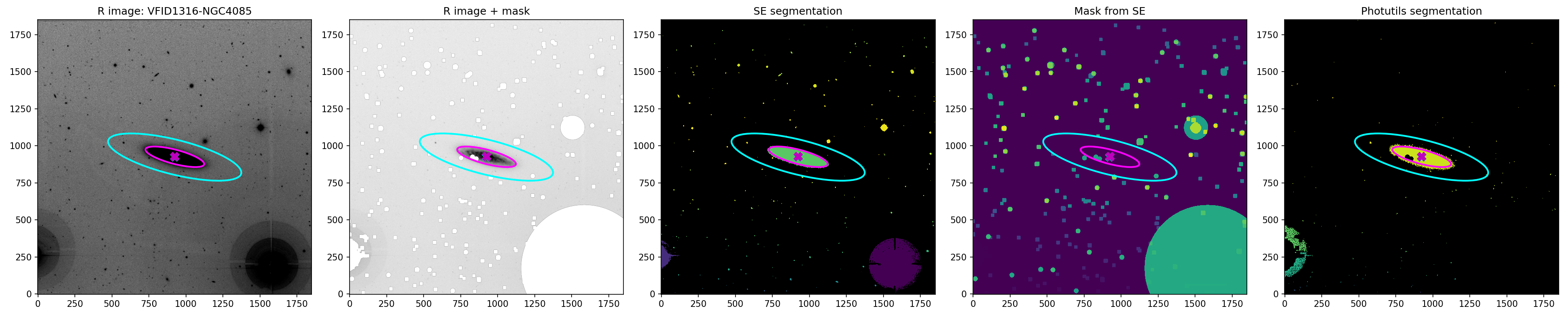

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.02 | 0.05 | ● | ● | ● | -- | -- | -- | 0.06 | 0.06 |
| HAPY Mask |
|---|
 |
Elliptical Photometry

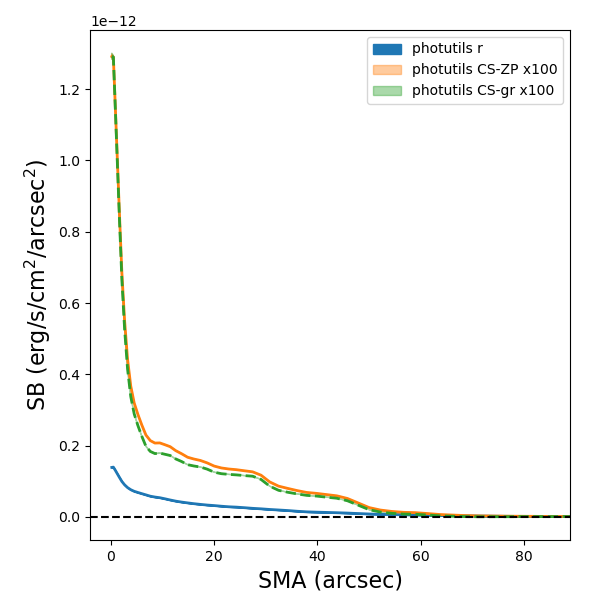

| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 12.15 | 12.13 | 12.13 | 12.11 | 12.01 | 12.16 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 1.94e-12 | 1.83e-12 | 1.86e-12 | 1.87e-12 | 0.45 | 164.9 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 69 | 69 | 263 | 210 | ● | 1 | 0.12 | 0.92 | 0.14 | 0.26 | 0.33 | 1.15 | 0.36 | 12.1 | 15.8 | 63.8 | 1.5 |
| CS-GR | ok | 74 | 74 | 284 | 209 | ● | 1 | 0.11 | 0.96 | 0.13 | 0.24 | 0.32 | 1.26 | 0.34 | 11.9 | 15.4 | 64.0 | 1.5 |

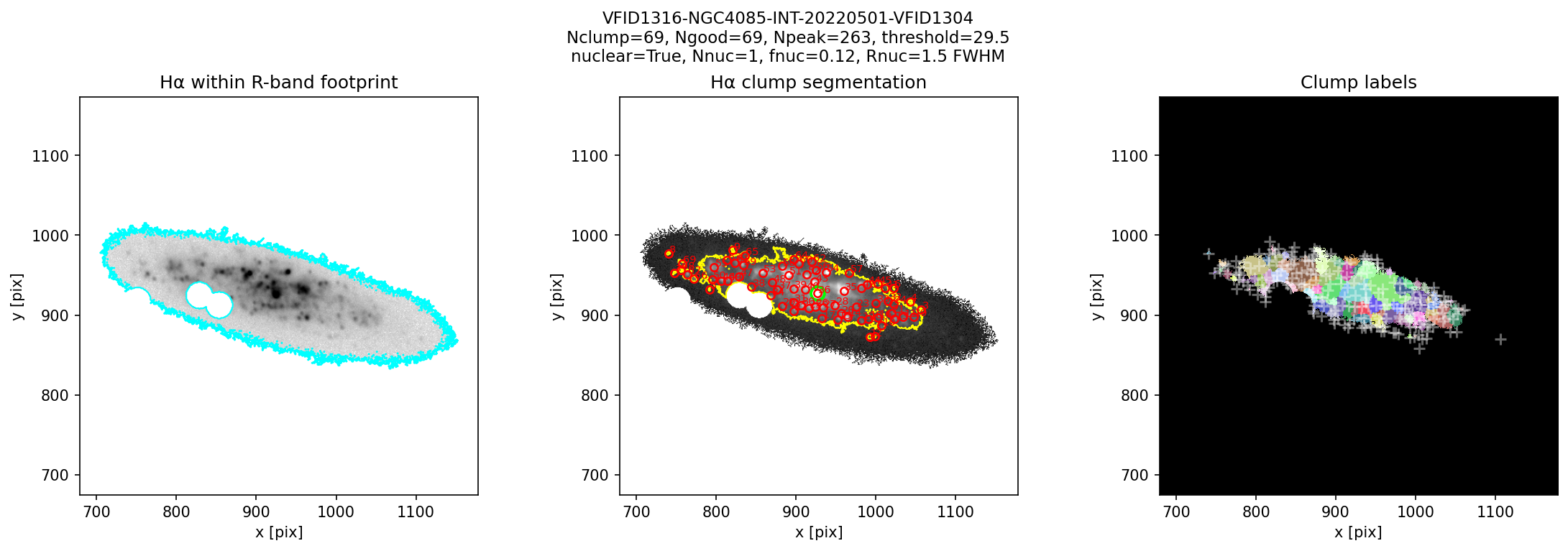

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.54 | -1.95 | 0.53 | -1.94 | 0.27 | 0.40 | 2.12 | ● |
| Hα | 0.54 | -1.44 | 0.70 | -1.42 | 0.73 | 0.45 | 1.84 | ● |
| CS-gr | -- | -1.37 | 0.79 | -1.29 | 0.89 | 0.47 | 1.75 | ● |
HAPY Morphology Diagnostic Plot
HAPY Morphology: VFID1316-NGC4085-INT-20220501-VFID1304-R-hapy-morphology-diag.png

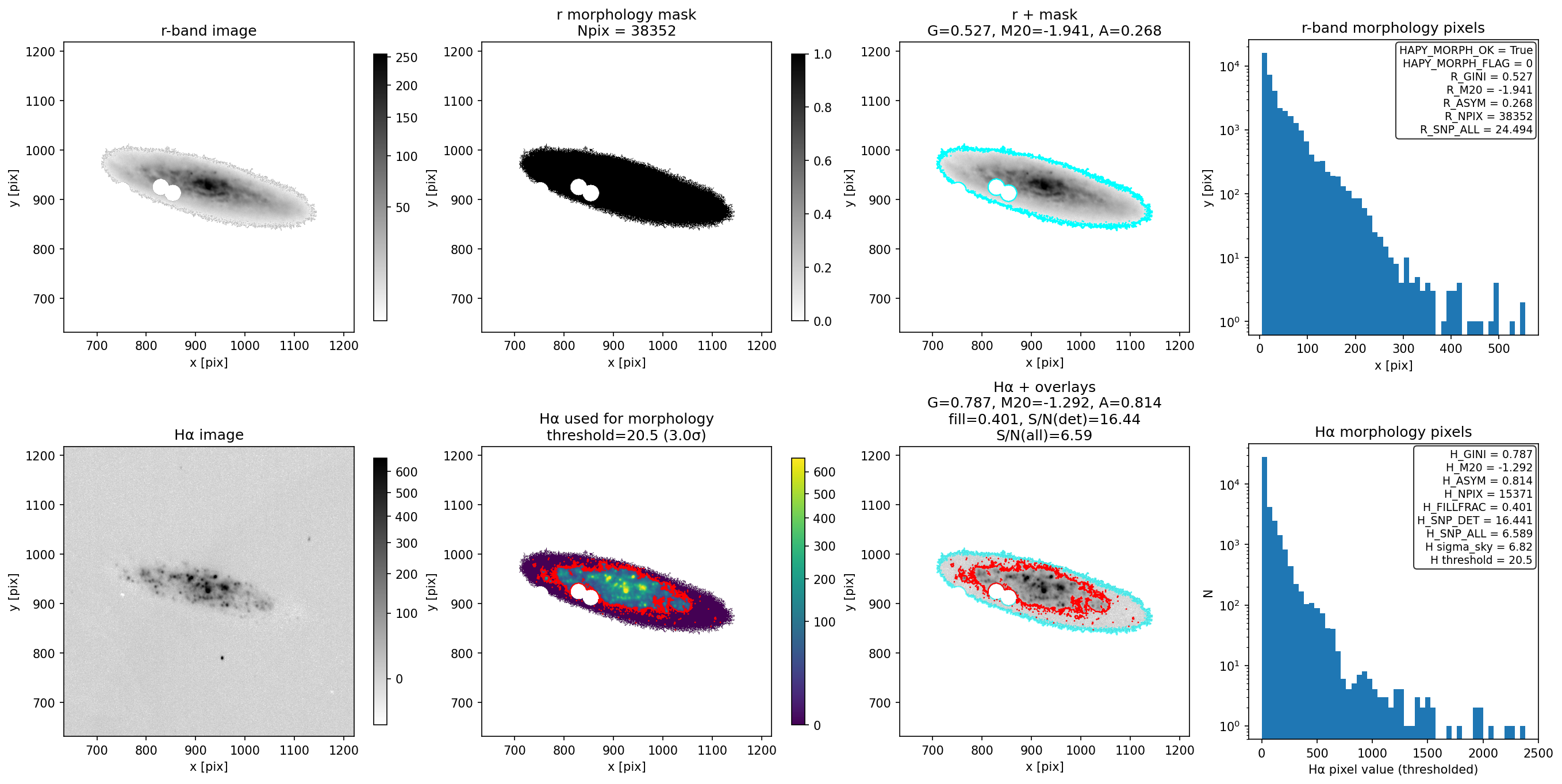

HAPY Morphology: VFID1316-NGC4085-INT-20220501-VFID1304-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 925.63 | 925.77 | 0.57 | -1.81 | 3.42 | 0.22 | 0.07 | -- | 0 | 2 |
| Hα | 917.85 | 932.09 | 0.56 | -1.16 | 2.73 | 0.47 | 0.13 | -- | 0 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID1316-NGC4085-INT-20220501-VFID1304-R-statmorph-r.pdf
Hα statmorph: VFID1316-NGC4085-INT-20220501-VFID1304-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 925.83 | 928.46 | 12.01 | -- | 1.07 | 0.26 | 75.8 | -0.02 | 2.36 | ● OK |
| CV | ● | 925.67 | 928.53 | 12.00 | -- | 1.12 | 0.25 | 75.8 | -0.02 | 2.35 | ● OK |
GALFIT r-band Modeling + Convolution
| Image | Model+Conv | Residual | Mask |
|---|
 |  |  |  |
