Image Statistics
| VFID | Galaxy | HAPY Version | Run Date | Telescope | Run | R FWHM
(arcsec) | Hα FWHM
(arcsec) | Filter Ratio | Filter Correction | Status | Stage |
|---|
| VFID0787 | NGC3838 | 0.4.1 | 2026-06-30 | BOK | 20210418-VFID0788 | 1.41 | 1.67 | -- | 1.09 | ok | done |
Pipeline Status
| PSF | Mask | Photometry | HAPY Morph | HAPY Morph Flag | R Profile | Hα Profile | R Statmorph | Hα Statmorph | GALFIT NC | GALFIT CV |
|---|
| ● | ● | ● | ● | 0 | ● | ● | ● | ● | ● | ● |

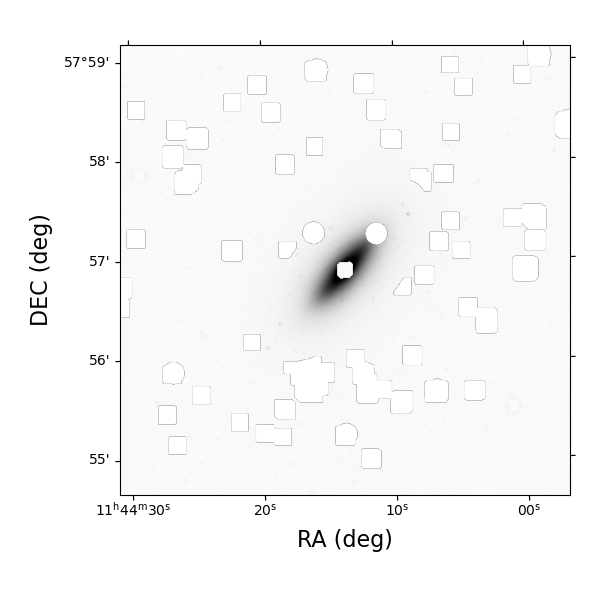

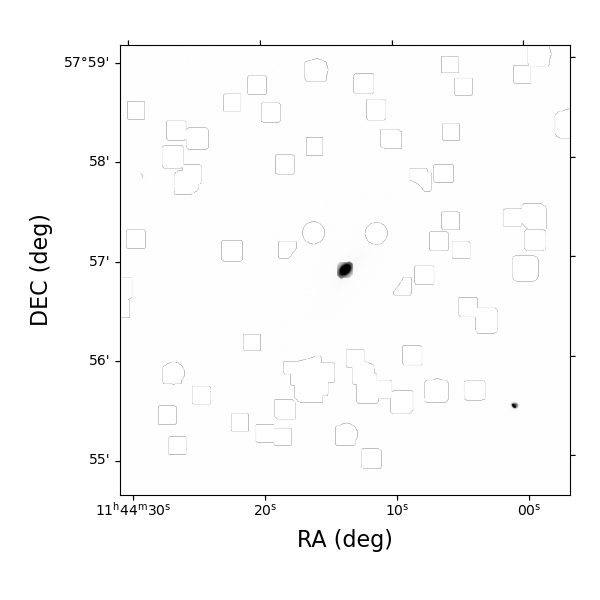

Hα Images
| Legacy grz | R-band Image | Hα+Cont | CS from ZP | CS-gr scale=0.94 |
|---|
 |  |  |  | |

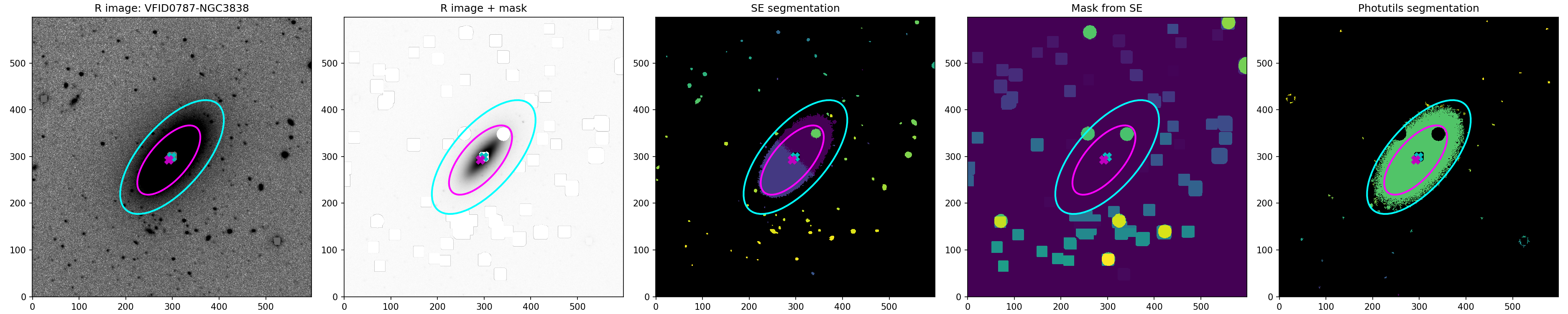

Mask Diagnostics
| ELL0 Maskfrac | Phot Ell Maskfrac | ELL0 Mask Warn | Ell mismatch | Bright Star Flag | BS Dist | BS Mask Rad | BS Mag | R Prof Maskfrac | H Prof Maskfrac |
|---|
| 0.04 | 0.06 | ● | ● | ● | -- | -- | -- | 0.14 | 0.14 |

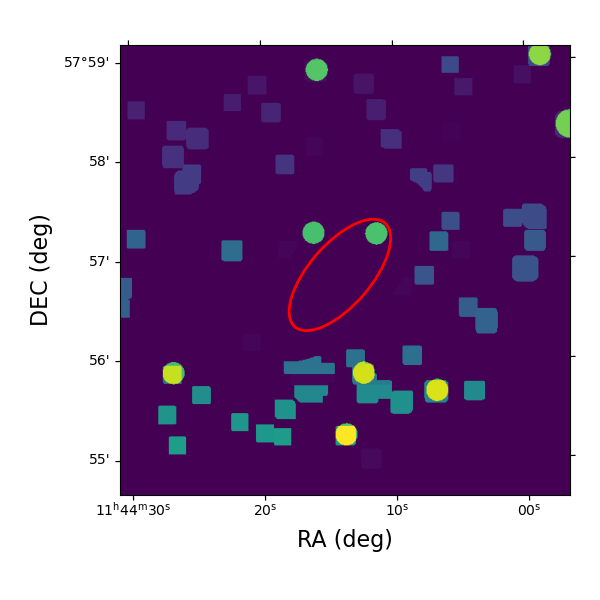

| HAPY Mask |
|---|
 |

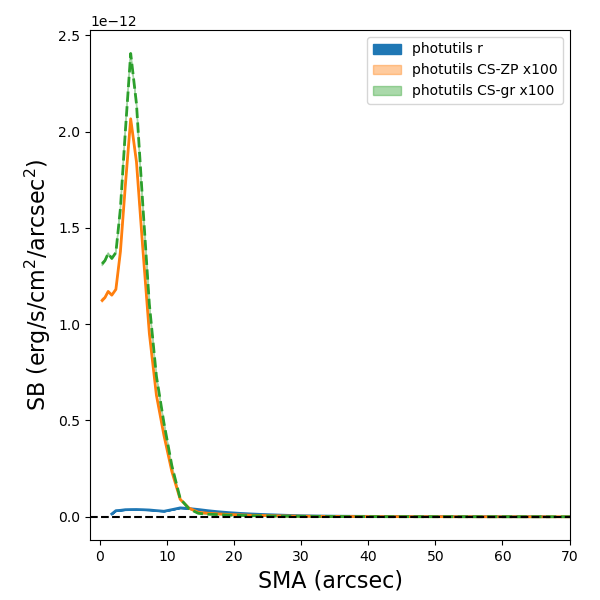

Elliptical Photometry
| Enclosed Flux | Enclosed Magnitude | Surface Brightness Linear | Surface Brightness Log | Surface Brightness Mag |
|---|
 |  |  |  |  |
R-band Magnitudes / Flux Summaries
| R24 | R25 iso | R25.5 | Petro | GALFIT | Segment |
|---|
| 20.81 | 20.81 | 25.74 | 12.71 | 13.02 | 12.72 |
Hα Flux / Size Summaries
| Hα Tot Flux | Hα Iso 5e-17 | Hα Iso 1.7e-17 | Hα R24 Flux | Hα C30(R24) | Hα Max Det Radius |
|---|
| 1.64e-12 | 1.60e-12 | 1.62e-12 | 3.89e-14 | 0.10 | 69.8 |
Hα Clump Analysis
| Image | Status | N clump | N good | N peak | N peak in clumps | Nuclear? | N nuclear | Nuc flux frac | Clump flux frac | Bright frac | Top2 frac | Top3 frac | Bright/2nd | Area frac | R bright
(arcsec) | R flux-wt
(arcsec) | R max
(arcsec) | Nuc radius
(FWHM) |
|---|
| CS-ZP | ok | 26 | 26 | 196 | 88 | ● | 0 | 0.00 | 0.70 | 0.50 | 0.72 | 0.83 | 2.17 | 0.11 | 8.8 | 9.8 | 22.9 | 1.5 |
| CS-GR | ok | 28 | 28 | 189 | 71 | ● | 0 | 0.00 | 0.60 | 0.39 | 0.56 | 0.65 | 2.32 | 0.07 | 8.0 | 9.1 | 21.4 | 1.5 |

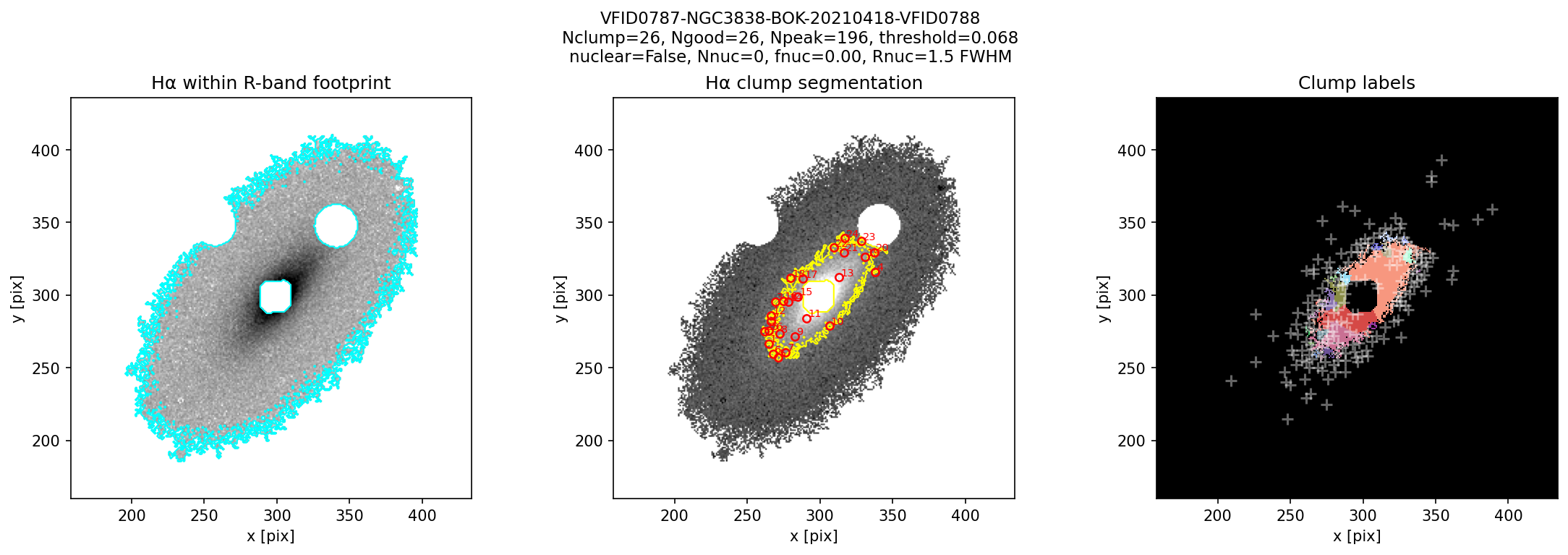

| HAPY Hα Clump Diagnostic |
|---|
 |
| HAPY Hα Clump Diagnostic |
|---|
 |
Morphology / Profile Summary
| Band | Phot Gini | Phot M20 | HAPY Gini | HAPY M20 | Asym | C30 | Petro Con | Profile OK |
|---|
| r | 0.72 | -1.43 | 0.64 | -1.23 | 0.12 | 0.00 | 2.31 | ● |
| Hα | 0.41 | -1.58 | 0.91 | -0.94 | 1.28 | 0.10 | 1.74 | ● |
| CS-gr | -- | -1.65 | 0.93 | -1.03 | 2.15 | 0.10 | 1.69 | ● |
HAPY Morphology Diagnostic Plot

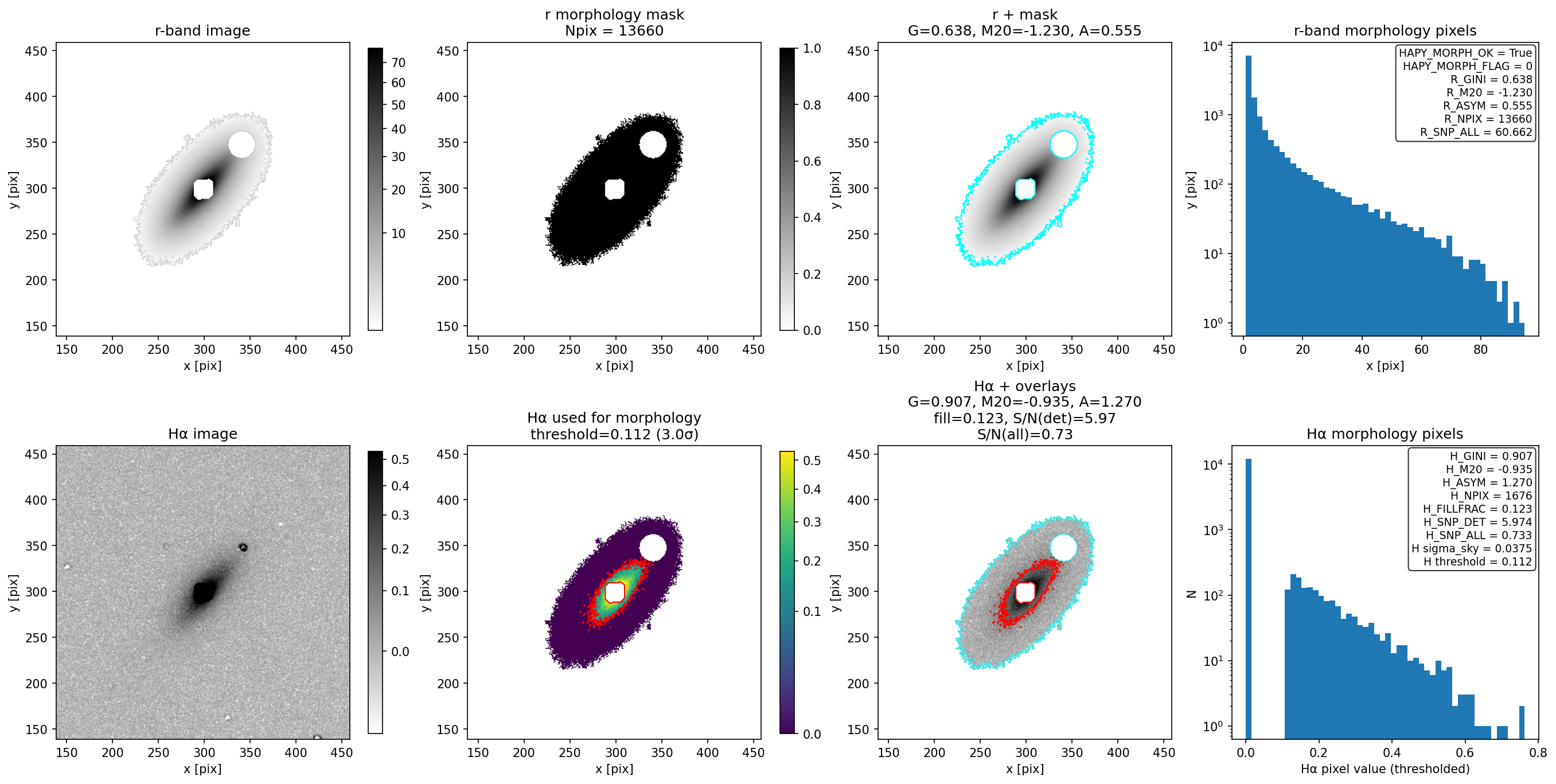

HAPY Morphology: VFID0787-NGC3838-BOK-20210418-VFID0788-R-hapy-morphology-diag.png

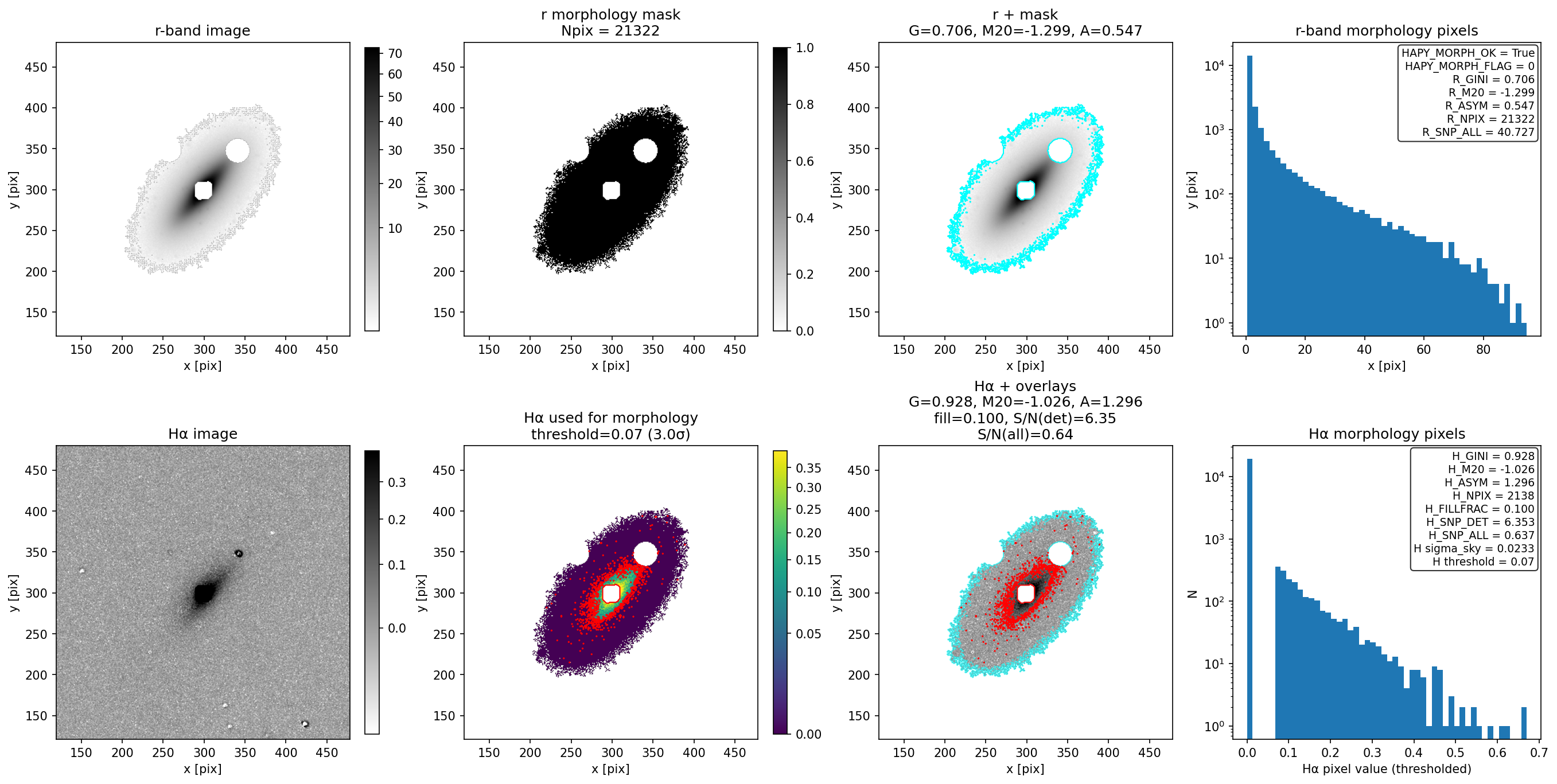

HAPY Morphology: VFID0787-NGC3838-BOK-20210418-VFID0788-R-csgr-hapy-morphology-diag.png
Statmorph Parameters
| Band | XC | YC | Gini | M20 | C | A | S | Rhalf | SM FLAG | Sersic FLAG |
|---|
| r | 297.92 | 298.39 | 0.56 | -1.22 | 2.12 | 0.03 | 0.05 | -- | 2 | 0 |
| Hα | 298.75 | 297.89 | 0.42 | -1.71 | 2.60 | 0.08 | 0.06 | -- | 1 | 0 |
Statmorph Diagnostic PDFs
r-band statmorph: VFID0787-NGC3838-BOK-20210418-VFID0788-R-statmorph-r.pdf
Hα statmorph: VFID0787-NGC3838-BOK-20210418-VFID0788-CS-ZP-statmorph-ha.pdf
GALFIT r-band Modeling - No Convolution
GALFIT Sersic Parameters
| Fit | Status | XC | YC | MAG | RE | N | BA | PA | SKY | CHI2NU | NUMERR |
|---|
| NC | ● | 301.00 | 301.87 | 13.02 | -- | 0.27 | 0.36 | -40.4 | 0.06 | 67.29 | ● OK |
| CV | ● | -- | -- | -- | -- | -- | -- | -- | -- | -- | ● OK |
GALFIT r-band Modeling + Convolution
